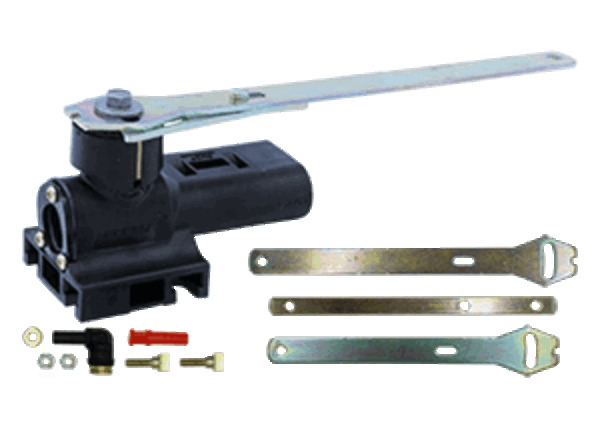

Height Control Valve 1500 Non-Dump 0.38" Composite/Steel Bracket Mount - 171.H01500UNOE

Height Control Valve 1500 Non-Dump 0.38" Composite/Steel Bracket Mount - 171.H01500UNOE

Part#: AAA900H01500UNOE

Features and Benefits

Height control valve kit of the 1500 Non-Dump model for air suspension height regulation
Non-dump valve design for continuous ride height control without dump-down venting function
Bracket mount type for direct bracket attachment at compatible chassis mounting positions
Port size on all ports at 3/8" for accurate air line OD match at the valve body
Kit depth dimension of 14.6" for correct valve body clearance in compatible mounting positions
Composite and steel body construction for durable, corrosion-resistant valve kit performance

Select Alternative Part #

171.H01500UNOE

Warranty

Up to 3 years warranty

Please contact customer service to know more details

SPECIFICATIONS
INTERCHANGE
APPLICATION
DESCRIPTION

Body Material	Composite/Steel
Depth	14.60 in.
Model	1500 Non-Dump
Mount Type	Bracket Mount
Port Size (All Ports)	0.38 in.
Product Type	Height Control Valve
Weight	2.04 lbs.

Interchange

70623501
H01500TB
H01500UN

No data found.

The Height Control Valve kit features a composite and steel body with bracket mounting, engineered for reliable air-ride leveling on Heavy Duty commercial vehicle applications. Configured as a non-dump 1500 model, the kit delivers consistent ride regulation across a wide range of configurations.
