Kingpin Kit K122E 9.05" x 1.79" Steel Spiral No Ream With Axle Repair Sleeve - SKS12205
Part#: AAA40412205
Features and Benefits
- Bushing type of Steel Spiral No Ream Kit for the king pin kit bushing construction
- Kingpin dimensions of 9.05" x 1.794" for correct pin length and diameter fitment

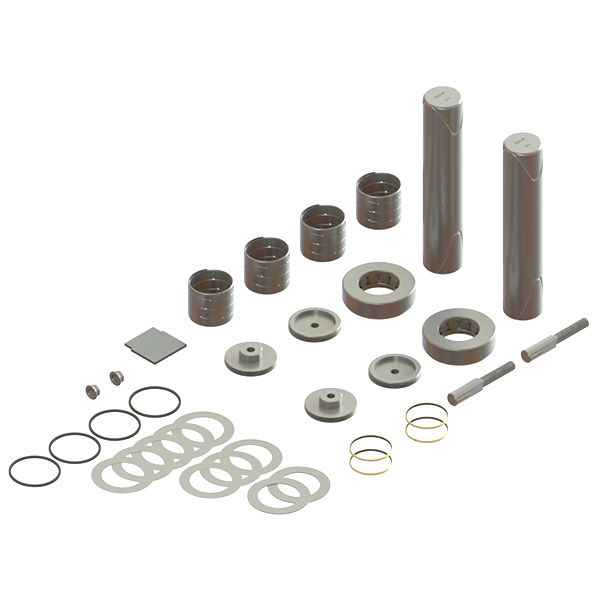

- Kit contents of King Pin (2); Bushing (4) for a complete king pin rebuild solution
- Thrust bearing designation of 182 (2) for the king pin kit thrust component
- Lock pin designation of 122E (2) for the king pin kit locking component
- Seal kit designation of 122E-Con (1) for the king pin kit sealing component
Select Alternative Part #
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Axle Repair Sleeve | 122E Available For Sks12205 Kit |
|---|---|
| Bushing Type | Steel Spiral No Ream Kit |
| End Cap | 122E (4) |
| Included Components | King Pin (2) |
| Included Components | Bushing (4) |
| Kingpin Dimensions | 9.05 in. x 1.79 in. |
| Lock Pin | 122E (2) |
| Seal Kit | 122E-Con (1) |
| Shim and Hardware Kit | 122E(1) |
| Thrust Bearing | 182 (2) |
| Interchange |
|---|
| 300293 |
| 300297 |
| 306K122E |
| 328342 |
| 328344 |
| 450286B |
| 460286E |
| 5012205 |
| 7012205 |
| 85106184 |
| G200281 |
| G201326 |
| K122E |
| KB850 |
| R200281 |
| R201326 |
| R202001 |
| R203029 |
| SKS3011 |
No data found.
The King Pin kit is a K122E design featuring a steel spiral no-ream bushing type, engineered for reliable steering axle articulation on Heavy Duty commercial vehicle applications. Measuring 9.05" x 1.794" dimensions, the kit delivers consistent structural stability and dependable performance across configurations.
