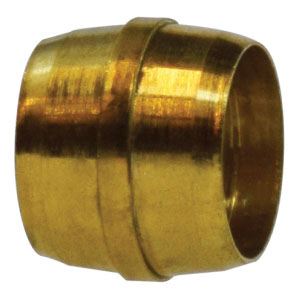

Air Brake Fitting 0.25" Tube 7/16-24 - 38001

Air Brake Fitting 0.25" Tube 7/16-24 - 38001

Part#: AAA41938001

Features and Benefits

Air Brake Sleeve type for accurate product classification during service
Material of Brass construction for the product body
Thread size of 7/16-24 for correct fastener thread engagement
Connection Size 1 of 0.25" for correct tubing OD match at the fitting port
Connection Size 2 of 0.25" for correct tubing OD match at the fitting port
Connection Type of Tube and Tube for the fitting port connection style

Select Alternative Part #

38001

Warranty

Up to 3 years warranty

Please contact customer service to know more details

SPECIFICATIONS
INTERCHANGE
APPLICATION
DESCRIPTION

Conformance	Meets specifications and standards of SAE and DOT FMVSS 571,106
Connection Size 1	0.25 in.
Connection Size 2	0.25 in.
Connection Type	Tube\|Tube
Connection Type 1	Tube OD
Connection Type 2	Tube OD
DESIGN	DOT-Approved, Leak-Free Construction
Fitting Type	Sleeve
Material	Brass for long lasting durability, corrosion resistance
SAE Standard	SAE# 100115
Pressure Rating	150 psi
Shape	Sleeve
Temperature Rating	-40° F to +200° F (-40° C to +93° C)
Thread Size	7/16-24
Tolerance	+/- .02 on all dimensions
Tube Size	0.25 in.
Type	Air Brake Sleeve
Vibration Resistance	Fair

Interchange

00460-04
121157.33999999999651
1360-4
1460-4
14604
1460x4
16340
4-460-F-04
460-4
51835K281
60NAB-4
60NAB4
60NABX4
60NTA-4
85003
90650
960-4
D1460-4
D14604
N60-4
NT60-4
NY60-4
S760AB-4
TH260C

No data found.

The Air Brake Fitting is a sleeve design constructed from brass with a 0.25" tube connection with a 7/16-24 thread size, engineered for reliable DOT-approved air line joining on Heavy Duty commercial vehicle applications. Rated to 150 psi, the component delivers consistent sealing across a wide range of configurations.
