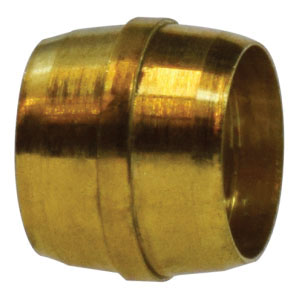

Air Brake Fitting 0.50" Tube 11/16-20 - 38003

Air Brake Fitting 0.50" Tube 11/16-20 - 38003

Part#: AAA41938003

Features and Benefits

Air Brake Sleeve type for accurate product classification during service
Material of Brass construction for the product body
Thread size of 11/16-20 for correct fastener thread engagement
Connection Size 1 of 0.50" for correct tubing OD match at the fitting port
Connection Size 2 of 0.50" for correct tubing OD match at the fitting port
Connection Type of Tube and Tube for the fitting port connection style

Select Alternative Part #

38003

Warranty

Up to 3 years warranty

Please contact customer service to know more details

SPECIFICATIONS
INTERCHANGE
APPLICATION
DESCRIPTION

Conformance	Meets specifications and standards of SAE and DOT FMVSS 571,106
Connection Size 1	0.50 in.
Connection Size 2	0.50 in.
Connection Type	Tube\|Tube
Connection Type 1	Tube OD
Connection Type 2	Tube OD
DESIGN	DOT-Approved, Leak-Free Construction
Fitting Type	Sleeve
Material	Brass for long lasting durability, corrosion resistance
SAE Standard	SAE# 100115
Pressure Rating	150 psi
Shape	Sleeve
Temperature Rating	-40° F to +200° F (-40° C to +93° C)
Thread Size	11/16-20
Tolerance	+/- .02 on all dimensions
Tube Size	0.50 in.
Type	Air Brake Sleeve
Vibration Resistance	Fair

Interchange

00460-08
121157.610000000001
1360-8
1460-8
14608
1460x8
1460x8.
16380
4-460-F-08
460-8
51835K283
60NAB-8
60NAB8
60NABX8
60NTA-8
85005
90652
960-8
960-8C
D1460-8
D14608
N60-8
NT60-8
NY60-8
S760AB-8
S760AB-8C
TH260F

No data found.

The Air Brake Fitting is a sleeve design constructed from brass with a 0.50" tube connection with a 11/16-20 thread size, engineered for reliable DOT-approved air line joining on Heavy Duty commercial vehicle applications. Rated to 150 psi, the component delivers consistent sealing across a wide range of configurations.
