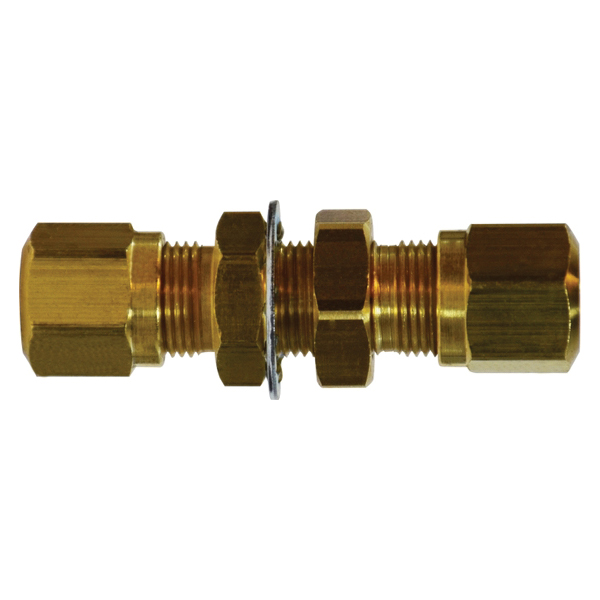

Air Brake Fitting 0.50" Tube 11/16-20 - 38030

Air Brake Fitting 0.50" Tube 11/16-20 - 38030

Part#: AAA41938030

Features and Benefits

Air Brake Bulkhead Union type for accurate product classification during service
Material of Brass construction for the product body
Thread size of 11/16-20 for correct fastener thread engagement
Connection Size 1 of 0.50" for correct tubing OD match at the fitting port
Connection Size 2 of 0.50" for correct tubing OD match at the fitting port
Connection Type of Tube and Tube for the fitting port connection style

Select Alternative Part #

38030

Warranty

Up to 3 years warranty

Please contact customer service to know more details

SPECIFICATIONS
INTERCHANGE
APPLICATION
DESCRIPTION

Conformance	Meets specifications and standards of SAE and DOT FMVSS 571,106
Connection Size 1	0.50 in.
Connection Size 2	0.50 in.
Connection Type	Tube\|Tube
Connection Type 1	Tube OD
Connection Type 2	Tube OD
DESIGN	Corrosion-Resistant Brass Construction
Fitting Type	Union
Material	Brass for long lasting reliability and strength, corrosion resistance
Pressure Rating	150 psi
Shape	Union
Standard	DOT
Temperature Rating	-40° F to +200° F (-40° C to +93° C)
Thread Size	11/16-20
Tolerance	+/- .02 on all dimensions
Tube Size	0.50 in.
Tubing Type	Nylon Tubing
Type	Air Brake Bulkhead Union
Vibration Resistance	Fair

Interchange

00483-08
1377-8
1474-8
1474x8
1477-8
14778
16208
475-8
62BNABx8
62NABH-8
62NBH-8
62NBH8
669314028591
85113
90883
974-8
D1477-8
D14778
P62NBH-8
S774AB-8
TH262LF

No data found.

The Air Brake Fitting is a bulkhead union design constructed from brass with a 0.50" tube connection with a 11/16-20 thread size, engineered for reliable panel-mounted air line joining on Heavy Duty commercial vehicle applications. Rated to 150 psi, the component delivers consistent sealing across configurations.
