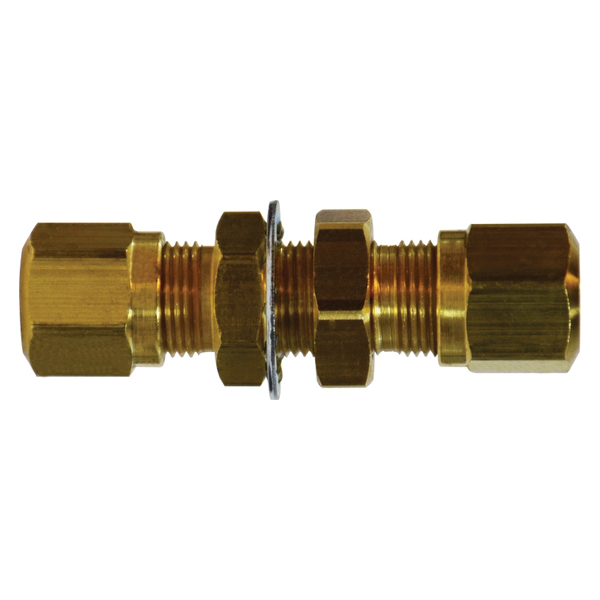

Air Brake Fitting 0.25" Ca360 Brass Tube 7/16-24 - 38028
Part#: AAA41938028
Features and Benefits
- Air Brake Bulkhead Union type for accurate product classification during service
- Material of Ca360 Brass construction for the product body
- Thread size of 7/16-24 for correct fastener thread engagement
- Connection Size 1 of 0.25" for correct tubing OD match at the fitting port
- Connection Size 2 of 0.25" for correct tubing OD match at the fitting port
- Connection Type of Tube and Tube for the fitting port connection style
Select Alternative Part #
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Certification | DOT |
|---|---|
| Conformance | Meets specifications and standards of SAE and DOT FMVSS 571,106 |
| Connection Size 1 | 0.25 in. |
| Connection Size 2 | 0.25 in. |
| Connection Type | Tube|Tube |
| Connection Type 1 | Tube OD |
| Connection Type 2 | Tube OD |
| Fitting Type | Union |
| Material | Ca360 Brass |
| Pressure Rating | 150 Max Psi |
| Shape | Union |
| Size | 1/4 |
| Temperature Rating | -40° F to +200° F (-40° C to +93° C) |
| Thread Size | 7/16-24 |
| Tolerance | +/- .02 on all dimensions |
| Tube Size | 0.25 in. |
| Type | Air Brake Bulkhead Union |
| Vibration Resistance | Fair resistance |
No data found.
No data found.
The Air Brake Fitting is a bulkhead union design constructed from brass with a 0.25" tube connection with a 7/16-24 thread size, engineered for reliable panel-mounted air line joining on Heavy Duty commercial vehicle applications. Rated to 150 psi, the component delivers consistent sealing across configurations.
