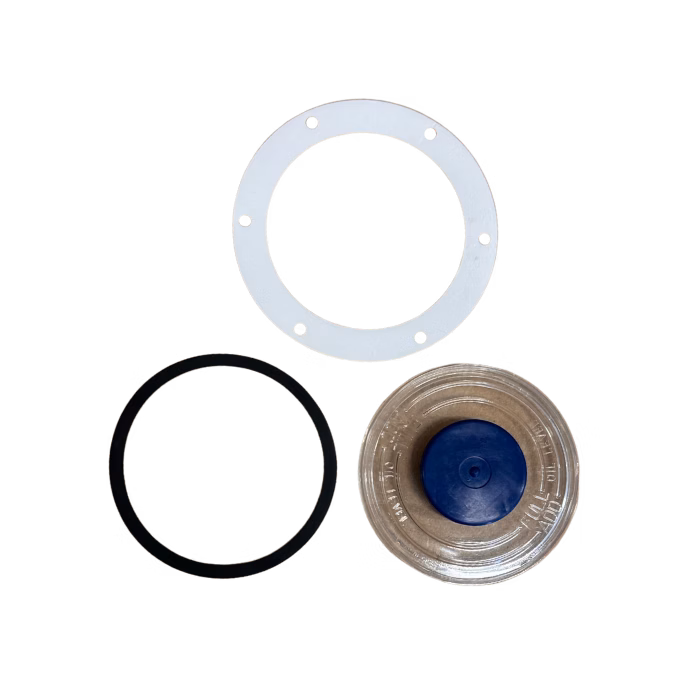

Hub Cap Window Kit Oil 3-0.50" Window - 180.10620
Part#: AAA41110620
Features and Benefits
- Oil bath hub cap window kit for replacement of inspection window components on commercial truck hubs
- Clear plastic inspection window at 3-0.50" diameter for visual oil level monitoring without cap removal
- Window center hole at 1-0.12" ID with rubber vent plug at 1-0.12" OD for pressure-balanced venting
- Gasket hole pitch at 5-0.50" on hub cap side with 3-0.88" on window ring for precise seating
- Kit in black and white window-ring gaskets (1 each) for dual-fitment compatibility across hub cap styles
- Window ring mounting on 3 holes for secure lens retention in oil bath hub cap applications
Select Alternative Part #
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Gasket Hole Pitch (hub cap) | 5-0.50 in. |
|---|---|
| Gasket Hole Pitch (window ring) | 3-0.88 in. |
| Kit Includes - Black window-ring gasket | qty 1 |
| Kit Includes - Clear plastic inspection window | 3-0.50 in. (1) |
| Kit Includes - Rubber vent plug | 1-0.12 in. OD (1) |
| Kit Includes - White window-ring gasket | qty 1 |
| Style | Oil Bath |
| Window Center Hole | 1-0.12 in. ID |
| Window Diameter | 3-0.50 in. |
| Interchange |
|---|
| 2249WK |
| 283109C1 |
| 359-5995 |
| 3595995 |
| 9009W |
| E-3595995 |
| S-E526 |
| S-E781 |
No data found.
The Hub Cap Window Kit replaces a damaged or clouded inspection window on TIREMAAX and compatible hub caps for Heavy Duty commercial vehicles. Clear polycarbonate construction allows visual oil level checks without removing the cap, supporting quick fleet maintenance.
