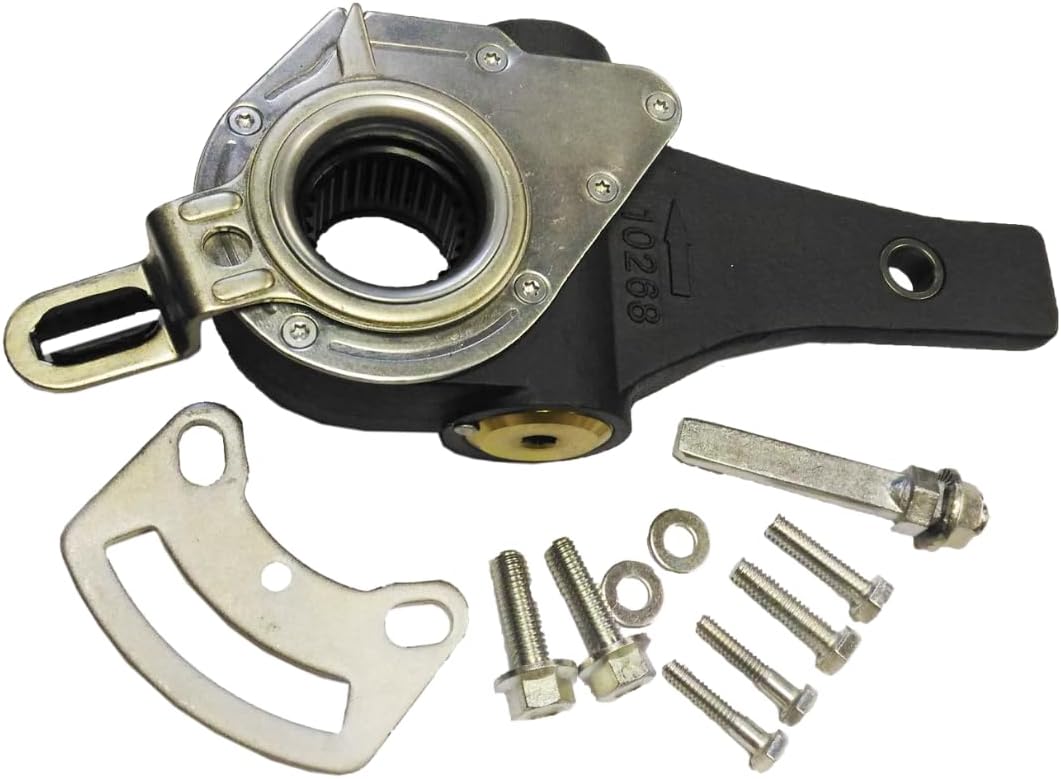

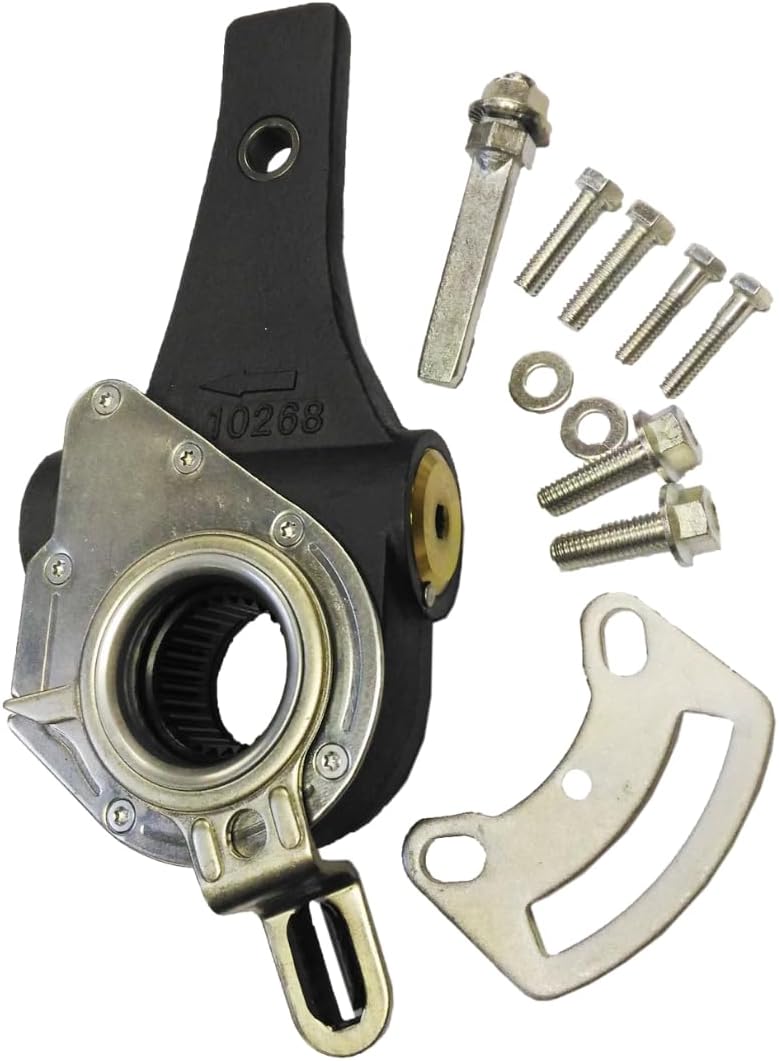

Automatic Slack Adjuster Trailer 28 Spline 1.50 - 133.2840"
Part#: AAA6011332840
Features and Benefits
- Trailer axle automatic slack adjuster for continuous brake clearance correction during service
- Clearance sensing mechanism corrects brake shoe position automatically as lining wears
- Unhanded configuration eliminates the need to stock separate left and right hand variants
- Spline interface provides positive torque transfer to the brake camshaft on trailer axles
- Unclevised arm end enables direct installation to the push rod without a separate clevis
- Arm length supports consistent push rod travel on standard 5.5" trailer brake configurations
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Weight | 8.20 |
|---|---|
| Arm Length | 5.50 in. |
| Slack Spline Diameter | 1.50 in. |
| Slack Spline Count | 28 |
| Application | Trailer |
| Type | Unhanded |
| Sensing Type | Clearance |
| Brake Size | 16.50 in. |
| Angle | 0 degrees |
| Bushing Inside Diameter | 0.50 in. |
| Clevis Type | Unclevised |
| Maximum Torque Rating | Less than 15 foot pounds |
| Interchange |
|---|
| 05668 |
| 1697569C91 |
| 3946257 |
| 40010211 |
| 40910683 |
| 4W8035 |
| 8235R806019A |
| ABPN42AS40010211 |
| FLT40010211 |
| FX1352840 |
| HRR806019A |
| MERR806019A |
| R806019A |
| ROR806019A |
| SA10211 |
| TDAR806019A |
| TW05668 |
The Slack Adjuster is an unhanded clearance-sensing design with a 5.5" arm, built for automatic adjustment on trailer axles of Heavy Duty commercial vehicles. Featuring an unclevised configuration and dependable spline engagement, the component ensures consistent stopping performance across a wide range of transport platforms.
