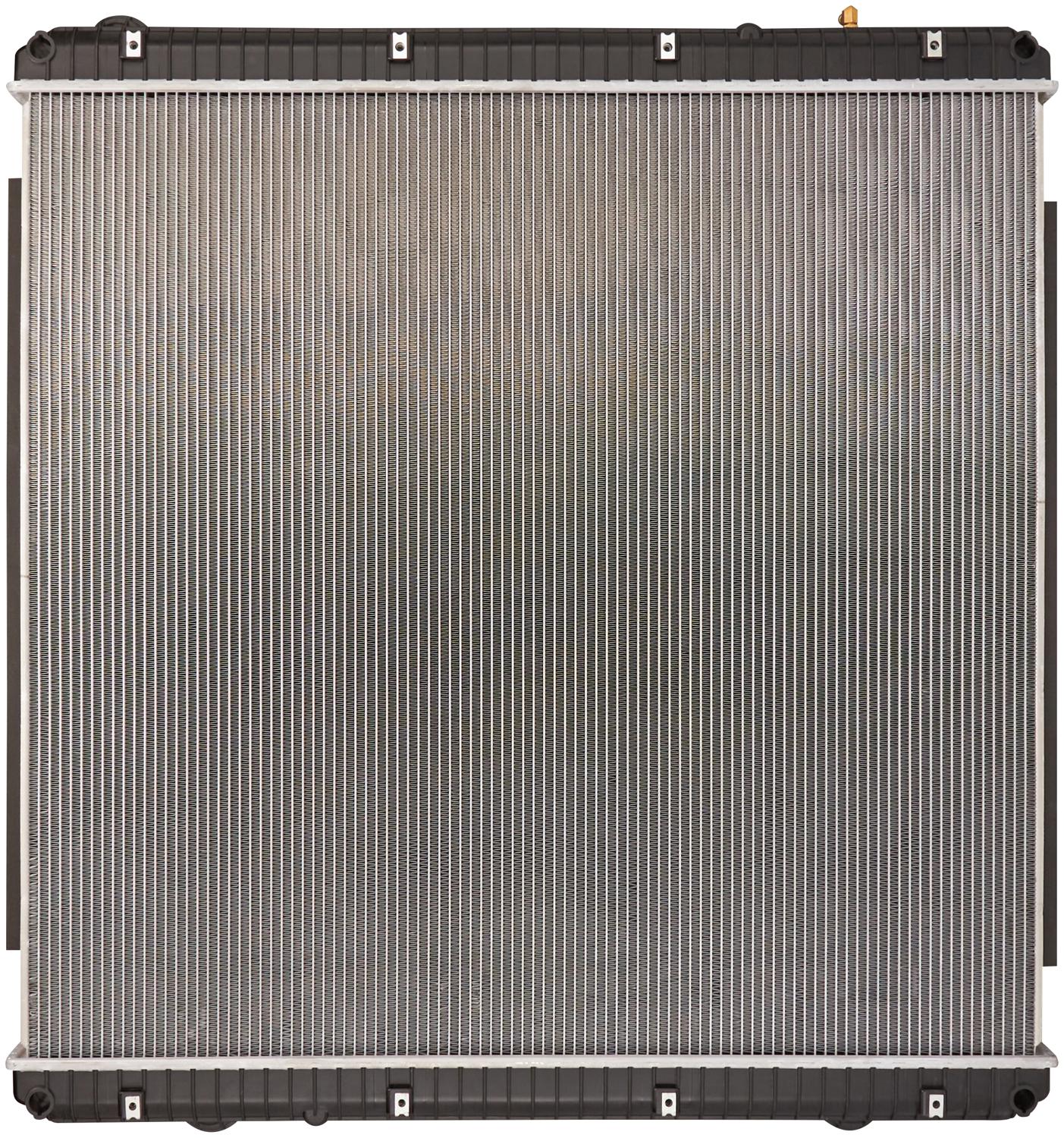

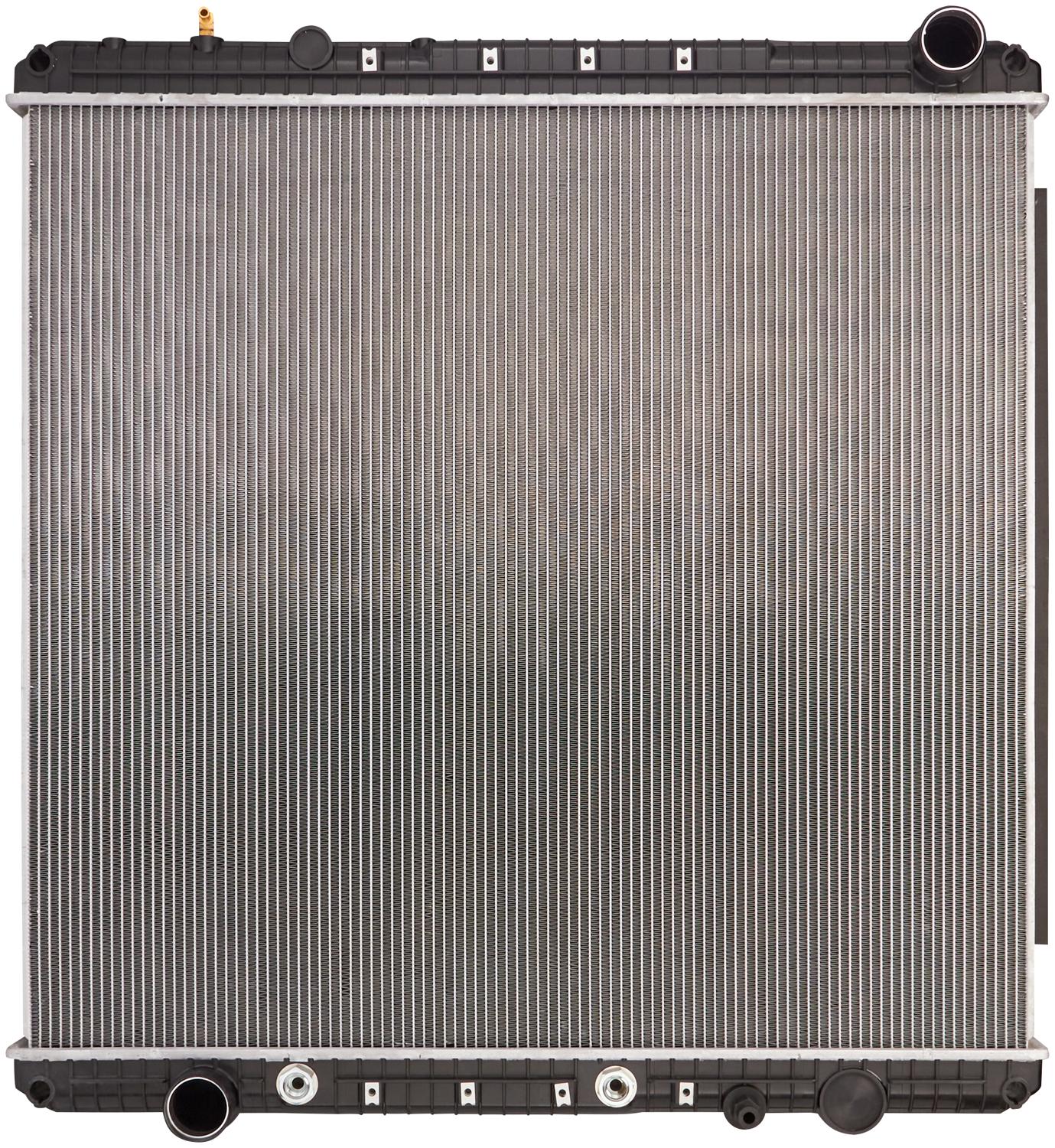

Radiator Downflow Aluminum Plastic Tank 2-1/2 in. Connection Frame Mount - 0437425PF / IAT0437425PF
Part#: AAA7237425RF
Features and Benefits
- Dual-row aluminum core engineered for reliable heat rejection on FRT P3 PU23 applications
- Integrated frame surround delivers a structurally complete module for direct bracket mounting
- Downflow design supports efficient vertical coolant movement through the full core height
- Plastic tanks accommodate thermal growth cycles while keeping the assembly lightweight
- Fan-side TOC alignment built to FRT P3 chassis specifications for accurate panel fitment
- Bolt, U-Clip, nut, and grommet kit supplies all hardware needed for a complete installation
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Core Material | Aluminum |
|---|---|
| Tank Material | Plastic |
| Type | Downflow |
| Row | 2 |
| Height | 35-3/4 in. |
| Width | 38-1/2 in. |
| Thickness | 2-3/16 in. |
| Inlet | 2-1/2 in. |
| Outlet | 2-1/2 in. |
| TOC | 12 in. Fan Side |
| Kit | 4x Bolts; 16x U-Clips; 4x Nuts; 12x Grommets |
| Interchange |
|---|
| 1A0210810001 |
| 1A0210810003 |
| 238647 |
| 238736 |
| 238794 |
| 238809 |
| 3A0580800001 |
| 3A0580800003 |
| 3A0580800005 |
| 3A0580800007 |
| 3A0580801 |
| 3E0137640001 |
| 3E0137640003 |
| 3E0137640005 |
| 3E0137640007 |
| 3S05808000003 |
| 3S0580800001 |
| 3S0580800003 |
| 3S0580800005 |
| 3S0580800007 |
| 3S0580801 |
| 3S0582180003 |
| 437425PF |
| 530675003 |
| 530990001 |
| 530990003 |
The Radiator features an aluminum core with a plastic tank, engineered for dependable cooling performance on Freightliner P3 Heavy Duty commercial vehicles. Supplied with a frame for complete fitment, the unit delivers consistent thermal management and reliable operation, and includes a hardware installation kit.
