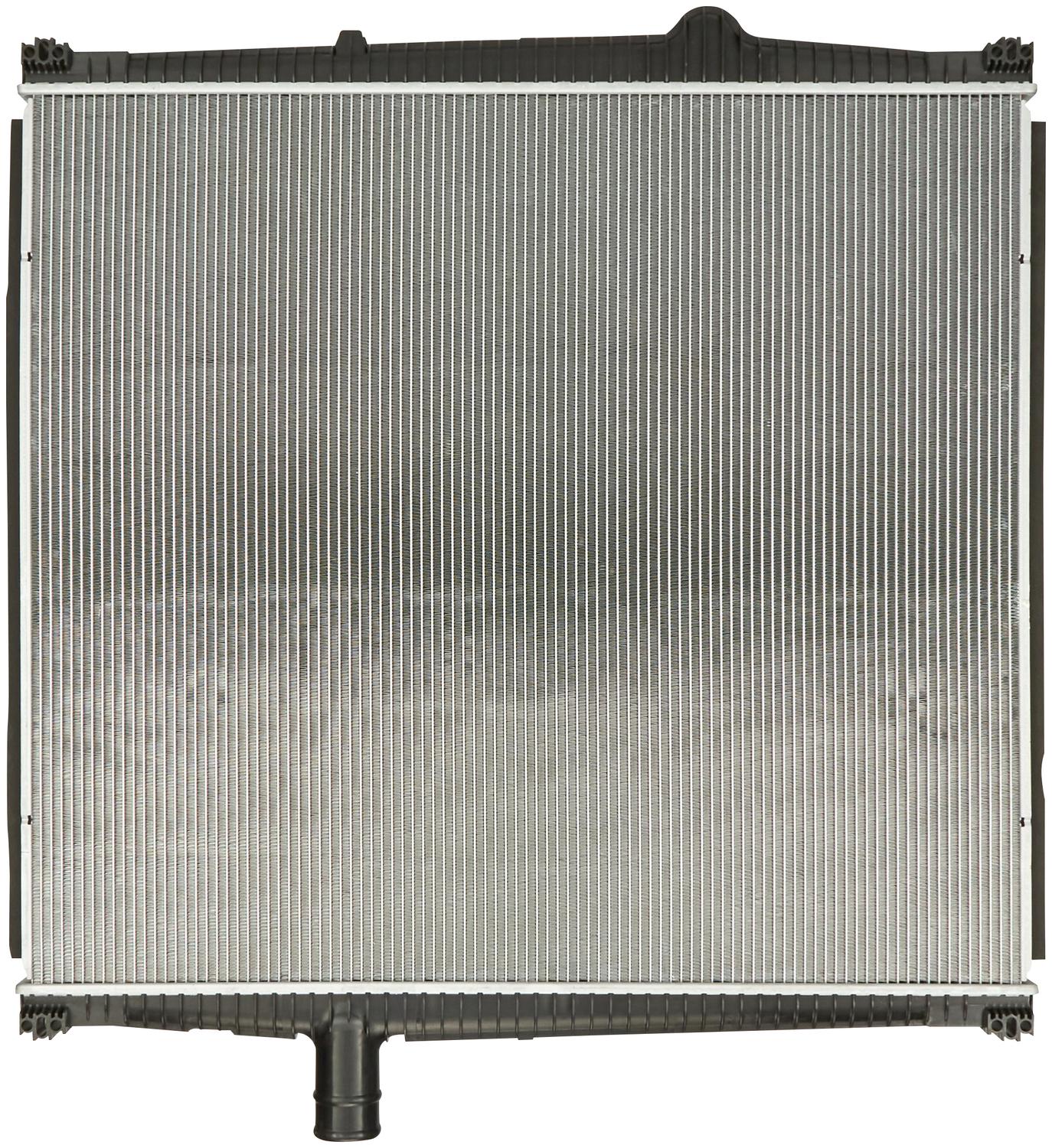

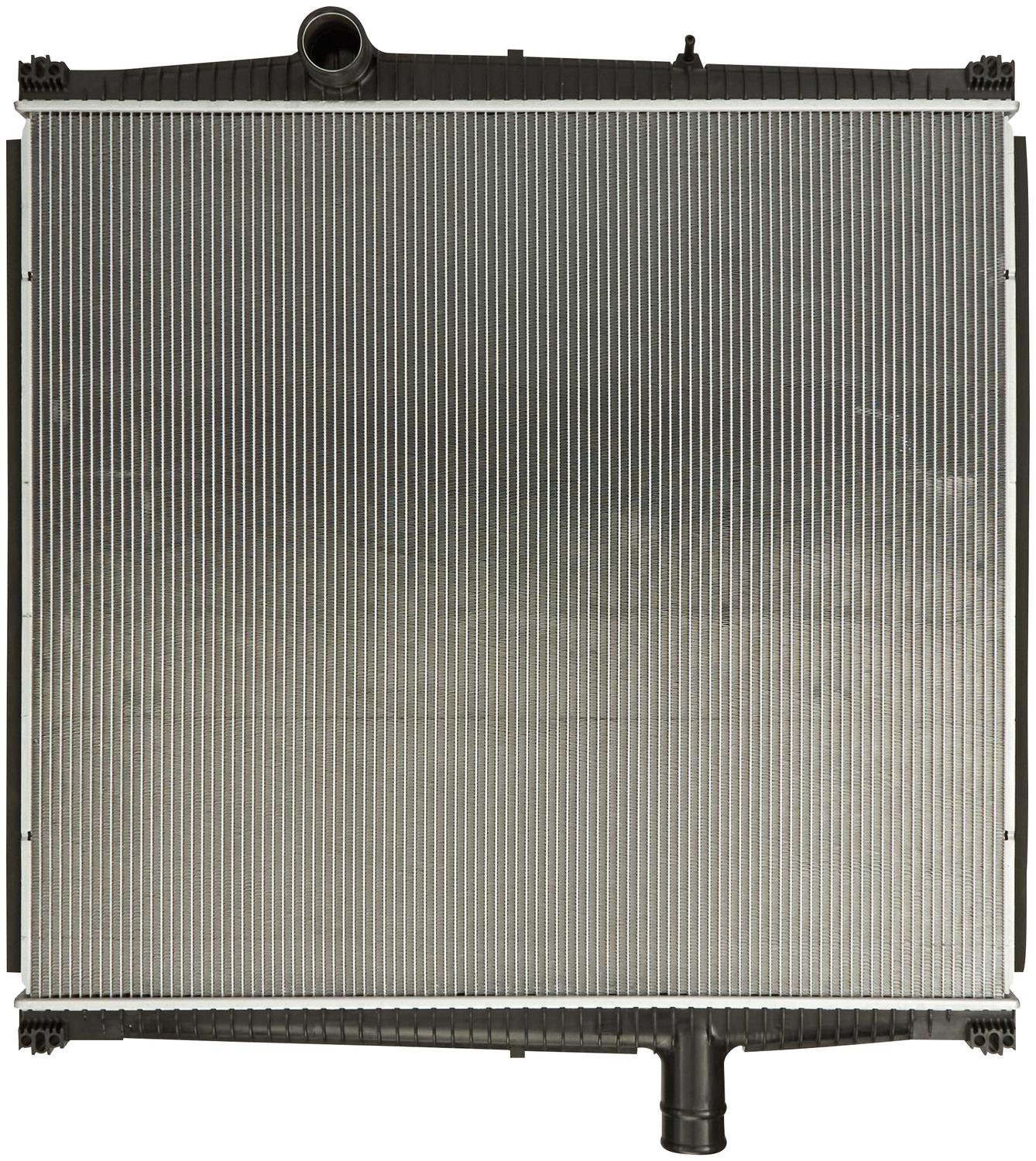

Radiator Downflow Aluminum Plastic Tank 2-1/2 in. Connection - 0437565P
Part#: AAA7237565R
Features and Benefits
- Dual-row downflow core delivers reliable heat dissipation on both Kenworth and Peterbilt
- Slim core depth keeps the cooling stack compact for tight front-end radiator bay
- Aluminum core pairs with plastic tanks for efficient heat transfer and lightweight
- Downflow configuration routes coolant evenly for consistent temperature regulation across
- Matched coolant ports support direct hose connection on kw and pb coolant circuit layouts
- Bolts, nuts, clevis pins, and clevis clips for a secure, tool-friendly installation
Select Alternative Part #
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Core Material | Aluminum |
|---|---|
| Tank Material | Plastic |
| Type | Downflow |
| Row | 2.00 |
| Height | 34-1/16 in. |
| Width | 37-11/16 in. |
| Thickness | 1-9/16 in. |
| Inlet | 2-1/2 in. |
| Outlet | 2-1/2 in. |
| Radiator frames included | No |
| Interchange |
|---|
| 238853 |
| 238869 |
| 2401749 |
| 29583SS |
| 3818108 |
| 437565PF |
| APL2389000 |
| ATP29583 |
| ATX29583 |
| F3112541101211 |
| F3112541111211 |
| GPOHK179001 |
| GTPHK179001 |
| GTS29583 |
| HDC011249PA |
| HK179001 |
| HK179001HTP |
| HK179001KTP |
| HK179001RC |
| HK179100 |
| MPGS29583 |
| PET101 |
| PPTPHK179001 |
| PSHK179001 |
| S29583 |
| TFHK179001 |
| TR7565P |
| TS437565P |
| VIPHK179001 |
| VTC95832 |
| XD94333 |
| Year | Make | Model | Engine |
|---|---|---|---|
| 2026 | KENWORTH | T880 | L6 10.8L |
| 2026 | KENWORTH | T880 | L6 12.9L |
| 2026 | KENWORTH | T880 | L6 14.9L |
| 2026 | KENWORTH | T880 | L6 8.9L |
| 2025 | KENWORTH | T880 | 6 11.9L |
| 2025 | KENWORTH | T880 | 6 12.9L |
| 2025 | KENWORTH | T880 | L6 10.8L |
| 2025 | KENWORTH | T880 | L6 12.9L |
| 2025 | KENWORTH | T880 | L6 14.9L |
| 2025 | KENWORTH | T880 | L6 8.9L |
| 2024 | KENWORTH | T880 | 6 11.9L |
| 2024 | KENWORTH | T880 | 6 12.9L |
| 2024 | KENWORTH | T880 | L6 10.8L |
| 2024 | KENWORTH | T880 | L6 12.9L |
| 2024 | KENWORTH | T880 | L6 14.9L |
| 2024 | KENWORTH | T880 | L6 8.9L |
| 2023 | KENWORTH | T880 | 6 11.9L |
| 2023 | KENWORTH | T880 | 6 12.9L |
| 2023 | KENWORTH | T880 | L6 10.8L |
| 2023 | KENWORTH | T880 | L6 12.9L |
| 2023 | KENWORTH | T880 | L6 14.9L |
| 2023 | KENWORTH | T880 | L6 8.9L |
| 2022 | KENWORTH | T880 | 6 11.9L |
| 2022 | KENWORTH | T880 | 6 12.9L |
| 2022 | KENWORTH | T880 | L6 10.8L |
| 2022 | KENWORTH | T880 | L6 12.9L |
| 2022 | KENWORTH | T880 | L6 14.9L |
| 2022 | KENWORTH | T880 | L6 8.9L |
| 2021 | KENWORTH | T680 | 6 11.9L |
| 2021 | KENWORTH | T680 | 6 12.9L |
| 2021 | KENWORTH | T680 | L6 10.8L |
| 2021 | KENWORTH | T680 | L6 12.9L |
| 2021 | KENWORTH | T680 | L6 14.9L |
| 2021 | KENWORTH | T680 | L6 8.9L |
| 2021 | PETERBILT | 579 | 6 11.9L |
| 2021 | PETERBILT | 579 | 6 12.9L |
| 2021 | PETERBILT | 579 | L6 10.8L |
| 2021 | PETERBILT | 579 | L6 14.9L |
| 2021 | PETERBILT | 579 | L6 8.9L |
| 2020 | KENWORTH | T680 | 6 11.9L |
| 2020 | KENWORTH | T680 | 6 12.9L |
| 2020 | KENWORTH | T680 | L6 10.8L |
| 2020 | KENWORTH | T680 | L6 12.9L |
| 2020 | KENWORTH | T680 | L6 14.9L |
| 2020 | KENWORTH | T680 | L6 8.9L |
| 2020 | PETERBILT | 579 | 6 11.9L |
| 2020 | PETERBILT | 579 | 6 12.9L |
| 2020 | PETERBILT | 579 | L6 10.8L |
| 2020 | PETERBILT | 579 | L6 14.9L |
| 2020 | PETERBILT | 579 | L6 8.9L |
| 2019 | KENWORTH | T680 | 6 11.9L |
| 2019 | KENWORTH | T680 | 6 12.9L |
| 2019 | KENWORTH | T680 | L6 10.8L |
| 2019 | KENWORTH | T680 | L6 12.9L |
| 2019 | KENWORTH | T680 | L6 14.9L |
| 2019 | KENWORTH | T680 | L6 8.9L |
| 2019 | PETERBILT | 579 | 6 11.9L |
| 2019 | PETERBILT | 579 | 6 12.9L |
| 2019 | PETERBILT | 579 | L |
| 2019 | PETERBILT | 579 | L6 10.8L |
| 2019 | PETERBILT | 579 | L6 14.9L |
| 2019 | PETERBILT | 579 | L6 8.9L |
| 2018 | KENWORTH | T680 | 6 11.9L |
| 2018 | KENWORTH | T680 | 6 12.9L |
| 2018 | KENWORTH | T680 | L |
| 2018 | KENWORTH | T680 | L6 10.8L |
| 2018 | KENWORTH | T680 | L6 12.9L |
| 2018 | KENWORTH | T680 | L6 14.9L |
| 2018 | KENWORTH | T680 | L6 8.9L |
| 2018 | PETERBILT | 579 | 6 11.9L |
| 2018 | PETERBILT | 579 | 6 12.9L |
| 2018 | PETERBILT | 579 | L |
| 2018 | PETERBILT | 579 | L6 10.8L |
| 2018 | PETERBILT | 579 | L6 14.9L |
| 2018 | PETERBILT | 579 | L6 8.9L |
Dual-row downflow core delivers reliable heat dissipation on both Kenworth and Peterbilt platforms Slim core depth keeps the cooling stack compact for tight front-end radiator bay installations Aluminum core pairs with plastic tanks for efficient heat transfer and lightweight construction Downflow configuration routes coolant evenly for consistent temperature regulation across the core Matched coolant ports support direct hose connection on KW and PB coolant circuit layouts Includes bolts, nuts, clevis pins, and clevis clips for a secure, tool-friendly installation
