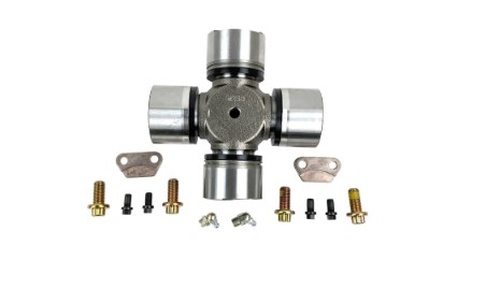

U-Joint 7.50" x 3.00" NPL250 Plate Lock Series - SPL - NEP6-1250

U-Joint 7.50" x 3.00" NPL250 Plate Lock Series - SPL - NEP6-1250

Part#: AAA489NEP6-1250

Features and Benefits

Series classification of NPL250 plate lock series, spl or npl250/spl250 for accurate driveline component identification
Overall dimensions of 7.50" x 7.50" x 3" for the product package size
Bearing cap diameter of 2.36" for correct U-joint cross fitment
Bearing plate diameter of 5.98" (round-npl) / 6.41" (round) for correct driveline fitment
Bearing cap retention of round-npl/round for the U-joint retention method
Lubrication type of yes - 1 lube fitting in cross for the U-joint service requirement

Warranty

Up to 3 years warranty

Please contact customer service to know more details

SPECIFICATIONS
INTERCHANGE
APPLICATION
DESCRIPTION

Dimensions	7.50 in x 7.50 in x 3.00 in
Series	NPL250 Plate Lock Series – SPL
Series	NPL250/SPL250
Series	SPL250
Lock-Up (Axis 1)	5.98 in
Lock-Up (Axis 2)	6.41 in
Bearing Cap Retention Type	Round-NPL/Round
Bearing Cap Retention Type	Dual Plane Retainer
Bearing Cap Retention Type	Universal Joint Kit
Bearing Cap Retention Type	Round Cap U-Joint
Bearing Cap Retention Type	Tab
Bearing Cap Retention Type	Spring Tab Style
Bearing Cap Retention Type	Bearing Plate / Bolt In Type
Lube Fitting Location	W/ 1 Lube Fitting In Cross
Bearing Cap Diameter (Axis 1)	2.36 in
Bearing Cap Diameter (Axis 2)	2.36 in
Lubrication Type	Yes - 1 Lube Fitting In Cross
Bearing Cap Diameter	2.36 in
Bearing Plate Diameter	5.98 in (Round-NPL) / 6.41 in (Round)
Installation Design	In-Field, Hand-Install Design

Interchange

1-0070
250-3X
6-0250
6-1250
N250-70-18X
SPL250-3X
SPL250-SF3X
SPL250X
US250X

No data found.

The NPL250/SPL250 Plate Lock Universal Joint is a hand-install field design with a dual-plane retainer, measuring 7.50" x 7.50" x 3.00", greaseable, engineered for reliable driveline connection on Heavy Duty commercial vehicle applications The product meets OEM specification.
