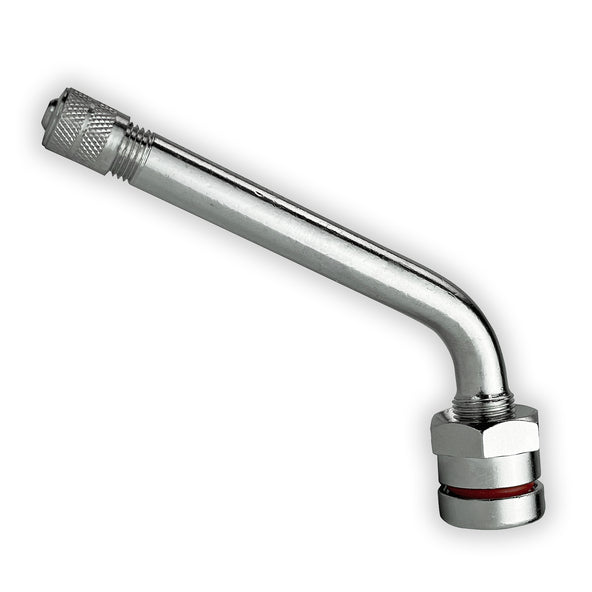

Air Brake Valve 9.70" Stem Length 3.00" Nickel Plated Brass O-Ring 150 psi - TR545D
Part#: AAA408TR545D
Features and Benefits
- Clamp-in tubeless valve stem product type for accurate identification during service
- Material of brass construction for the product body
- Overall dimensions of 0.98" x 2.60" for the product package size
- Seal size of O-ring for correct fitting sealing engagement
- Angle of 60 deg for the valve port orientation
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Length (#4) | 3.00 in.. |
|---|---|
| Width (#4) | 9.70 in.. |
| Height (#4) | 9.70 in.. |
| Material (#4) | Nickel Plated Brass |
| Section Width (#4) | 4.00 in.. |
| Length (#10) | 3.00 in.. |
| Width (#10) | 9.70 in.. |
| Height (#10) | 9.70 in.. |
| Material (#10) | Nickel Plated Brass |
| Section Width (#10) | 5.00 in.. |
| Length (#25) | 3.00 in.. |
| Width (#25) | 9.70 in.. |
| Height (#25) | 9.70 in.. |
| Material (#25) | Nickel Plated Brass |
| Section Width (#25) | 6.00 in.. |
| Length (#50) | 3.00 in.. |
| Width (#50) | 9.70 in.. |
| Height (#50) | 9.70 in.. |
| Material (#50) | Nickel Plated Brass |
| Section Width (#50) | 6.00 in.. |
| Bend Angle | 60 Degree |
| Stem Length | 3.00 in. |
| Seal Type | O-Ring |
| Valve Hole Size | 0.38 in. |
| O-Ring Material | Fkm Fluoroelastomer |
| Base Material | Brass |
| Type | Clamp-In Tubeless Valve Stem |
| Series | Tr545D Nickel Plated Truck Valves |
| Angle | 60° |
| Effective Length (Imperial) | 1.00 in. x 2.50 in. |
| Effective Length (Metric) | 0.98 in. x 2.60 in. |
| Maximum Pressure | 150 PSI |
| Material/Finish | Nickel Plated |
| Valve Type | O-Ring Truck Valve |
| Unit Of Measure | Bg (Bag) |
| Box Quantity | 10.00 |
| Valve Effective Length | 3.50 in. |
| From Valve Seat To Bend | 0.98" |
| From Bend To Valve Mouth | 2.6" |
| Construction Material | Nickle Plated Metal |
| Valve Cap Included | Yes |
| Wheel Type | Aluminum |
| Interchange |
|---|
| MVHTR545D[A] |
| VHI736/BG |
No data found.
The Valve Stem is nickel-plated brass, 60-degree bend, 3.00" length, 0.38" hole, available in multiple section widths, engineered for reliable tire inflation on Heavy Duty commercial vehicle applications. Designed as a direct replacement, the part delivers consistent performance and dependable results across a wide range of fleet configurations.
