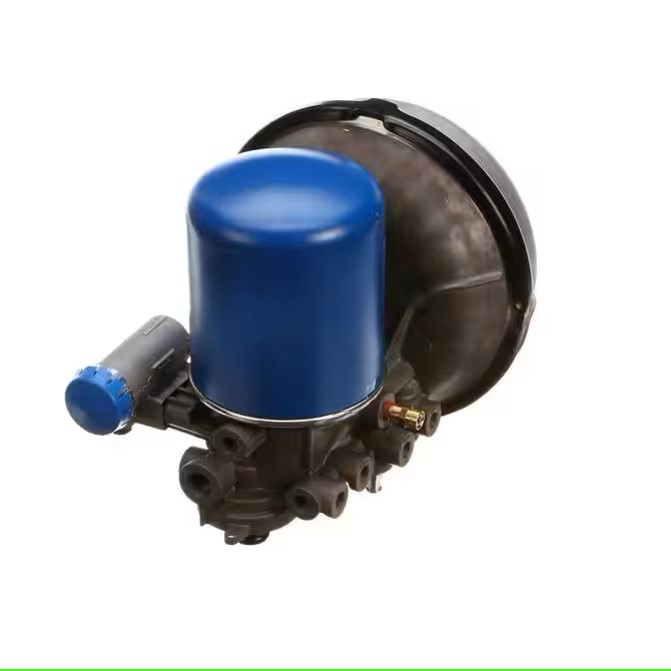

Air Dryer-Component Diameter 10.20" Reservoir Length 4.35" - 170.K160647SC
Part#: AAA512K160647SC
Features and Benefits
- Air dryer product type for accurate identification during service
- Air dryer type of stand-alone for accurate product identification
- Supply port of 1/2-14 NPT for correct air line connection
- Purge valve type of hard seat for the dryer purge configuration
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Supply Port | 1/2-14 NPT |
|---|---|
| Minimum Operating Temperature | 40 °F (-40 °C) |
| Air Dryer Type | Stand-Alone |
| Purge Exhaust Port | Standard |
| Purge Valve Type | Hard Seat |
| Purge Volume | Standard |
| Safety Valve Opening Pressure | 153 PSI |
| Heater Connector Type | Metri-Pack 280 Series 2-Way Sealed Connector (Male) |
| Cartridge Type | Puraguard (Coalescing) |
| Cartridge Thread | M41 X 1.5-6H Rh |
| Clearance To Remove Cartridge | 1.00 in. |
| Governor Included | Yes |
| Maximum Inlet Temperature | 160 °F (71 °C) |
| Cautionary Note(S) | Non-Serviceable Clamp Band. Do Not Remove. |
| Cut-In Pressure | 110 PSI |
| Cut-Out Pressure | 130 PSI |
| Governor Unloader Port | 1/8-27 NPT (Plugged) |
| Governor Reservoir Port | 1/8-27 NPT (Plugged) |
| Pri Delivery Port 21 | 1/4-18 NPT |
| Pri Delivery Opening Pressure | 103 PSI |
| Sec Delivery Port 22 | 1/4-18 NPT |
| Aux 1 Delivery Port 1 | 1/4-18 NPT |
| Aux 1 Delivery Port 2 | 1/4-18 NPT |
| Aux 1 Delivery Port 3 | 1/4-18 NPT |
| Aux 1 Delivery Port 4 | 1/4-18 NPT |
| Aux 1 Delivery Opening Pressure | 112 PSI |
| Aux 2 Delivery Port | 1/4-18 NPT |
| Aux 2 Delivery Opening Pressure | 112 PSI |
| Governor Type | Non-Adjustable |
| Pressure Protection Valve Configuration | 4 in Parallel |
| Sec Delivery Opening Pressure | 112 PSI |
| Remote Charge / Fill Port (Through Desiccant) | 1/4-18 NPT |
| Remote Charge / Fill Port 1 (After Desiccant) | 1/4-18 NPT |
| Remote Charge / Fill Port 2 (After Desiccant) | 1/4-18 NPT (With Safety Valve) |
| Reservoir Diameter | Ø 10.20 in. |
| Reservoir Length | 4.35 in. |
| Reservoir Material | Aluminum |
| Number Of Compartments | 1.00 |
| Reservoir Fill Type | Integral Fill |
| Description | Puraguard Coalescing Cartridge Air Dryer Assembly With Governor, 12V/90W Heater, 4-Port Parallel Pressure Protection |
| Part Type | Air Dryer |
| Core Charge | No Core Charge |
| Interchange |
|---|
| K160647SC |
No data found.
The Air Dryer Component is engineered for reliable system maintenance on Heavy Duty commercial vehicle applications. Designed as a direct replacement, the part delivers consistent performance and dependable results across a wide range of fleet configurations.
