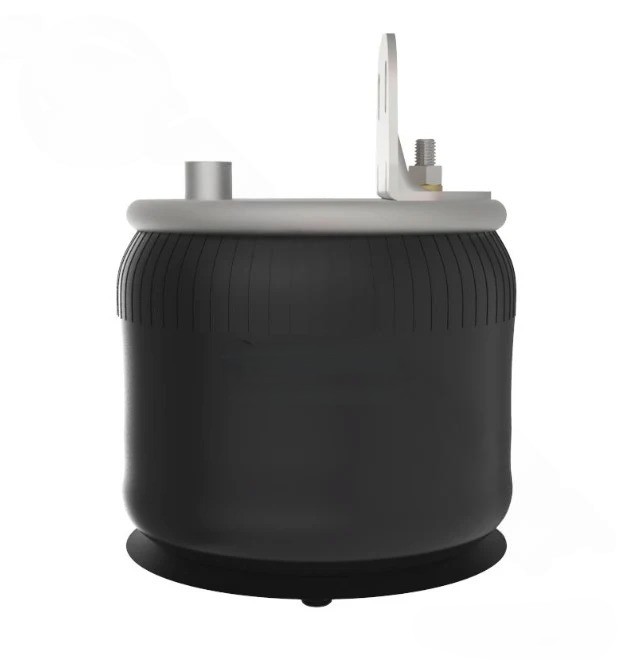

Air Spring 9.00" Top Plate Diameter Rolling Lobe 4.50" - 566.CT68675
Part#: AAA516CT68675
Features and Benefits
- Air spring, rolling lobe product type for accurate identification during service
- Extended height of 14.40" for the product dimensional specification
- Compressed height of 4.50" for the product dimensional specification
- Piston width of 9.53" for correct fitment dimension
- Bumper configuration of yes for the air spring internal stop
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Extended Height | 14.40 in. |
|---|---|
| Compressed Height | 4.50 in. |
| Top Plate Width | 9.00 in. |
| Piston Number | Bs08623 |
| Piston Width | 9.53 in. |
| Type | Rolling Lobe |
| Automann Bellows# | #N/A |
| Goodyear Bellows# | 9 9-12 |
| Triangle Bellows# | 5100.00 |
| Load (Lbs) @80 PSI | 6400.00 |
| Load (Lbs) @100 PSI | 80.00 |
| Natural Freq. (Cpm) | 8.00 |
| Bottom Plate Type | Plastic |
| Top Plate Hole/Stud Quantity | 2.00 |
| Top Plate Diameter. (A) | 9.00 |
| Top Plate C To C Diameter. (B) | 5.50 |
| Bottom Plate Hole/Stud Quantity | 1.00 |
| Bottom Part # | Bs08623 |
| Bumper | Yes |
| Bracket | Ab9471P |
| Min. Height | 4.50 |
| Max. Height | 14.40 |
| Max. Diameter | 11.40 |
| Product Type | Air Spring - Rolling Lobe |
| Interchange |
|---|
| 68675 |
| 9 9-12 P 937 |
| 905-57-224 |
| 905-57-250 |
| 905-57-411 |
| 90557224 |
| 90557250 |
| 90557411 |
| 9584 |
| W01-358-9584 |
| W01-675-9584 |
| W01-675-9613 |
| W013589584 |
| W016759584 |
| W016759613 |
No data found.
The Rolling Lobe Air Spring 9584 is 14.40" extended and 4.50" compressed, 9.00" top plate, rated 6,400 lbs at 80 psi, engineered for reliable suspension on Heavy Duty commercial vehicle applications. Designed as a direct replacement, the part delivers consistent performance and dependable results across a wide range of fleet configurations.
