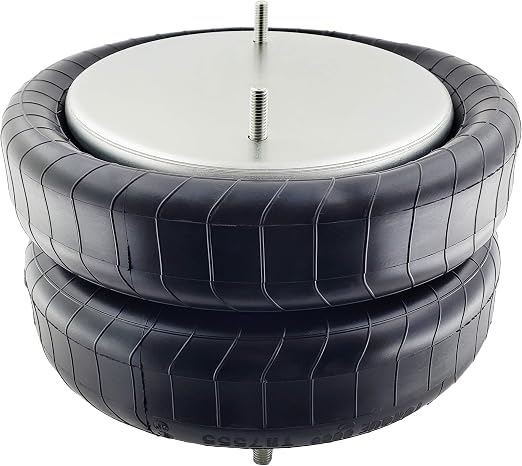

Air Spring-Bag 13.50" Double Convoluted 10.00" - 566.ER7555
Part#: AAA501ER7555
Features and Benefits
- Double convoluted product type for accurate identification during service
- Design height of 10" for the product dimensional specification
- Maximum height of 14.90" for the product dimensional specification
- Top plate diameter of 9" for correct fitment dimension
- Bottom plate diameter of 8.93" for correct fitment dimension
- Bumper configuration of yes for the air spring internal stop
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Type | Double Convoluted |
|---|---|
| Firestone Bellows Number | 228‑1.5 |
| Load @ 100 PSI | 5,900 lbs |
| Design Height | 10.00 in. |
| Minimum Height (Compressed) | 3.50 in. |
| Maximum Height | 14.90 in. |
| Maximum Diameter | 13.50 in. |
| Top Plate Diameter | 9.00 in. |
| Bottom Plate Diameter | 8.93 in. |
| Bumper | Yes |
| Unit | Ea |
| Bellow # | 228-1.5 |
| Interchange |
|---|
| 10-97450 |
| 10-97555 |
| 18813-01 |
| 1881301 |
| 20018-01 |
| 2001801 |
| 20018‑01 |
| 228-1.5 |
| 2B12-440 |
| 2B12‑440 |
| 3194 |
| 3271 |
| 4480 |
| 454-7555 |
| 454-7555L |
| 454‑7555 |
| 566.CT64284 |
| 578-92-3-315 |
| 64284 |
| 7450 |
| 7555 |
| AB-2B12-440 |
| ABSP2B22R-7555 |
| ABSP2B22RB-7555 |
| ABSP2B22RB‑7555 |
| AS-4480 |
| ASA-92-6-004 |
| ASA-92-8-005 |
| CS212440 |
| E-FS7555 |
| FD 331 26 480 |
| FD331-26480 |
| FS7555 |
| M-3531 |
| RL75550 |
| SC2676 |
| W01-358-7555 |
| W01‑358‑7555 |
| WA01-7555 |
| WA01-7555C |
| XB-SPN-053-37 |
| XBSPN05337 |
| XB‑SPN‑053‑37 |
No data found.
The Double-Convoluted Air Bag has a 10.00" design height, 13.50" max OD, rated 5,900 lbs at 100 psi, engineered for reliable suspension on Heavy Duty commercial vehicle applications. Designed as a direct replacement, the part delivers consistent performance and dependable results across a wide range of fleet configurations.
