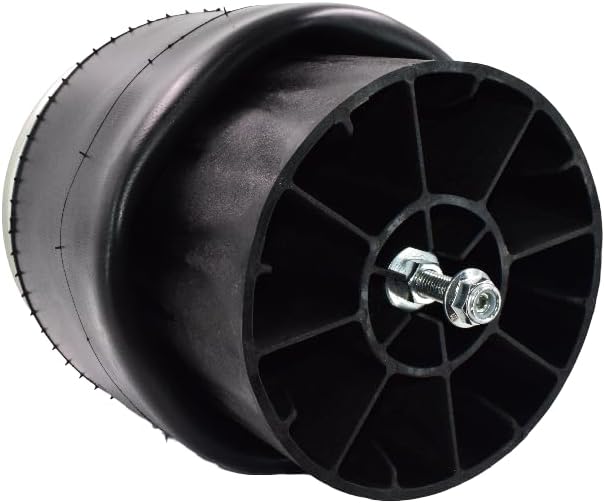

Air Spring-Bag 11.31" Top Plate Diameter Rolling Lobe 10.00" - 410.P4733
Part#: AAA501P4733
Features and Benefits
- Rolling lobe product type for accurate identification during service
- Design height of 10" for the product dimensional specification
- Bumper configuration of yes for the air spring internal stop
- Bottom plate and piston type of plastic for the air spring base configuration
- Load lbs at 80 PSI of 9100 for the air spring load capacity
- Load lbs at 100 PSI of 11400 for the air spring load capacity
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Type | Rolling Lobe |
|---|---|
| Automann Bellows# | 1Dk28M |
| Firestone Bellows# | 1T19Lf-7 |
| Contitech Bellows# | 11 10.5F-17.5 |
| Load (Lbs) @80 PSI | 9100.00 |
| Load (Lbs) @100 PSI | 11400.00 |
| Natural Freq. (Cpm) | 81.00 |
| Design Height | 10.00 in. |
| Bottom Plate Type | Plastic |
| Top Plate Hole/Stud Quantity | 2.00 |
| Top Plate Diameter. (A) | 11.31 |
| Top Plate C To C Diameter. (B) | 5.50 |
| Bottom Plate Hole/Stud Quantity | 1.00 |
| Bottom Plate Diameter. (C) | 10.16 |
| Bottom Part # | Bs10179 |
| Bumper | Yes |
| Min. Height | 5.10 |
| Max. Diameter | 15.40 |
| Interchange |
|---|
| 11 10.5F-17 P 745 |
| 1R14-172 |
| 1R14-190 |
| 1R14172 |
| 1R14190 |
| 65593 |
| 8774 |
| AS-0159 |
| AS-0159-1G |
| AS-0159G |
| AS0159 |
| AS0159G |
| S-25873 |
| S-27341 |
| S25873 |
| S27341 |
| W01-358-8774 |
| W013588774 |
No data found.
The air bag is engineered for reliable suspension on Heavy Duty commercial vehicle applications. Designed as a direct replacement, the part delivers consistent performance and dependable results across a wide range of fleet configurations. The component meets OEM specification.
