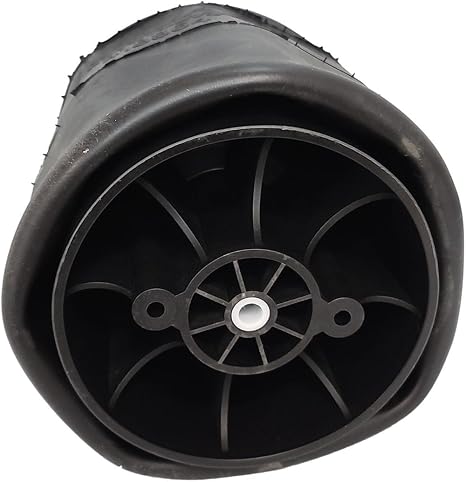

Air Spring-Bag 9.00" Rolling Lobe 25.20" - 410.P8864
Part#: AAA501P8864
Features and Benefits
- Air spring type of rolling lobe for accurate product identification
- Maximum height of 25.20" for the product dimensional specification
- Top plate diameter of 9" for correct fitment dimension
- Bumper configuration of no for the air spring internal stop
- Bottom plate and piston type of plastic for the air spring base configuration
- Top plate stud quantity of 3 for the air spring mounting configuration
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Air Spring Type | Rolling Lobe |
|---|---|
| Automann Bellows # | 1T15M-9 |
| Goodyear Bellows # | 9 10-19 |
| Contitech Bellows # | 6364.00 |
| Triangle Bellows # | 5600.00 |
| Load @ 80 PSI | 7,100 lbs |
| Load @ 100 PSI | 65 lbs |
| Natural Frequency | 16.00 Cpm |
| Bottom Plate Type | Plastic |
| Top Plate Hole / Stud Quantity | 3.00 |
| Top Plate Diameter | 9.00 in. |
| Top Plate C To C Diameter | 6.20 in. |
| Bottom Plate Hole / Stud Quantity | 1.00 |
| Bottom Plate # | Bs08765 |
| Bumper | No |
| Minimum Height | 7.80 in. |
| Maximum Height | 25.20 in. |
| Maximum Diameter | 12.60 in. |
| Interchange |
|---|
| 03-08716 |
| 1R12-1097 |
| 1R121097 |
| 308716 |
| 66666 |
| 8864 |
| 8865 |
| 9 10-19 P 898 |
| C81-1011 |
| C81-1013 |
| C811011 |
| C811013 |
| W01-358-8864 |
| W01-687-5470 |
| W01-703-8863 |
| W01-703-8864 |
| W01-703-8865 |
| W013588864 |
| W016875470 |
| W017038863 |
| W017038864 |
| W017038865 |
No data found.
The air bag is engineered for reliable suspension on Heavy Duty commercial vehicle applications. Designed as a direct replacement, the part delivers consistent performance and dependable results across a wide range of fleet configurations. The component meets OEM specification.
