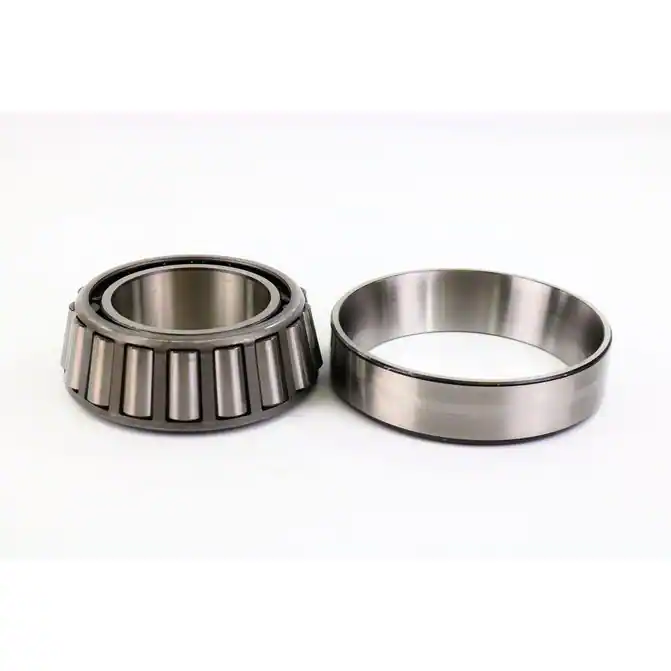

Bearing 5.88" 1 Unit Pack Fl - SET423
Part#: AAA526SET423
Features and Benefits
- Bearing set product type for accurate identification during service
- Bearing type of standard for accurate component identification
- Cup outer diameter of 5.88" for correct fitment dimension
- Pack quantity of 1 for the product kit contents
- Status of active for the product specification
- Pallet quantity of 200 for the product specification
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Status | Active |
|---|---|
| Pallet Quantity | 200.00 |
| Marketing Group | Wheel Bearings |
| Bearing Type | Standard |
| Type | Bearing Set |
| Series | Fl |
| Hub Type | Conventional |
| Bearing Location | Inner |
| Outside Diameter (In.) | 5.88 in.. |
| Thickness (Mm) | 2.12 in. |
| Thickness (In.) | 2.12 in.. |
| Inside Diameter (Mm) | 3.00 in. |
| Inside Diameter (In.) | 3.00 in.. |
| Outside Diameter (Mm) | 5.88 in. |
| Notes | Wheel End - Steer |
| VMRS Code | 018-005-003 |
| Design Units | Imperial |
| Cage Type | Stamped Steel |
| D - Bore | 3.00 in. |
| D - Cup Outer Diameter | 5.88 in. |
| B - Cone Width | 2.14 in. |
| C - Cup Width | 1.75 in. |
| T - Bearing Width | 2.12 in. |
| R - Cone Backface "To Clear" Radius1 | 0.38 in. |
| R - Cup Backface "To Clear" Radius2 | 0.13 in. |
| Da - Cone Frontface Backing Diameter | 3.52 in. |
| Db - Cone Backface Backing Diameter | 4.25 in. |
| Da - Cup Frontface Backing Diameter | 5.51 in. |
| Db - Cup Backface Backing Diameter | 5.08 in. |
| Ab - Cage-Cone Frontface Clearance | 0.06 in. |
| Aa - Cage-Cone Backface Clearance | 0.09 in. |
| A - Effective Center Location3 | 15 Mm |
| K - Factor 7 | 1.61 |
| E - ISO Factor 8 | 0.36 |
| Y - ISO Factor 9 | 1.66 |
| G1 - Heat Generation Factor (Roller-Raceway) | 158.00 |
| G2 - Heat Generation Factor (Rib-Roller End) | 29.10 |
| Cg - Geometry Factor | 0.09 |
| Stock | In Stock (10 Units), Ready To Be Shipped |
| Bearing Width | 2.12 in. |
| Bore | 3.00 in. |
| Cone Width | 2.14 in. |
| Cup Outer Diameter | 5.88 in. |
| Cup Width | 1.75 in. |
| Size – Height | 2.13 in. |
| Size – Length | 5.88 in. |
| Size – Width | 3.00 in. |
| Interchange |
|---|
| 182SKF423 |
| 6420 |
| 6420/6461A |
| 6461A |
| 6461A/6420 |
| 8235SET423 |
| AP0742KT |
| APBSET423HY |
| APBSET423TIM |
| ATISET423 |
| HD218 |
| MERSET423 |
| SET 423 |
| SET423MT0R |
| SET423MTOR |
| SET423RI |
| SET6461A20 |
| TDASET423 |
| TWDSET423 |
No data found.
The Bearing is engineered for reliable load support on Heavy Duty commercial vehicle applications. Designed as a direct replacement, the part delivers consistent performance and dependable results across a wide range of fleet configurations. The component meets OEM specification.
