Bearing Cone-Cup 2.72" Gcr15 Steel Open - 14125A
Part#: AAA52714125A
Features and Benefits
- K factor factor of 1.53 for the bearing load rating
- G1 factor factor of 18 for the bearing load rating
- G2 factor factor of 13.3 for the bearing load rating
- Bore d of 1.25" / 1.25" for the product specification
- Inner ring width b of 0.77" / 0.77" for the product specification
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Unit Of Measure | Imperial |
|---|---|
| Bore (D) | 1.25 in. / 1.25 in. |
| Inner Ring Width (B) | 0.77 in. / 0.77 in. |
| K Factor | 1.53 |
| Effective Center Location | 0.17 In / -4.3 Mm |
| Max Shaft Fillet Radius | 0.14 in. / 0.14 in. |
| Shaft Backing Shoulder Diameter - Frontface (Da) | 1.54 in. / 1.54 in. |
| Shaft Backing Shoulder Diameter - Backface (Db) | 1.77 in. / 1.77 in. |
| Cage Location Rel. To Bf (Aa) | 0.02 In / 0.5 Mm |
| Cage Location Rel. To Ff (Ab) | 0.07 In / 1.8 Mm |
| G1 Factor | 18.00 |
| G2 Factor | 13.30 |
| Geometry Factor (Cg) | 0.07 |
| Bore Diameter (D) | 1.25 in. |
| Outer Diameter (D) | 2.72 in. |
| Cup Width (C) | 0.62 in. |
| Material | Gcr15 Bearing Steel |
| End Type | Open |
| Number Of Rows | 1.00 |
| Bore Type | Parallel |
| Interchange |
|---|
| 14125A/14274 |
No data found.

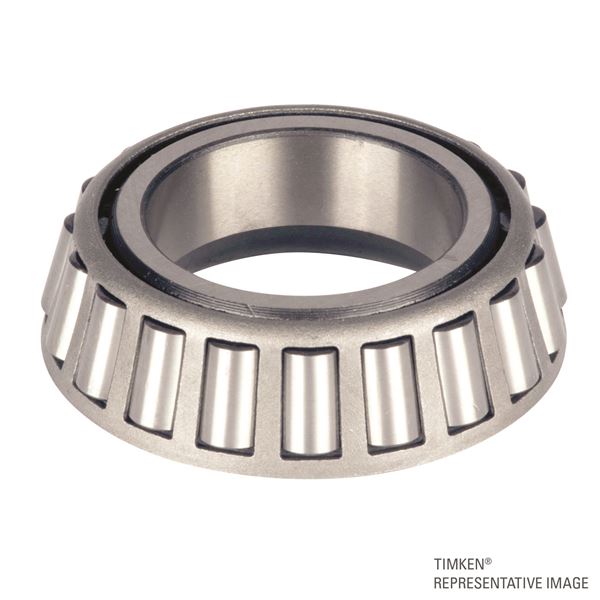

The Tapered Roller Cone is 1.25" bore, 0.77" width, Timken 14125A/14274, engineered for reliable bearing support on Heavy Duty commercial vehicle applications. Designed as a direct replacement, the part delivers consistent performance and dependable results across a wide range of fleet configurations.
