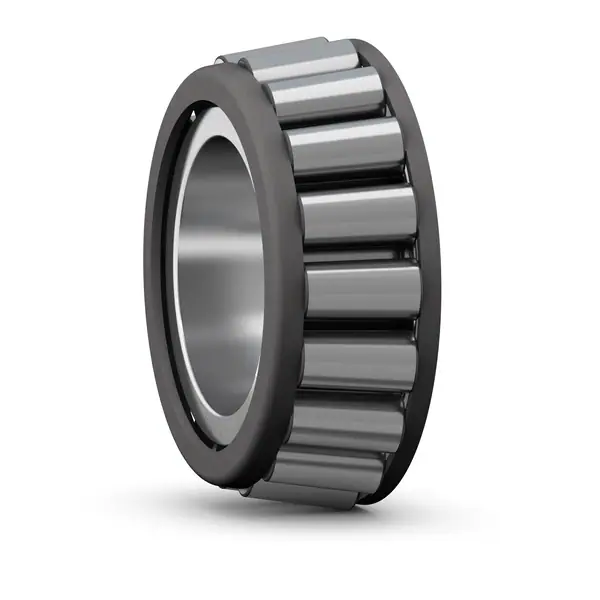

Bearing Cone-Cup 2.88" 0.09" - 25820

Bearing Cone-Cup 2.88" 0.09" - 25820

Part#: AAA52725820

Features and Benefits

Tapered roller bearing product type for accurate identification during service
Bearing type of imperial taper roller bearing for accurate component identification
Material of 52100 steel construction for the product body
Width of 0.94" for the product body dimension
Outer diameter. d of 2.88" for the product specification
Outer ring width c of 0.75" for the product specification

Warranty

Up to 3 years warranty

Please contact customer service to know more details

SPECIFICATIONS
INTERCHANGE
APPLICATION
DESCRIPTION

Unit Of Measure	Imperial
Outer Diameter. (D)	2.88 in.
Outer Ring Width (C)	0.75 in.
E Factor 1	0.29
Y Factor 2	2.07
Max Housing Fillet Radius 3	0.09 in.
Housing Backing Shoulder Diameter. - Frontface (Da)	2.72 in.
Housing Backing Shoulder Diameter. - Backface (Db)	2.52 in.
Geometry Factor (Cg) 4	0.07
Inside Diameter (Inch)	0.11 in.
Outside Diameter (Inch)	0.34 in.
Width (Inch)	0.94 in.
Cage Type	Steel
Seals Or Shields	Open Type
Inside Diameter	1.44 in.
Outside Diameter	2.88 in.
Width	0.94 in.
Bearing Type	Imperial Taper Roller Bearing
Mfr #	25820.00
Zoro #	G607137618
Bearing Width (In.)	0.75 in.
Lubrication	Light Oil Preservative
Material	52100 Steel
Outer Diameter	4.00 in..
Thickness	0.94 in.
Cage	Steel
Type	Tapered Roller Bearing
Outer Diameter (OD)	2.88 in.

Interchange

25877-25820-TIMKEN
25880
25880/25820
TIM-25820

No data found.

The Bearing Cone/Cup is engineered for reliable load support on Heavy Duty commercial vehicle applications. Designed as a direct replacement, the part delivers consistent performance and dependable results across a wide range of fleet configurations. The component meets OEM specification.
