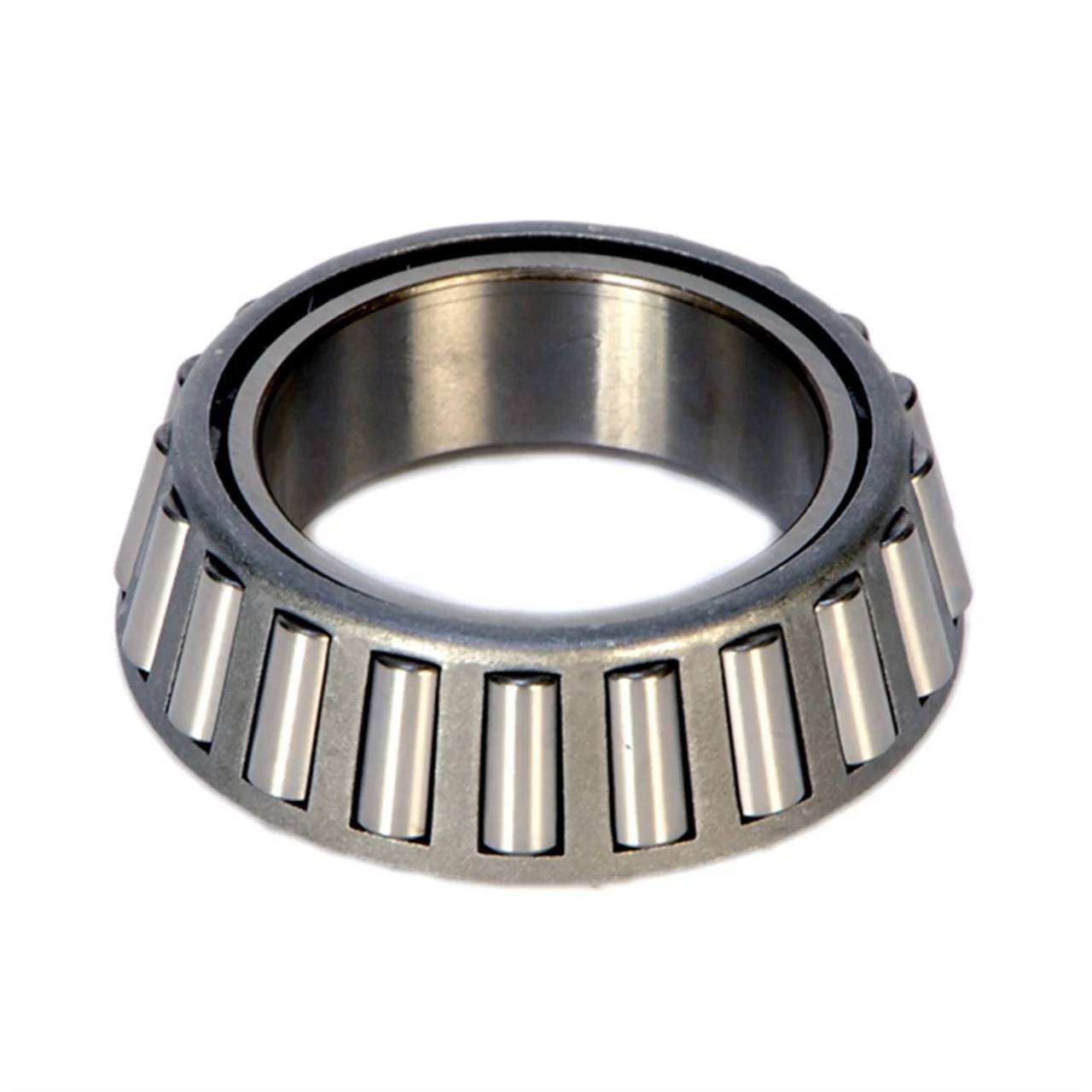

Bearing Cone-Cup 2.62" Case Carburized Steel - 3984
Part#: AAA5273984
Features and Benefits
- Tapered roller bearing product type for accurate identification during service
- Bearing type of single row tapered roller bearing for accurate component identification
- Material of case carburized steel construction for the product body
- Configuration of one for the valve design
- K factor factor of 1.45 for the bearing load rating
- G1 factor factor of 75.2 for the bearing load rating
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Unit Of Measure | Imperial & Metric |
|---|---|
| Bore (D) | 2.62 in. / 2.62 in. |
| Inner Ring Width (B) | 1.18 in. / 1.18 in. |
| K Factor | 1.45 |
| Effective Center Location | 0.18 In / -4.6 Mm |
| Max Shaft Fillet Radius | 0.14 in. / 0.14 in. |
| Shaft Backing Shoulder Diameter - Frontface (Da) | 2.91 in. / 2.91 in. |
| Shaft Backing Shoulder Diameter - Backface (Db) | 3.15 in. / 3.15 in. |
| Cage Location Rel. To Bf (Aa) | 0.06 In / 1.5 Mm |
| Cage Location Rel. To Ff (Ab) | 0.08 In / 2 Mm |
| G1 Factor | 75.20 |
| G2 Factor | 21.30 |
| Geometry Factor (Cg) | 0.11 |
| Inner Diameter | 2.62 in. |
| Axle Capacity | 12,000–15,000 Lbs |
| Inside Diameter (Inch) | 0.31 in. |
| Outside Diameter (Inch) | 0.13 in. |
| Width (Inch) | 0.08 in. |
| Inside Diameter (Mm) | 2.62 in. |
| Outside Diameter (Mm) | 4.44 in. |
| Width (Mm) | 1.19 in. |
| Cage Type | Steel |
| Seals Or Shields | Open Type |
| Clearance | Standard |
| Bearing Type | Single Row Tapered Roller Bearing |
| Inside Diameter (Inch) - Decimal | 2.62 in. |
| Outside Diameter (Inch) - Decimal | 4.44 in. |
| Width (Inch) - Decimal | 1.19 in. |
| Type | Tapered Roller Bearing |
| Bore Type | Round |
| Material | Case Carburized Steel |
| Limiting Speed - Grease | 3200 RPM |
| Style | Cone & Cup |
| Cone Number | 3984.00 |
| Cup Number | 3920.00 |
| Configuration | One |
| Lubrication | W/O Oil Hole |
| E (Axial Load Factor) | 0.40 |
| Y2 (Axial Load Factor) | 1.49 |
| Enclosure | Open |
| Operating Temperature Range | 40 To 250 ºF / -40 To 120 ºC |
| B | 2.6250 In / 66.675 Mm |
| D | 4.4375 In / 112.712 Mm |
| Wo | 0.9375 In / 23.812 Mm |
| Wi | 1.1830 In / 30.048 Mm |
| W | 1.1875 In / 30.163 Mm |
| R | 0.1300 In / 3.300 Mm |
| A (Effective Load Center) | 0.1800 In / -4.600 Mm |
| U | 3.15 In / 80.0 Mm |
| V | 2.91 In / 74.0 Mm |
| X | 4.17 In / 106.0 Mm |
| Z | 3.90 In / 99.0 Mm |
| Interchange |
|---|
| 3984/3920 |
No data found.
The Bearing Cone/Cup is engineered for reliable load support on Heavy Duty commercial vehicle applications. Built as a direct replacement, the part delivers consistent performance and dependable results across a wide range of fleet configurations. The component meets OEM specification.
