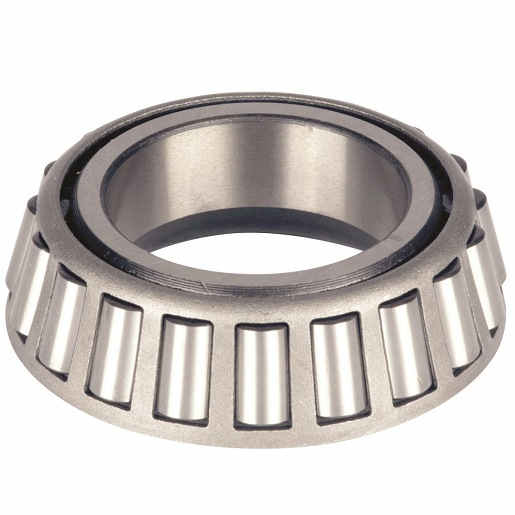

Bearing Cone-Cup 2.62" 0.13" - HM212049
Part#: AAA527HM212049
Features and Benefits
- Bearing type of tapered roller bearing set for accurate component identification
- Overall dimensions of 2.625x4.8125x1.50" for the product package size
- Width of 1.50" for the product body dimension
- K factor factor of 1.73 for the bearing load rating
- G1 factor factor of 92.2 for the bearing load rating
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Bearing Type | Tapered Roller Bearing Set |
|---|---|
| Inner Diameter (Bore) | 2.62 in. |
| Outer Diameter | 4.81 in. |
| Width | 1.50 in. |
| Series | Hm Series |
| Size | 2-5/8x4-13/16x1-1/2 |
| Bore (D) | 2.62 in. / 2.62 in. |
| Outer Diameter. (D) | 4.81 in. / 4.81 in. |
| Width (T) | 1.50 in. / 1.50 in. |
| E Factor | 0.34 |
| K Factor | 1.73 |
| Y Factor | 1.78 |
| Inner Ring Width (B) | 1.51 in. / 1.51 in. |
| Outer Ring Width (C) | 1.17 in. / 1.17 in. |
| Effective Center Location | 0.43 In / -10.9 Mm |
| Max Shaft Fillet Radius | 0.14 in. / 0.14 in. |
| Max Housing Fillet Radius | 0.13 in. / 0.13 in. |
| Shaft Backing Shoulder Diameter. - Frontface (Da) | 2.97 in. / 2.97 in. |
| Shaft Backing Shoulder Diameter. - Backface (Db) | 3.23 in. / 3.23 in. |
| Housing Backing Shoulder Diameter. - Frontface (Da) | 4.60 in. / 4.57 in. |
| Housing Backing Shoulder Diameter. - Backface (Db) | 4.25 in. / 4.25 in. |
| Cage Location Rel. To Bf (Aa) | 0.07 In / 1.8 Mm |
| Cage Location Rel. To Ff (Ab) | 0.15 In / 3.8 Mm |
| G1 Factor | 92.20 |
| G2 Factor | 18.10 |
| Geometry Factor (Cg) | 0.08 |
| Unit Of Measure | Imperial |
| Type | Tapered Roller Bearings - Ts (Tapered Single) Imperial |
| Inside Diameter (Inch) | 0.31 in. |
| Outside Diameter (Inch) | 0.26 in. |
| Width (Inch) | 0.55 in. |
| Cage Type | Steel |
| Seals Or Shields | Open Type |
| Interchange |
|---|
| AP0609T |
| hm 212010 |
| hm 212049 |
| HM212010 |
| HM212011 |
| hm212049/hm212010 |
| MERHM212049 |
No data found.
The Bearing Cone/Cup is engineered for reliable load support on Heavy Duty commercial vehicle applications. Built as a direct replacement, the part delivers consistent performance and dependable results across a wide range of fleet configurations. The component meets OEM specification.
