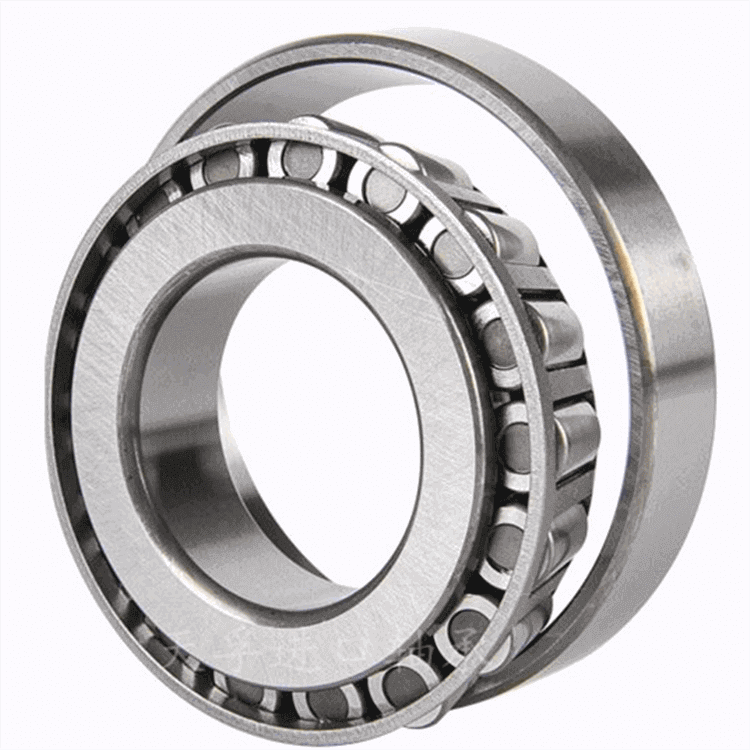

Bearing Cone-Cup 6.00" 0.4 E - ISO Factor - HM518445
Part#: AAA527HM518445
Features and Benefits
- Tapered roller bearing kit, inner cup and cone product type for accurate identification during service
- K factor factor of 1.45 for the bearing load rating
- G1 factor factor of 162 for the bearing load rating
- G2 factor factor of 33.7 for the bearing load rating
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Set Number | Set415 |
|---|---|
| Component Numbers | Hm518445 / Hm518410 |
| Type | Tapered Roller Bearing Kit, Inner Cup & Cone |
| Meritor Equivalent | Ap0615Kt |
| Design Units | Imperial |
| Cage Type | Stamped Steel |
| D – Bore | 3.50 in. |
| D – Cup Outer Diameter | 6.00 in. |
| B – Cone Width | 1.56 in. |
| C – Cup Width | 1.19 in. |
| T – Bearing Width | 1.56 in. |
| R – Cone Backface "To Clear" Radius 1 | 0.25 in. |
| R – Cup Backface "To Clear" Radius 2 | 0.13 in. |
| Da – Cone Frontface Backing Diameter | 3.94 in. |
| Db – Cone Backface Backing Diameter | 4.41 in. |
| Da – Cup Frontface Backing Diameter | 5.79 in. |
| Db – Cup Backface Backing Diameter | 5.39 in. |
| Ab – Cage-Cone Frontface Clearance | 0.16 in. |
| Aa – Cage-Cone Backface Clearance | 0.11 in. |
| A – Effective Center Location | 6.4 Mm |
| K – Factor | 1.45 |
| E – ISO Factor | 0.40 |
| Y – ISO Factor | 1.49 |
| G1 – Heat Generation Factor (Roller-Raceway) | 162.00 |
| G2 – Heat Generation Factor (Rib-Roller End) | 33.70 |
| Cg – Geometry Factor | 0.10 |
| Unit Of Measure | Imperial |
| Bore (D) | 3.50 in. / 3.50 in. |
| Inner Ring Width (B) | 1.56 in. / 1.56 in. |
| K Factor | 1.45 |
| Effective Center Location | 0.25 In / -6.4 Mm |
| Max Shaft Fillet Radius | 0.25 in. / 0.25 in. |
| Shaft Backing Shoulder Diameter - Frontface (Da) | 3.94 in. / 3.94 in. |
| Shaft Backing Shoulder Diameter - Backface (Db) | 4.41 in. / 4.41 in. |
| Cage Location Rel. To Bf (Aa) | 0.11 In / 2.8 Mm |
| Cage Location Rel. To Ff (Ab) | 0.16 In / 4.1 Mm |
| G1 Factor | 162.00 |
| G2 Factor | 33.70 |
| Geometry Factor (Cg) | 0.10 |
| Description | Tapered Roller Bearing Cone |
| Inner Diameter | 3.50 in. |
| Series | Hm Series Tapered Roller Bearings |
| Interchange |
|---|
| AP0615KM |
| AP0615KS |
| AP0615KT |
| AP0615M |
| HM518410 |
| SET415 |
No data found.
The Bearing Cone/Cup is engineered for reliable load support on Heavy Duty commercial vehicle applications. Built as a direct replacement, the part delivers consistent performance and dependable results across a wide range of fleet configurations. The component meets OEM specification.
