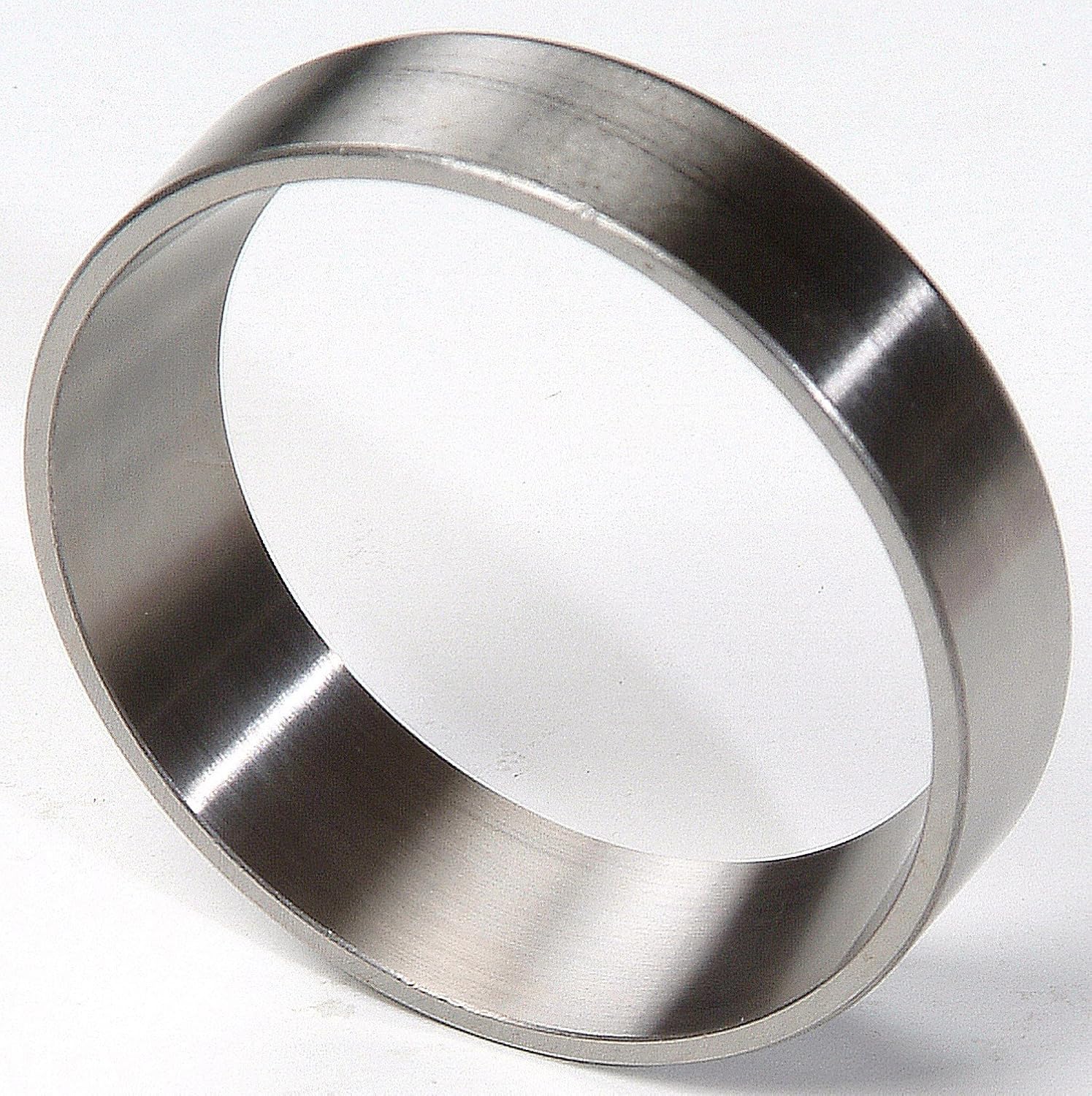

Bearing Cone-Cup 3.74" 0.10" - JM207010
Part#: AAA527JM207010
Features and Benefits
- Bearing type of tapered roller bearing, single cup for accurate component identification
- K factor factor of 1.74 for the bearing load rating
- G1 factor factor of 56.4 for the bearing load rating
- G2 factor factor of 19.9 for the bearing load rating
- Outer diameter. d of 3.74" for the product specification
- E factor of 0.33 for the product specification
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Outer Diameter. (D) | 3.74 in. |
|---|---|
| E Factor | 0.33 |
| K Factor | 1.74 |
| Y Factor | 1.79 |
| C - Cup Width | 0.93 in. |
| Max Housing Fillet Radius | 0.10 in. |
| Housing Backing Shoulder Diameter. - Frontface (Da) | 3.62 in. |
| Housing Backing Shoulder Diameter. - Backface (Db) | 3.35 in. |
| G1 Factor | 56.40 |
| G2 Factor | 19.90 |
| Geometry Factor (Cg) | 0.09 |
| Mfr # | Jm207010 |
| Zoro # | G607137212 |
| Outside Diameter (Outer Diameter) | 4.00 in. |
| Bearing Type | Tapered Roller Bearing, Single Cup |
| Series | Trb Single Cup |
| Assembly Number | Jm207010-N0000 |
| External Diameter (D) | 3.74 in. |
| Cup Width (C) | 0.93 in. |
| Hts Code | 84.82.20.00.40 |
| Interchange |
|---|
| JM207010-N0000 |
| TIM-JM207010 |
No data found.
The Bearing Cone/Cup is engineered for reliable load support on Heavy Duty commercial vehicle applications. Designed as a direct replacement, the part delivers consistent performance and dependable results across a wide range of fleet configurations. The component meets OEM specification.
