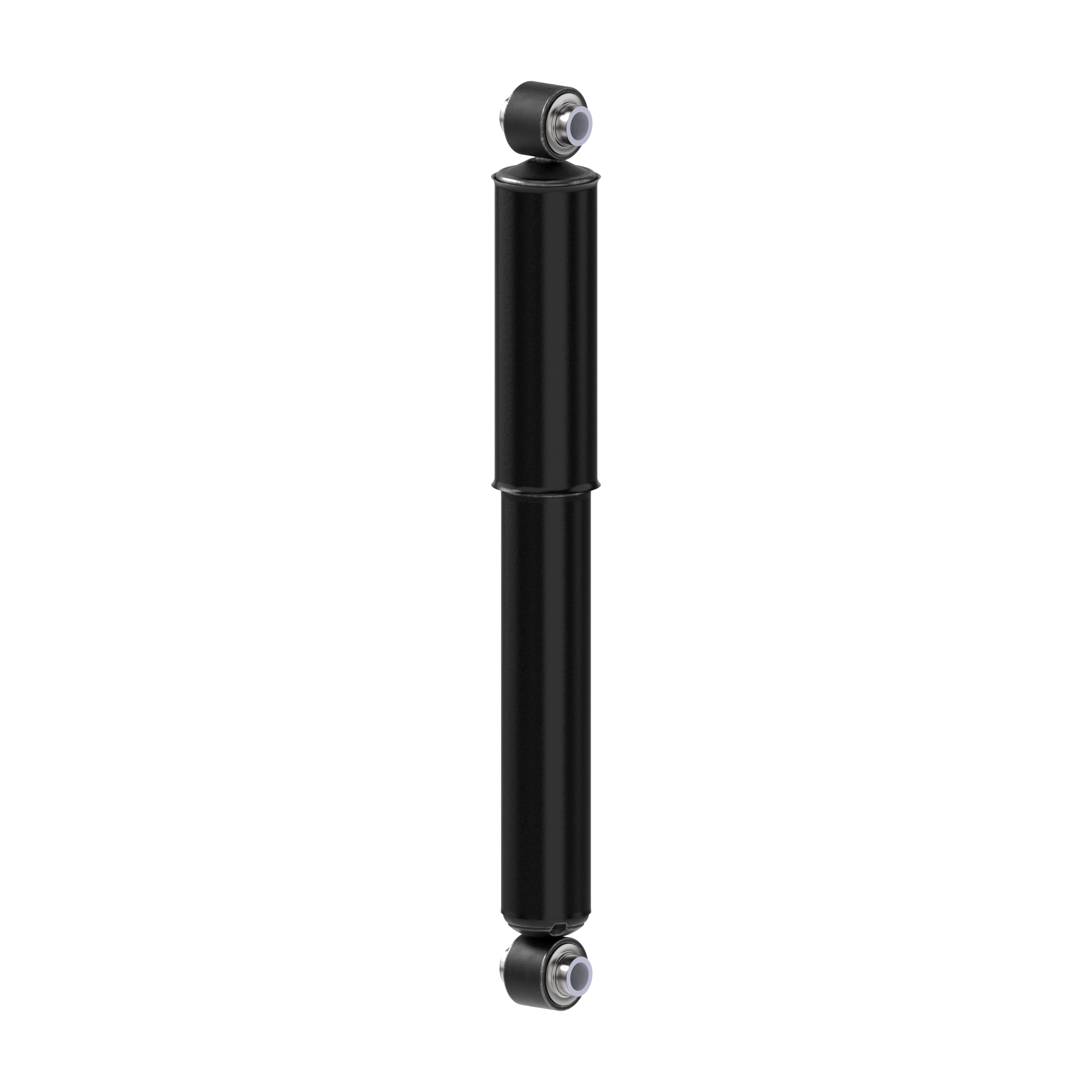

Shock Absorber 14.58" Hydraulic / Telescopic Eye Ring With Sleeve - 565.ER3014
Part#: 665148
Features and Benefits
- Extended length of 22.83" for the shock absorber travel specification
- Collapsed length of 14.49" for the shock absorber compressed dimension
- Upper mount type of eyelet for the shock absorber top connection
- Gas charged construction for consistent damping performance
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Product Type | Shock Absorber |
|---|---|
| Series | Econoride |
| Shock Type | Hydraulic / Telescopic |
| Bore Diameter | 1.62 in. |
| Extended Length | 22.97 in. |
| Collapsed Length | 14.58 in. |
| Stroke Length | 8.39 in. |
| Upper Mount | Eye Ring With Sleeve |
| Lower Mount | Eye Ring With Sleeve |
| Upper Mount Code | Es150 |
| Lower Mount Code | Es150 |
| Mounting Sleeve Inner Diameter | 0.75 in. |
| Cylinder Diameter | 2.38 in. |
| Dust Tube | Yes |
| Dust Tube Material | Steel |
| Recoil Cutoff | No |
| Rebound Force | 1,726 Lb |
| Compression Force | 412 Lb |
| Construction | Steel |
| Piston Rod | Chrome-Plated |
| Unit Of Measure | Each |
| Description | Amortiguador Econoride 565.Er3014 |
| Compressed Length (In.) | 14.49 in.. |
| Compressed Length (Mm) | 14.49 in. |
| Dust Shield Included | Yes |
| Extended Length (In.) | 22.83 in.. |
| Extended Length (Mm) | 22.83 in. |
| Outer Housing Diameter (Mm) | 2.36 in. |
| Stroke | 8.35 |
| Adjustable Damping | No |
| Air Adjustable | No |
| Air Bladder | No |
| Air Ride Suspension | No |
| Bearing Plate Included | No |
| Boot Color | Black |
| Boot Included | No |
| Coil Over Springs Included | No |
| Coil Spring Included | No |
| Compressed Length | 14.49 in. |
| Extended Length | 22.83 in. |
| Gas Charged | Yes |
| Heavy Duty Crimping Rings | No |
| Lower Mount Type | Eyelet |
| Outer Housing Diameter | 2.37 in. |
| Upper Mount Type | Eyelet |
| Protective Aluminum Can | No |
| Interchange |
|---|
| 10-12703-000 |
| 10-12704-000 |
| 10-13021-000 |
| 10-13063-000 |
| 1012703000 |
| 1012704000 |
| 1013021000 |
| 1013211000 |
| 1829846000 |
| 315390 |
| 315600 |
| 315617 |
| 3156223 |
| 315623 |
| 410026 |
| 565.ER3014 |
| 65139 |
| 65140 |
| 65148 |
| 66418 |
| 66433 |
| 85917 |
| 85918 |
| 85958 |
| HD1215-0025 |
| M85918 |
| Year | Make | Model | Engine |
|---|---|---|---|
| 2024 | FREIGHTLINER | 108SD | |
| 2024 | FREIGHTLINER | 114SD | |
| 2024 | FREIGHTLINER | B2 | |
| 2024 | FREIGHTLINER | M2 112 | |
| 2023 | FREIGHTLINER | 108SD | |
| 2023 | FREIGHTLINER | 114SD | |
| 2023 | FREIGHTLINER | 122SD | |
| 2023 | FREIGHTLINER | B2 | |
| 2023 | FREIGHTLINER | M2 112 | |
| 2023 | THOMAS | SAF-T-LINER | |
| 2022 | FREIGHTLINER | 108SD | |
| 2022 | FREIGHTLINER | 114SD | |
| 2022 | FREIGHTLINER | 122SD | |
| 2022 | FREIGHTLINER | B2 | |
| 2022 | FREIGHTLINER | M2 112 | |
| 2022 | THOMAS | SAF-T-LINER | |
| 2022 | WESTERN STAR | 5700XE | |
| 2021 | FREIGHTLINER | 108SD | |
| 2021 | FREIGHTLINER | 114SD | |
| 2021 | FREIGHTLINER | 122SD | |
| 2021 | FREIGHTLINER | B2 | |
| 2021 | FREIGHTLINER | M2 112 | |
| 2021 | THOMAS | SAF-T-LINER | |
| 2021 | WESTERN STAR | 5700XE | |
| 2020 | FREIGHTLINER | 108SD | |
| 2020 | FREIGHTLINER | 114SD | |
| 2020 | FREIGHTLINER | 122SD | |
| 2020 | FREIGHTLINER | B2 | |
| 2020 | FREIGHTLINER | CASCADIA | |
| 2020 | FREIGHTLINER | COLUMBIA | |
| 2020 | FREIGHTLINER | CORONADO | |
| 2020 | FREIGHTLINER | M2 112 | |
| 2020 | THOMAS | SAF-T-LINER | |
| 2020 | WESTERN STAR | 4700SB | |
| 2020 | WESTERN STAR | 4800SB | |
| 2020 | WESTERN STAR | 4800SF | |
| 2020 | WESTERN STAR | 4900EX | |
| 2020 | WESTERN STAR | 4900FA | |
| 2020 | WESTERN STAR | 4900SA | |
| 2020 | WESTERN STAR | 5700XE | |
| 2019 | FREIGHTLINER | 108SD | |
| 2019 | FREIGHTLINER | 114SD | |
| 2019 | FREIGHTLINER | 122SD | |
| 2019 | FREIGHTLINER | B2 | |
| 2019 | FREIGHTLINER | CASCADIA | |
| 2019 | FREIGHTLINER | COLUMBIA | |
| 2019 | FREIGHTLINER | CORONADO | |
| 2019 | FREIGHTLINER | M2 112 | |
| 2019 | THOMAS | SAF-T-LINER | |
| 2019 | WESTERN STAR | 4700SB | |
| 2019 | WESTERN STAR | 4800SB | |
| 2019 | WESTERN STAR | 4800SF | |
| 2019 | WESTERN STAR | 4900EX | |
| 2019 | WESTERN STAR | 4900FA | |
| 2019 | WESTERN STAR | 4900SA | |
| 2019 | WESTERN STAR | 5700XE | |
| 2018 | FREIGHTLINER | 108SD | |
| 2018 | FREIGHTLINER | 114SD | |
| 2018 | FREIGHTLINER | 122SD | |
| 2018 | FREIGHTLINER | B2 | |
| 2018 | FREIGHTLINER | CASCADIA | |
| 2018 | FREIGHTLINER | COLUMBIA | |
| 2018 | FREIGHTLINER | CORONADO | |
| 2018 | FREIGHTLINER | M2 112 | |
| 2018 | THOMAS | SAF-T-LINER | |
| 2018 | WESTERN STAR | 4700SB | |
| 2018 | WESTERN STAR | 4800SB | |
| 2018 | WESTERN STAR | 4800SF | |
| 2018 | WESTERN STAR | 4900EX | |
| 2018 | WESTERN STAR | 4900FA | |
| 2018 | WESTERN STAR | 4900SA | |
| 2018 | WESTERN STAR | 5700XE | |
| 2017 | FREIGHTLINER | 108SD | |
| 2017 | FREIGHTLINER | 114SD | |
| 2017 | FREIGHTLINER | 122SD | |
| 2017 | FREIGHTLINER | B2 | |
| 2017 | FREIGHTLINER | CASCADIA | |
| 2017 | FREIGHTLINER | COLUMBIA | |
| 2017 | FREIGHTLINER | CORONADO | |
| 2017 | FREIGHTLINER | M2 112 | |
| 2017 | THOMAS | SAF-T-LINER | |
| 2017 | WESTERN STAR | 4700SB | |
| 2017 | WESTERN STAR | 4800SB | |
| 2017 | WESTERN STAR | 4800SF | |
| 2017 | WESTERN STAR | 4900EX | |
| 2017 | WESTERN STAR | 4900FA | |
| 2017 | WESTERN STAR | 4900SA | |
| 2017 | WESTERN STAR | 5700XE | |
| 2016 | FREIGHTLINER | 108SD | |
| 2016 | FREIGHTLINER | 114SD | |
| 2016 | FREIGHTLINER | 122SD | |
| 2016 | FREIGHTLINER | B2 | |
| 2016 | FREIGHTLINER | CASCADIA | |
| 2016 | FREIGHTLINER | COLUMBIA | |
| 2016 | FREIGHTLINER | CORONADO | |
| 2016 | FREIGHTLINER | M2 112 | |
| 2016 | THOMAS | SAF-T-LINER | |
| 2016 | WESTERN STAR | 4700SB | |
| 2016 | WESTERN STAR | 4800SB | |
| 2016 | WESTERN STAR | 4800SF | |
| 2016 | WESTERN STAR | 4900EX | |
| 2016 | WESTERN STAR | 4900FA | |
| 2016 | WESTERN STAR | 4900SA | |
| 2016 | WESTERN STAR | 5700XE | |
| 2015 | FREIGHTLINER | 108SD | |
| 2015 | FREIGHTLINER | 114SD | |
| 2015 | FREIGHTLINER | 122SD | |
| 2015 | FREIGHTLINER | ARGOSY | |
| 2015 | FREIGHTLINER | B2 | |
| 2015 | FREIGHTLINER | CASCADIA | |
| 2015 | FREIGHTLINER | COLUMBIA | |
| 2015 | FREIGHTLINER | CORONADO | |
| 2015 | FREIGHTLINER | M2 112 | |
| 2015 | THOMAS | SAF-T-LINER | |
| 2015 | WESTERN STAR | 4700SB | |
| 2015 | WESTERN STAR | 4800SB | |
| 2015 | WESTERN STAR | 4800SF | |
| 2015 | WESTERN STAR | 4900EX | |
| 2015 | WESTERN STAR | 4900FA | |
| 2015 | WESTERN STAR | 4900SA | |
| 2014 | FREIGHTLINER | 108SD | |
| 2014 | FREIGHTLINER | 114SD | |
| 2014 | FREIGHTLINER | 122SD | |
| 2014 | FREIGHTLINER | ARGOSY | |
| 2014 | FREIGHTLINER | B2 | |
| 2014 | FREIGHTLINER | CASCADIA | |
| 2014 | FREIGHTLINER | COLUMBIA | |
| 2014 | FREIGHTLINER | CORONADO | |
| 2014 | FREIGHTLINER | M2 112 | |
| 2014 | THOMAS | SAF-T-LINER | |
| 2014 | WESTERN STAR | 4700SB | |
| 2014 | WESTERN STAR | 4800SB | |
| 2014 | WESTERN STAR | 4800SF | |
| 2014 | WESTERN STAR | 4900EX | |
| 2014 | WESTERN STAR | 4900FA | |
| 2014 | WESTERN STAR | 4900SA | |
| 2013 | FREIGHTLINER | 108SD | |
| 2013 | FREIGHTLINER | 114SD | |
| 2013 | FREIGHTLINER | 122SD | |
| 2013 | FREIGHTLINER | ARGOSY | |
| 2013 | FREIGHTLINER | B2 | |
| 2013 | FREIGHTLINER | CASCADIA | |
| 2013 | FREIGHTLINER | COLUMBIA | |
| 2013 | FREIGHTLINER | CORONADO | |
| 2013 | FREIGHTLINER | M2 112 | |
| 2013 | THOMAS | SAF-T-LINER | |
| 2013 | WESTERN STAR | 4700SB | |
| 2013 | WESTERN STAR | 4800SB | |
| 2013 | WESTERN STAR | 4800SF | |
| 2013 | WESTERN STAR | 4900EX | |
| 2013 | WESTERN STAR | 4900FA | |
| 2013 | WESTERN STAR | 4900SA | |
| 2012 | FREIGHTLINER | 108SD | |
| 2012 | FREIGHTLINER | 114SD | |
| 2012 | FREIGHTLINER | ARGOSY | |
| 2012 | FREIGHTLINER | B2 | |
| 2012 | FREIGHTLINER | CASCADIA | |
| 2012 | FREIGHTLINER | COLUMBIA | |
| 2012 | FREIGHTLINER | CORONADO | |
| 2012 | FREIGHTLINER | M2 112 | |
| 2012 | THOMAS | SAF-T-LINER | |
| 2012 | WESTERN STAR | 4700SB | |
| 2012 | WESTERN STAR | 4800SB | |
| 2012 | WESTERN STAR | 4900EX | |
| 2012 | WESTERN STAR | 4900FA | |
| 2012 | WESTERN STAR | 4900SA | |
| 2011 | FREIGHTLINER | ARGOSY | |
| 2011 | FREIGHTLINER | B2 | |
| 2011 | FREIGHTLINER | CASCADIA | |
| 2011 | FREIGHTLINER | CENTURY CLASS | |
| 2011 | FREIGHTLINER | CLASSIC | |
| 2011 | FREIGHTLINER | COLUMBIA | |
| 2011 | FREIGHTLINER | CORONADO | |
| 2011 | FREIGHTLINER | FLD120 | |
| 2011 | FREIGHTLINER | M2 112 | |
| 2011 | THOMAS | SAF-T-LINER | |
| 2011 | WESTERN STAR | 4900EX | |
| 2011 | WESTERN STAR | 4900FA | |
| 2011 | WESTERN STAR | 4900SA | |
| 2010 | FREIGHTLINER | ARGOSY | |
| 2010 | FREIGHTLINER | B2 | |
| 2010 | FREIGHTLINER | CASCADIA | |
| 2010 | FREIGHTLINER | CENTURY CLASS | |
| 2010 | FREIGHTLINER | CLASSIC | |
| 2010 | FREIGHTLINER | COLUMBIA | |
| 2010 | FREIGHTLINER | CORONADO | |
| 2010 | FREIGHTLINER | FLD120 | |
| 2010 | FREIGHTLINER | M2 112 | |
| 2010 | THOMAS | SAF-T-LINER | |
| 2010 | WESTERN STAR | 4900EX | |
| 2010 | WESTERN STAR | 4900FA | |
| 2010 | WESTERN STAR | 4900SA | |
| 2009 | FREIGHTLINER | ARGOSY | |
| 2009 | FREIGHTLINER | B2 | |
| 2009 | FREIGHTLINER | CASCADIA | |
| 2009 | FREIGHTLINER | CENTURY CLASS | |
| 2009 | FREIGHTLINER | CLASSIC | |
| 2009 | FREIGHTLINER | CLASSIC XL | |
| 2009 | FREIGHTLINER | COLUMBIA | |
| 2009 | FREIGHTLINER | CORONADO | |
| 2009 | FREIGHTLINER | FLD120 | |
| 2009 | FREIGHTLINER | M2 112 | |
| 2009 | THOMAS | SAF-T-LINER | |
| 2009 | WESTERN STAR | 4900EX | |
| 2009 | WESTERN STAR | 4900FA | |
| 2009 | WESTERN STAR | 4900SA | |
| 2008 | FREIGHTLINER | ARGOSY | |
| 2008 | FREIGHTLINER | B2 | |
| 2008 | FREIGHTLINER | CASCADIA | |
| 2008 | FREIGHTLINER | CENTURY CLASS | |
| 2008 | FREIGHTLINER | CLASSIC | |
| 2008 | FREIGHTLINER | CLASSIC XL | |
| 2008 | FREIGHTLINER | COLUMBIA | |
| 2008 | FREIGHTLINER | CORONADO | |
| 2008 | FREIGHTLINER | FLD120 | |
| 2008 | FREIGHTLINER | M2 112 | |
| 2008 | THOMAS | SAF-T-LINER | |
| 2008 | WESTERN STAR | 4900EX | |
| 2008 | WESTERN STAR | 4900FA | |
| 2008 | WESTERN STAR | 4900SA | |
| 2007 | FREIGHTLINER | ARGOSY | |
| 2007 | FREIGHTLINER | B2 | |
| 2007 | FREIGHTLINER | CENTURY CLASS | |
| 2007 | FREIGHTLINER | CLASSIC | |
| 2007 | FREIGHTLINER | CLASSIC XL | |
| 2007 | FREIGHTLINER | COLUMBIA | |
| 2007 | FREIGHTLINER | CORONADO | |
| 2007 | FREIGHTLINER | FLD120 | |
| 2007 | FREIGHTLINER | M2 112 | |
| 2007 | THOMAS | SAF-T-LINER | |
| 2006 | FREIGHTLINER | ARGOSY | |
| 2006 | FREIGHTLINER | B2 | |
| 2006 | FREIGHTLINER | CENTURY CLASS | |
| 2006 | FREIGHTLINER | CLASSIC | |
| 2006 | FREIGHTLINER | CLASSIC XL | |
| 2006 | FREIGHTLINER | COLUMBIA | |
| 2006 | FREIGHTLINER | CORONADO | |
| 2006 | FREIGHTLINER | FLD112 | |
| 2006 | FREIGHTLINER | FLD120 | |
| 2006 | FREIGHTLINER | M2 112 | |
| 2006 | THOMAS | SAF-T-LINER | |
| 2005 | FREIGHTLINER | ARGOSY | |
| 2005 | FREIGHTLINER | B2 | |
| 2005 | FREIGHTLINER | CENTURY CLASS | |
| 2005 | FREIGHTLINER | CLASSIC | |
| 2005 | FREIGHTLINER | CLASSIC XL | |
| 2005 | FREIGHTLINER | COLUMBIA | |
| 2005 | FREIGHTLINER | CORONADO | |
| 2005 | FREIGHTLINER | FLD112 | |
| 2005 | FREIGHTLINER | FLD120 | |
| 2005 | FREIGHTLINER | M2 112 | |
| 2005 | THOMAS | SAF-T-LINER | |
| 2004 | FREIGHTLINER | ARGOSY | |
| 2004 | FREIGHTLINER | CENTURY CLASS | |
| 2004 | FREIGHTLINER | CLASSIC | |
| 2004 | FREIGHTLINER | CLASSIC XL | |
| 2004 | FREIGHTLINER | COLUMBIA | |
| 2004 | FREIGHTLINER | CORONADO | |
| 2004 | FREIGHTLINER | FLD112 | |
| 2004 | FREIGHTLINER | FLD120 | |
| 2004 | FREIGHTLINER | M2 112 | |
| 2004 | THOMAS | SAF-T-LINER | |
| 2003 | FREIGHTLINER | ARGOSY | |
| 2003 | FREIGHTLINER | CENTURY CLASS | |
| 2003 | FREIGHTLINER | CLASSIC | |
| 2003 | FREIGHTLINER | CLASSIC XL | |
| 2003 | FREIGHTLINER | COLUMBIA | |
| 2003 | FREIGHTLINER | CORONADO | |
| 2003 | FREIGHTLINER | FLD112 | |
| 2003 | FREIGHTLINER | FLD120 | |
| 2003 | FREIGHTLINER | M2 112 | |
| 2003 | THOMAS | SAF-T-LINER | |
| 2002 | FREIGHTLINER | ARGOSY | |
| 2002 | FREIGHTLINER | CENTURY CLASS | |
| 2002 | FREIGHTLINER | CLASSIC | |
| 2002 | FREIGHTLINER | CLASSIC XL | |
| 2002 | FREIGHTLINER | COLUMBIA | |
| 2002 | FREIGHTLINER | CORONADO | |
| 2002 | FREIGHTLINER | FLD112 | |
| 2002 | FREIGHTLINER | FLD120 | |
| 2002 | THOMAS | SAF-T-LINER | |
| 2001 | FREIGHTLINER | ARGOSY | |
| 2001 | FREIGHTLINER | CENTURY CLASS | |
| 2001 | FREIGHTLINER | CLASSIC | |
| 2001 | FREIGHTLINER | CLASSIC XL | |
| 2001 | FREIGHTLINER | COLUMBIA | |
| 2001 | FREIGHTLINER | CORONADO | |
| 2001 | FREIGHTLINER | FLC112 | |
| 2001 | FREIGHTLINER | FLD112 | |
| 2001 | FREIGHTLINER | FLD120 | |
| 2001 | STERLING TRUCK | AT9513 | |
| 2001 | THOMAS | SAF-T-LINER | |
| 2000 | FREIGHTLINER | ARGOSY | |
| 2000 | FREIGHTLINER | FLC112 | |
| 2000 | FREIGHTLINER | FLD112 | |
| 2000 | FREIGHTLINER | FLD120 | |
| 2000 | STERLING TRUCK | AT9513 | |
| 2000 | THOMAS | SAF-T-LINER | |
| 1999 | FREIGHTLINER | ARGOSY | |
| 1999 | FREIGHTLINER | FLC112 | |
| 1999 | FREIGHTLINER | FLD112 | |
| 1999 | FREIGHTLINER | FLD120 | |
| 1999 | STERLING TRUCK | AT9513 | |
| 1999 | THOMAS | SAF-T-LINER | |
| 1998 | FREIGHTLINER | FLC112 | |
| 1998 | FREIGHTLINER | FLD112 | |
| 1998 | FREIGHTLINER | FLD120 | |
| 1998 | THOMAS | SAF-T-LINER | |
| 1997 | FREIGHTLINER | FLC112 | |
| 1997 | FREIGHTLINER | FLD112 | |
| 1997 | FREIGHTLINER | FLD120 | |
| 1997 | THOMAS | SAF-T-LINER | |
| 1996 | FREIGHTLINER | FLC112 | |
| 1996 | FREIGHTLINER | FLD112 | |
| 1996 | FREIGHTLINER | FLD120 | |
| 1996 | THOMAS | SAF-T-LINER | |
| 1995 | FREIGHTLINER | FLC112 | |
| 1995 | FREIGHTLINER | FLD112 | |
| 1995 | FREIGHTLINER | FLD120 | |
| 1995 | THOMAS | SAF-T-LINER | |
| 1994 | FREIGHTLINER | FLC112 | |
| 1994 | FREIGHTLINER | FLD112 | |
| 1994 | FREIGHTLINER | FLD120 | |
| 1993 | FREIGHTLINER | FLC112 | |
| 1993 | FREIGHTLINER | FLD112 | |
| 1993 | FREIGHTLINER | FLD120 | |
| 1992 | FREIGHTLINER | FLC112 | |
| 1992 | FREIGHTLINER | FLD112 | |
| 1992 | FREIGHTLINER | FLD120 | |
| 1991 | FREIGHTLINER | FLC112 | |
| 1991 | FREIGHTLINER | FLC120 | |
| 1991 | FREIGHTLINER | FLD112 | |
| 1991 | FREIGHTLINER | FLD120 | |
| 1990 | FREIGHTLINER | FLC112 | |
| 1990 | FREIGHTLINER | FLC120 | |
| 1990 | FREIGHTLINER | FLD120 | |
| 1989 | FREIGHTLINER | FLC112 | |
| 1989 | FREIGHTLINER | FLC120 | |
| 1989 | FREIGHTLINER | FLD120 | |
| 1988 | FREIGHTLINER | FLC112 | |
| 1988 | FREIGHTLINER | FLC120 | |
| 1988 | FREIGHTLINER | FLD120 | |
| 1987 | FREIGHTLINER | FLC112 | |
| 1987 | FREIGHTLINER | FLC120 | |
| 1986 | FREIGHTLINER | FLC112 | |
| 1986 | FREIGHTLINER | FLC120 | |
| 1985 | FREIGHTLINER | FLC112 | |
| 1985 | FREIGHTLINER | FLC120 | |
| 1984 | FREIGHTLINER | FLC120 | |
| 1983 | FREIGHTLINER | FLC120 | |
| 1982 | FREIGHTLINER | FLC120 | |
| 1981 | FREIGHTLINER | FLC120 |
The Shock Absorber is engineered for reliable suspension damping on Heavy Duty commercial vehicle applications. Designed as a direct replacement, the part delivers consistent performance and dependable results across a wide range of fleet configurations. The component meets OEM specification.
Related Parts
Easy Returns
Hassle-free process
24/7 Online
Shop anytime
Secure Checkout
SSL safe payment
Wide Range
Hundreds of parts
Fast Shipping
Same-day dispatch
