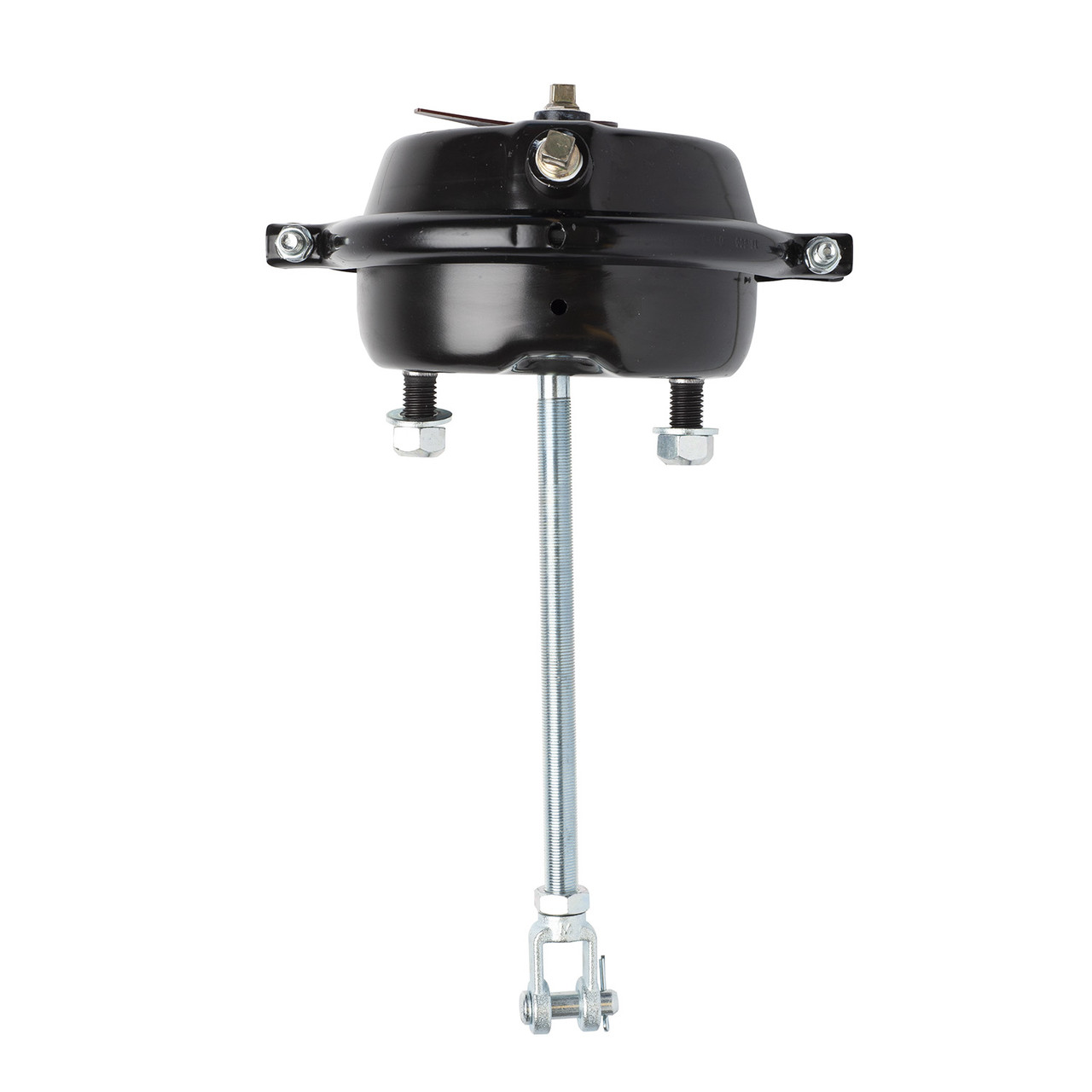

Brake Chamber 3.00" Long Stroke 4.20" 90° - 179.SC30L
Part#: AAA971SC30L
Features and Benefits
- Service-only brake chamber for type-30 long-stroke drum brake axle configurations
- Long stroke type provides extended push rod travel for type-30 long-stroke geometry
- Available stroke of 3.00" for compatibility with long-stroke type-30 drum brake systems
- Stud spacing ensures correct mounting bracket hole alignment for secure chamber attachment
- Air port position enables correct air supply line routing on long-stroke type-30 installations
- Clampband orientation ensures correct diaphragm positioning in long-stroke type-30 housings
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Actuator Type Size | 30 |
|---|---|
| Stroke Type | Long |
| Available Stroke | 3.00 in. |
| A - Length from mounting bracket to end of Spring Housing | 4.20 in. |
| D - Dimension at Service Clampband | 10.20 in. |
| E - Stud Spacing | 4.75 in. |
| J - Pushrod Length from face of Service Housing | 10.00 in. |
| K - Distance to Clevis Pin centerline from face of Service Housing | Distance to Clevis Pin centerline from face of Service Housing |
| T - Air Port position | 90° |
| S1 - Service Clampband position | 0° |
| Weight | 10.70 lbs |
| Quantity | 1 |
| Interchange |
|---|
| 009500L003059N |
| 009500L003070N |
| 013-004-027 |
| 10013621 |
| 10900 |
| 10902 |
| 10903 |
| 12600526 |
| 127300001 |
| 127300002 |
| 127300003 |
| 127300007 |
| 127300008 |
| 127300009 |
| 127300010 |
| 127300011 |
| 127300012 |
| 127300013 |
| 127300018 |
| 127300019 |
| 127300020 |
| 127300021 |
| 127300030 |
| 127300031 |
| 127300035 |
| 127300037 |
| 127300051 |
| 127300100 |
| 127300103 |
| 127300104 |
| 127300107 |
| 127300108 |
| 127300111 |
| 127300112 |
| 127300113 |
| 127300114 |
| 127300115 |
| 127300205 |
| 127300211 |
| 127300212 |
| 127300213 |
| 127300214 |
| 127300215 |
| 127300220 |
| 127300221 |
| 127300301 |
| 127300302 |
| 127300306 |
| 127300311 |
| 127300312 |
| 127300313 |
| 12900517 |
| 1431001 |
| 149665 |
| 165117 |
| 166221 |
| 166373 |
| 19QE4121P2 |
| 19QE4121P3 |
| 19QE4131M |
| 19QE4154P2 |
| 3000006 |
| 30002SC-LS |
| 30S-LS |
| 30SCL3 |
| 30SCN3 |
| 3513 |
| 3515 |
| 3832059 |
| 40502151 |
| 61170334 |
| 61170335 |
| 85107277 |
| 98832-063 |
| 98832-071 |
| ABPN42A30SC3ND |
| BSC-30LS |
| C-31875-1 |
| C-31975-2 |
| C-31975-3 |
| HD30S-LS |
| HD30SLS |
| HDX127300050 |
| HDX127300051 |
| HDX127300052 |
| HDX127300053 |
| HDX165117 |
| HDXSC30L |
| K025360 |
| M10WR139671 |
| MA36302 |
| N42A-30SC3D |
| PLBSC30LS |
| S-18151 |
| S127300004 |
| S127300005 |
| S127300006 |
| S127300007 |
| S127300010 |
| S127300011 |
| S127300012 |
| S127300013 |
| S127300030 |
| S127300031 |
| S127300041 |
| S127300042 |
| S127300050 |
| S127300051 |
| S127300052 |
| S127300053 |
| SC3000-LS |
| SC30L |
| WA30SC3 |
| XSC30L |
| XX-30SCLS |
The Brake Chamber is a long stroke Type 30 design, engineered for reliable actuation on Heavy Duty commercial vehicle axle applications. Featuring 3.00" of available travel, the unit delivers consistent clamping force and dependable performance across a wide range of operational configurations.
