5 Push-To-Connect Air Brake NPT Fi for Freightliner Cascadia & Others - 177.12C746B

5 Push-To-Connect Air Brake NPT Fi for Freightliner Cascadia & Others - 177.12C746B

Part#: AAA69212C746B

Features and Benefits

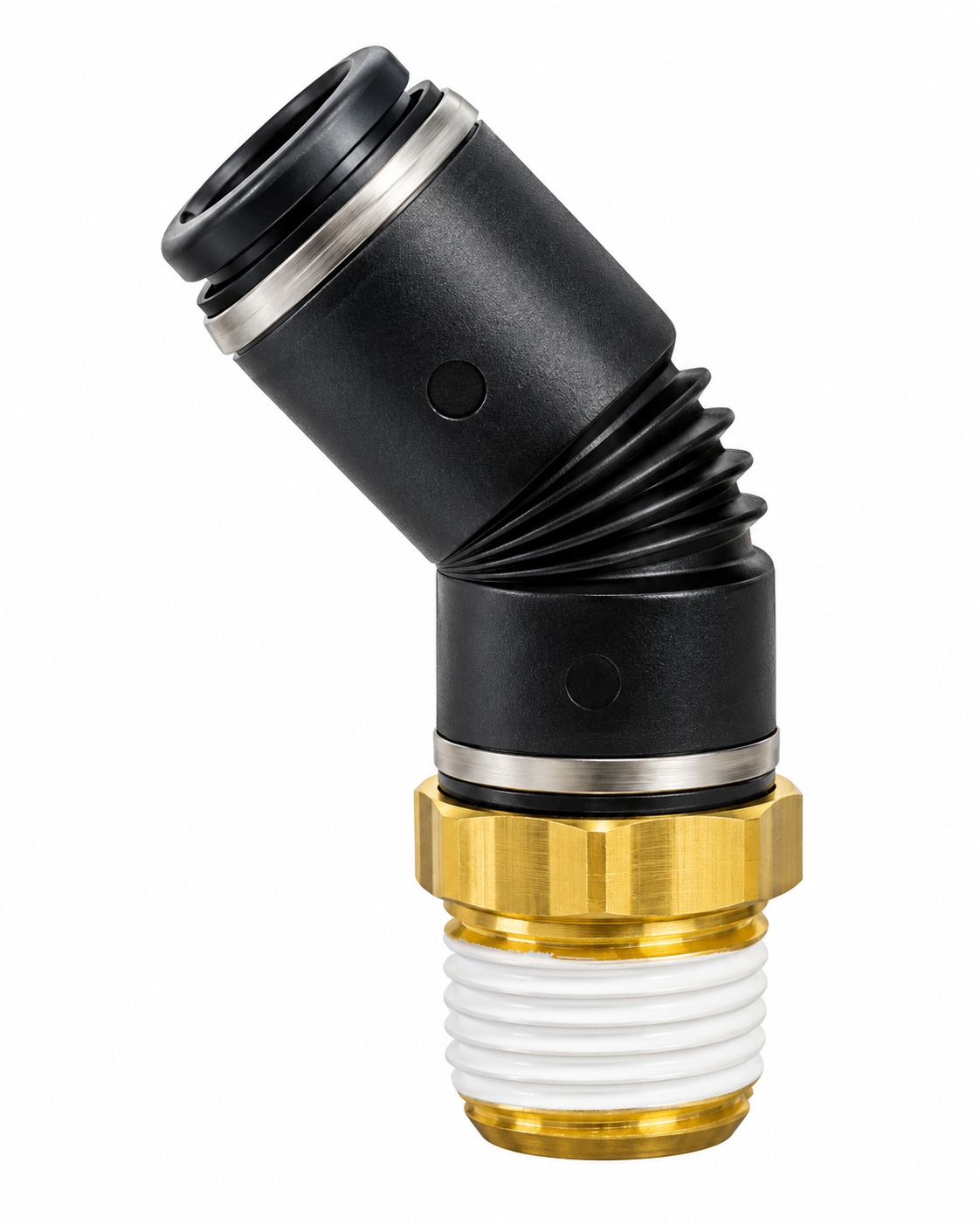

Push-to-connect male elbow design provides optimized performance for heavy-duty truck
Dot air brake design provides optimized performance for heavy-duty truck applications
Set of 45 swivel elbow design provides optimized performance for heavy-duty truck
Set of 3/8" connection fits standard truck air and fluid system ports without adapters
Set of 3/8" diameter matches OEM specification for a leak-free, secure fit
Set of 1/4" connection fits standard truck air and fluid system ports without adapters

Warranty

Up to 3 years warranty

Please contact customer service to know more details

SPECIFICATIONS
INTERCHANGE
APPLICATION
DESCRIPTION

Product Type	Push-To-Connect Male Elbow
Fitting Type	DOT Air Brake
Fitting Configuration	45° Swivel Elbow
Tube Connection	3/8 in
Tube Outside Diameter	3/8 in
Pipe Connection	1/4 in
Pipe Thread	1/4"-18 NPT
Thread Type	Male NPT
Thread Position	Swivel
Elbow Angle	45°
Connection Style	Push-To-Connect
Body Material	Composite
Collet Material	Brass
Tubing Material	Nylon Air-Brake Tubing
Tubing Standard	SAE J844
Installation	Push-In
Swivel Function	Positioning / Installation
Regulatory Standard	Yes
Unit Of Measure	Each
Dimensions	5 × 3.3 × 0.75 in
Length	4.00 in
Product Description	Composite Body W/Brass Collet; Fits 3/8In Tube, 1/4In Pipe
A-Z Item Type	Fitting - 45° Swivel Male Elbow

Interchange

016464
016947
177.11746B
379PTC-6-4
APC54S6X4
C2454-6-4
ETP-QL1374-6B
KV2K11-35S
M-4562
PL1374-6D
PROBF6-122CF
QL1374-6B
QL1374-6D
S754PMT-6-4

Year	Make	Model	Engine

	FREIGHTLINER	CASCADIA
	INTERNATIONAL	LT
	KENWORTH	T680
	PETERBILT	579
	VOLVO	VNL

The PLZ 45 DEG SWL M ELB is a heavy-duty fitting - elbow engineered for commercial truck applications. With Push-To-Connect Male Elbow Product Type, it ensures optimal performance in demanding fleet environments. It is built to handle the demands of heavy commercial truck environments and engineered for long-term reliability. Designed to meet or exceed OEM specifications for fit, form, and function.
