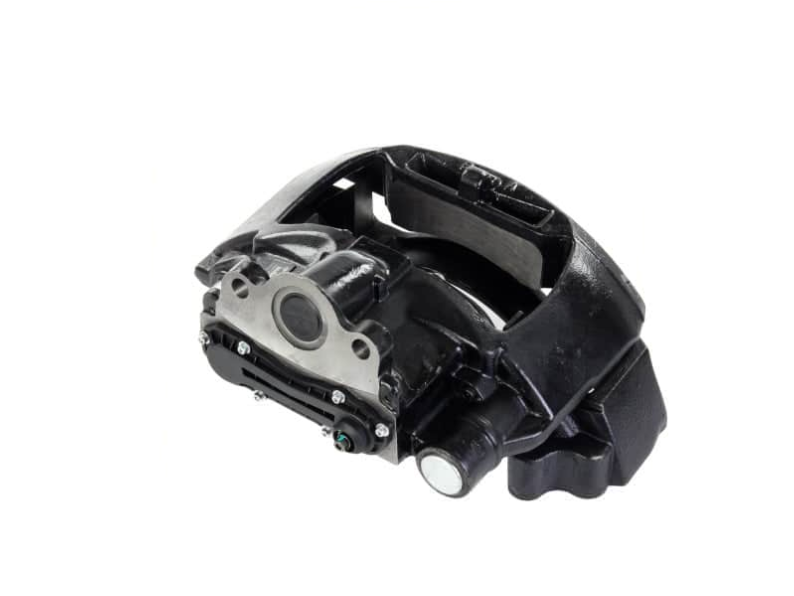

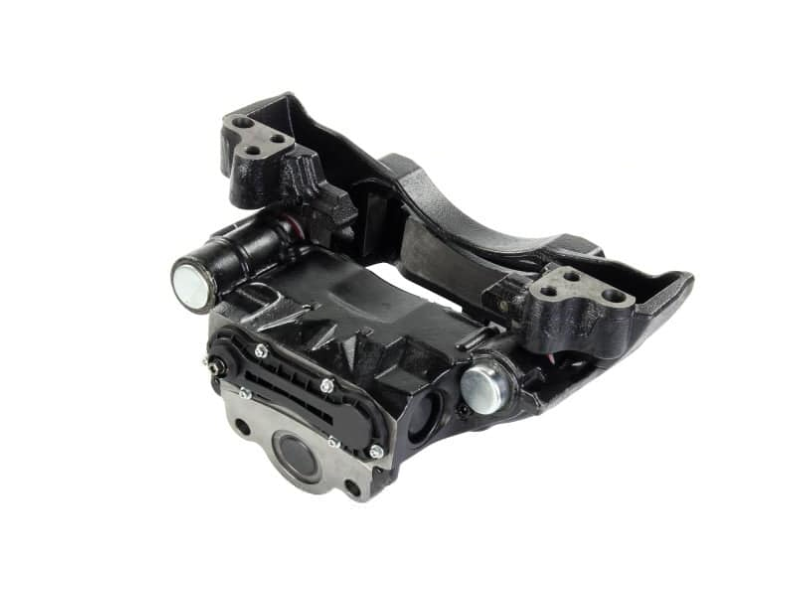

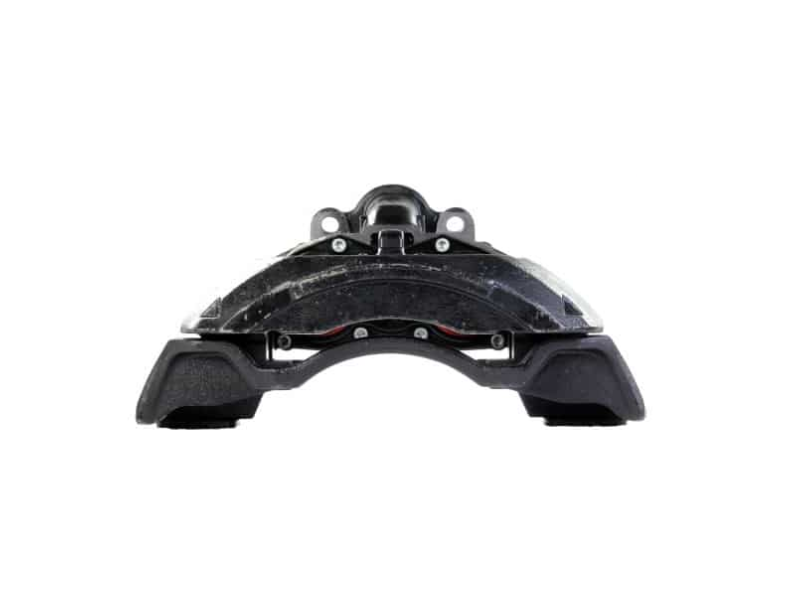

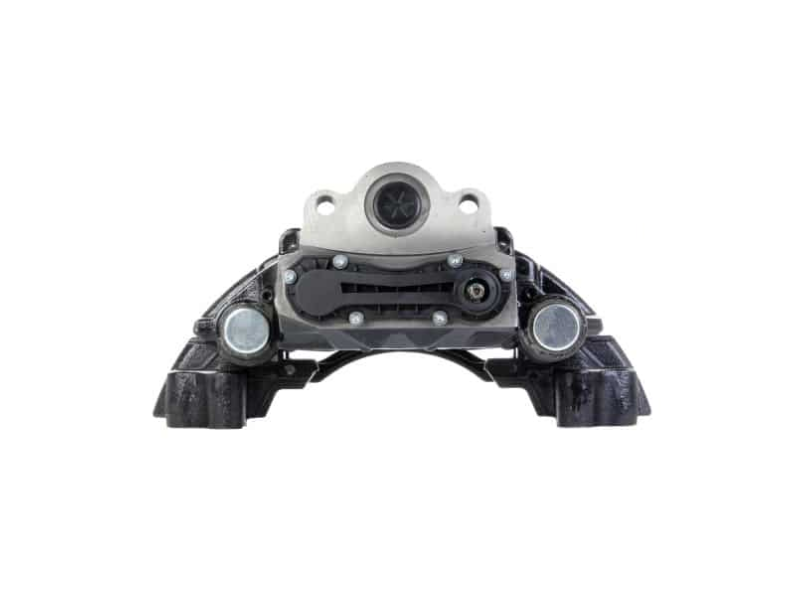

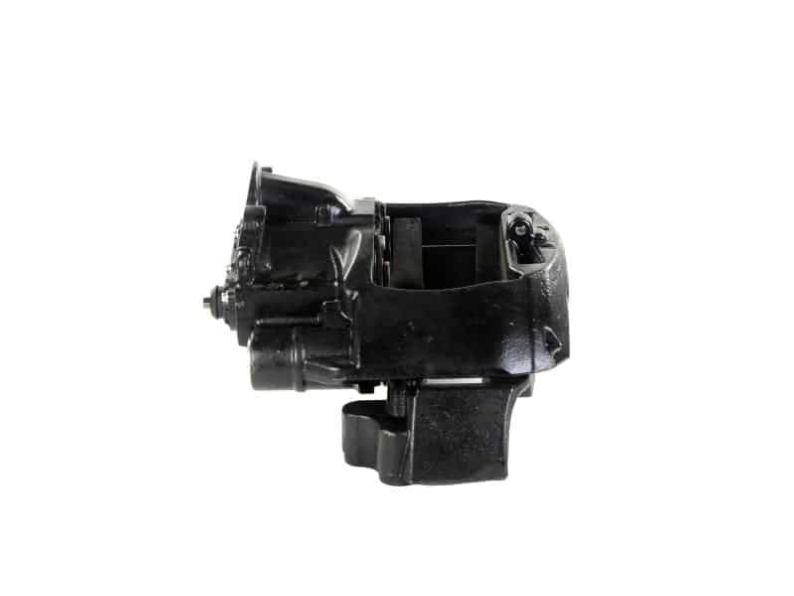

Brake Caliper ADB22X Right Hand Radial Mount M16 X 2.0 - 158.K081256/K081256
Part#: AAA851K081256
Features and Benefits
- Right-hand position for passenger-side ADB22X radial mount disc brake caliper
- Radial mount type for perpendicular chamber positioning on ADB22X radial configurations
- Multi-point carrier mounting with secure threaded engagement for radial carrier attachment
- Angled chamber mounting position for correct actuator geometry on ADB22X radial layouts
- Dual piston configuration for balanced pad clamping force across the disc brake surface
- Pad length and FMSI specification for precise brake pad selection on ADB22X radial applications
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Weight | 73.00 lbs |
|---|---|
| Distance A-B | 2 in. |
| Carrier Mounting Holes | 6 |
| Left or Right | Right |
| Axial or Radial Mount | Radial |
| Mounting Hole Size | M16 X 2.0 |
| Model | ADB22X |
| FMSI | 1369 |
| Chamber Mounting Position | Axial 12 degrees |
| Numbers of Pistons | 2 |
| Brake Chamber Angle | 12 degrees |
| Pad Length | 8.28 in. |
| Interchange |
|---|
| 10AC9957X |
| 158K081256 |
| 99B900322 |
| ABPN42AAK081256 |
| BXK081256 |
| BXK109957X |
| CTRB957RXNC |
| EXK109957X |
| K021299 |
| K081256 |
| K081258 |
| K097846 |
| K097846SC |
| K109957X |
| K147136 |
| K147136X |
| OTR22X01V |
| RAD109957X |
| TDAMK081256X |
The Brake Caliper is a right-hand ADB22X disc design, engineered for dependable clamping force on Heavy Duty commercial vehicle axle applications. The unit delivers reliable actuation and consistent stopping performance across a wide range of service and maintenance configurations.
