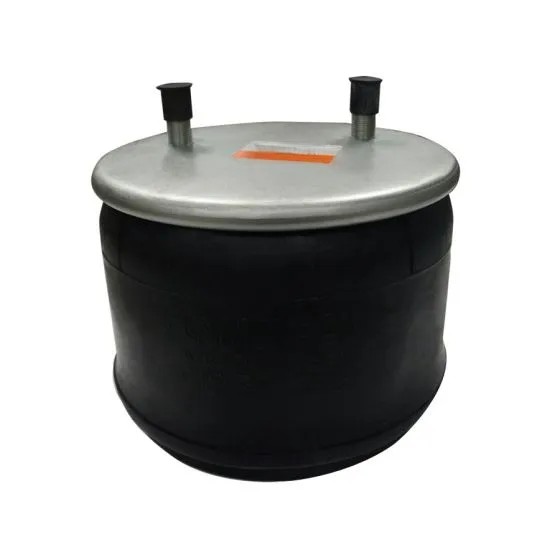

Air Spring 10.2" Top x 9.13" Bottom Dia - 566.ER8709
Part#: AAA5018709
Features and Benefits
- 1/4-18 NPT air inlet for a reliable, leak-resistant pneumatic line connection
- 3/4-16 UNF top and 1/2-13 UNC bottom studs for secure, dual-point frame and axle attachment
- 6" compressed height for a compact, stable profile during full suspension compression
- 10.2" top plate diameter with 2 studs and 5.51" center-to-center for precise bracket alignment
- 4.76" bellows height and 1.1" piston height for controlled stroke and consistent load response
- 19.4" extended height and 13.19" maximum diameter for wide suspension travel and load distribution
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Extended Height | 19.4 in. |
|---|---|
| Compressed Height | 6 in. |
| Top Plate Diameter | 10.2 in. |
| Top Plate Thickness | 1.57 in. |
| Top Plate Center to Center Diameter | 5.51 in. |
| Top Plate Hole/Stud Quantity | 2 |
| Bottom Plate Diameter | 9.13 in. |
| Piston Height | 1.1 in. |
| Bellows Height | 4.76 in. |
| Maximum Diameter | 13.19 in. |
| Air Inlet Thread Size | 1/4-18 NPT |
| Mounting Stud Thread Size (Top) | 3/4-16 UNF |
| Mounting Stud Thread Size (Bottom) | 1/2-13 UNC |
| Type | Rolling Lobe |
| Design Height | 1 in. |
| Extended Height | 19.3 in. |
| Compressed Height | 4.9 in. |
| Maximum Diameter | 13.9 in. |
| Bottom Plate Diameter | 9.17 in. |
| Bottom Plate Hole/Stud Quantity | 1 |
| Load (Lbs) @80 PSI | 7400 |
| Load (Lbs) @100 PSI | 9250 |
| Interchange |
|---|
| 1010.515P460 |
| 1010.515P460H |
| 1010.5P460 |
| 101015P453 |
| 101015S453 |
| 1010515P480 |
| 10105P460 |
| 1098709 |
| 14849HDV8709 |
| 1DK25A8709 |
| 1R13103 |
| 1R13159 |
| 1R13262 |
| 1R13362 |
| 1T17CA5 |
| 21800 |
| 3300 |
| 3528709 |
| 38709KPP |
| 4528709 |
| 4528709L |
| 551415 |
| 566.ER8709 |
| 566207154 |
| 566263073 |
| 64205 |
| 64645 |
| 65420 |
| 68826 |
| 73401 |
| 73891 |
| 78709CP |
| 8453 |
| 8460 |
| 8709 |
| 8751 |
| 888709 |
| 9525 |
| AB1DK25A8709 |
| AB1DK25B8751 |
| ABPN32018709 |
| AM8709 |
| AMAB1DK25A8709 |
| AS38709K |
| AS8453 |
| AS8453TR |
| AS8708 |
| AS8709 |
| AS87090 |
| ASA928230 |
| ASPR10C158709 |
| ASRC10C158709 |
| C013580471 |
| C20900 |
| C21800 |
| CONAS8709 |
| CS113159 |
| FIRW013588709 |
| FIW013588709 |
| FLTA1R13159 |
| FS8709 |
| GDY1R13159 |
| HKA180 |
| M3560 |
| MPNW013588709 |
| NAD26906 |
| PR10C158709 |
| RC10C158709 |
| RL87090 |
| RML78709CP |
| S20900 |
| S21800 |
| SP558709KP |
| TAS8709 |
| TR8709 |
| W013588709 |
| W013588751 |
| WA018709 |
| WA018709C |
The Air Spring rolling lobe design delivers 7,400 lbs load capacity at 80 psi, providing dependable suspension support for Heavy Duty commercial vehicle applications. Engineered for consistent load bearing and smooth ride quality across a wide range of trailer and chassis configurations.
