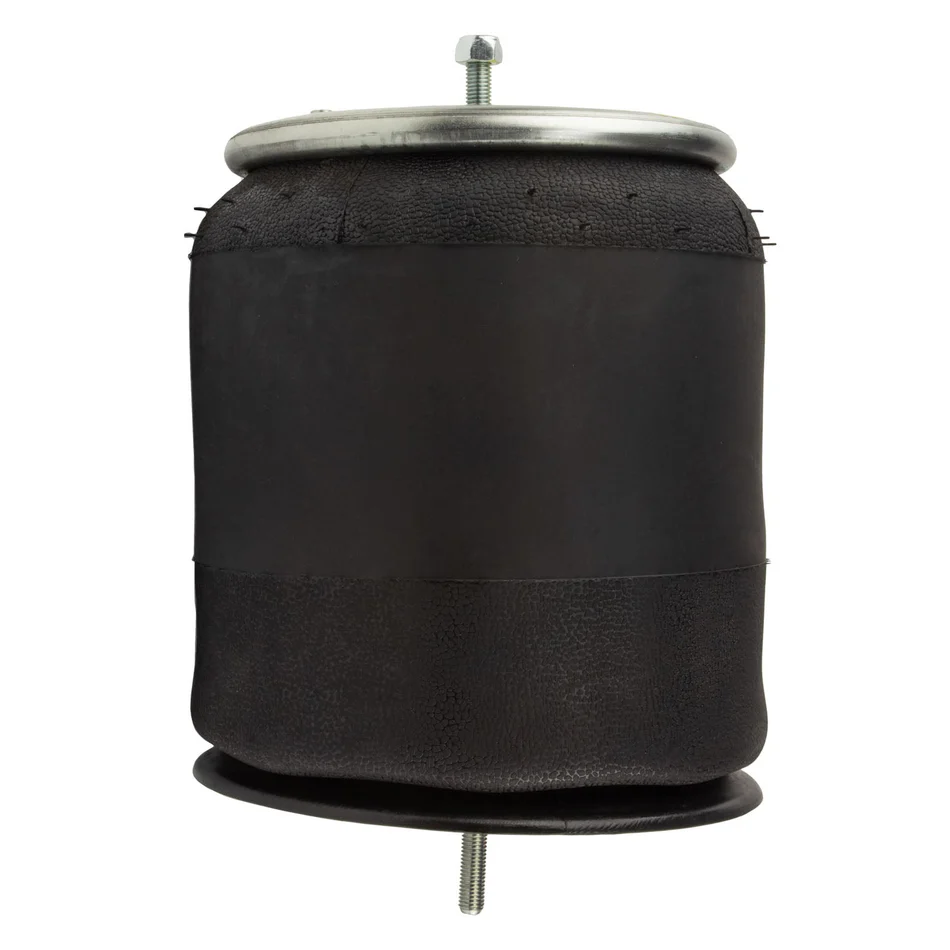

Air Spring Rolling Lobe 9" Top x 10.04" Bottom Dia Plastic - AB1DF23H-P1206

Air Spring Rolling Lobe 9" Top x 10.04" Bottom Dia Plastic - AB1DF23H-P1206

Part#: AAA50123HP1206

Features and Benefits

Rolling lobe type with plastic bottom plate for smooth response and lightweight axle contact
6.9" compressed height for a stable, compact profile during full suspension compression
9" top plate diameter with 3 top and 1 bottom stud for secure multi-point mounting attachment
2.75" top plate center-to-center diameter for precise alignment with frame bracket hole pattern
10.04" bottom plate diameter for a broad, stable load distribution surface on the axle seat
23" extended height and 12.6" maximum diameter for maximum suspension travel and load coverage

Warranty

Up to 3 years warranty

Please contact customer service to know more details

SPECIFICATIONS
INTERCHANGE
DESCRIPTION

Type	Rolling Lobe
Bottom Plate Type	Plastic
Top Plate Hole/Stud Quantity	3
Top Plate Diameter	9 in.
Top Plate Center to Center Diameter	2.75 in.
Bottom Plate Hole/Stud Quantity	1
Bottom Plate Diameter	10.04 in.
Compressed Height	6.9 in.
Extended Height	23 in.
Maximum Diameter	12.6 in.
Top Plate Width	9.in.

Interchange

1R121049
1R12654
21132004
21132005
21244322
21669088
3451456
3528468
4528468
566.CT75561
566.ER8468
566CT75561
566ER8468
75561
8468
910S17P1206
AB1DF23HP1206
AB1DK23KC395
AMAB1DF23HP1206
AS81206
AS8468
AS84680
FS8468
FSIW01M588468
GYR1R12654
S26009
STM1R12654
W01M3588468
W01M588468
WA018468C

The Air Spring rolling lobe design features a plastic bottom plate, offering a lightweight and dependable suspension solution for Heavy Duty commercial vehicle applications. Engineered for consistent load bearing and smooth ride quality across a wide range of trailer and chassis configurations.
