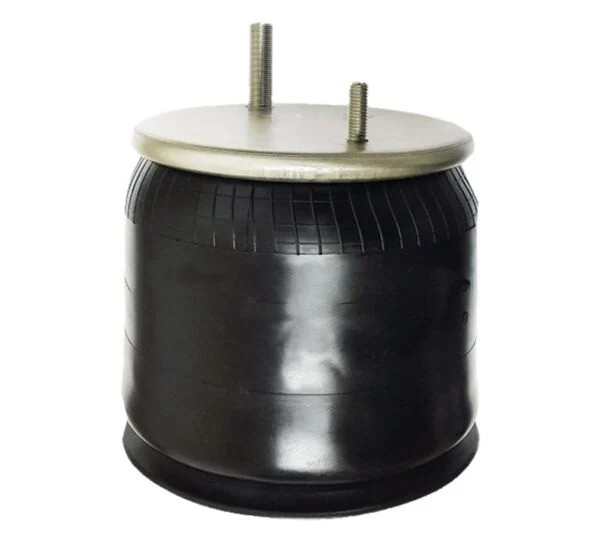

Air Spring Rolling Lobe 9" Top x 9.53" Bottom Dia Plastic - AB1DK20D-9565
Part#: AAA50120D9565
Features and Benefits
- Rolling lobe type with plastic bottom plate for smooth response and lightweight axle contact
- 3.9" compressed height for an ultra-compact collapsed profile during full suspension compression
- 5100 lbs load at 80 PSI and 6400 lbs at 100 PSI for rated load support across pressures
- 8" design height with 9" top plate and 5.5" center-to-center for precise frame bracket alignment
- 80 CPM natural frequency and 1 bottom stud for controlled suspension vibration isolation
- 14.4" extended height and 11.4" maximum diameter for defined suspension travel and load distribution
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Type | Rolling Lobe |
|---|---|
| Load (Lbs) @80 PSI | 5100 |
| Load (Lbs) @100 PSI | 6400 |
| Natural Frequency (CPM) | 80 |
| Design Height | 8 in. |
| Bottom Plate Type | Plastic |
| Top Plate Diameter | 9 in. |
| Top Plate Center to Center Diameter | 5.5 in. |
| Bottom Plate Hole/Stud Quantity | 1 |
| Bottom Plate Diameter | 9.53 in. |
| Compressed Height | 3.9 in. |
| Extended Height | 14.4 in. |
| Maximum Diameter | 11.4 in. |
| Interchange |
|---|
| 1R12324 |
| 1T15LC2.5 |
| 2027912C1 |
| 3291 |
| 4529565 |
| 4529565L |
| 566207055 |
| 566243067 |
| 69627 |
| 928138 |
| 9565 |
| 9663 |
| 9912P206 |
| AS8206 |
| AS9565 |
| C013582179 |
| CS112324 |
| FS9565 |
| NBD12639 |
| W013589565 |
The Air Spring rolling lobe design delivers 5,100 lbs load capacity at 80 psi, providing dependable suspension support for Heavy Duty commercial vehicle applications. Engineered for consistent load bearing and smooth ride quality across a wide range of trailer and chassis configurations.
