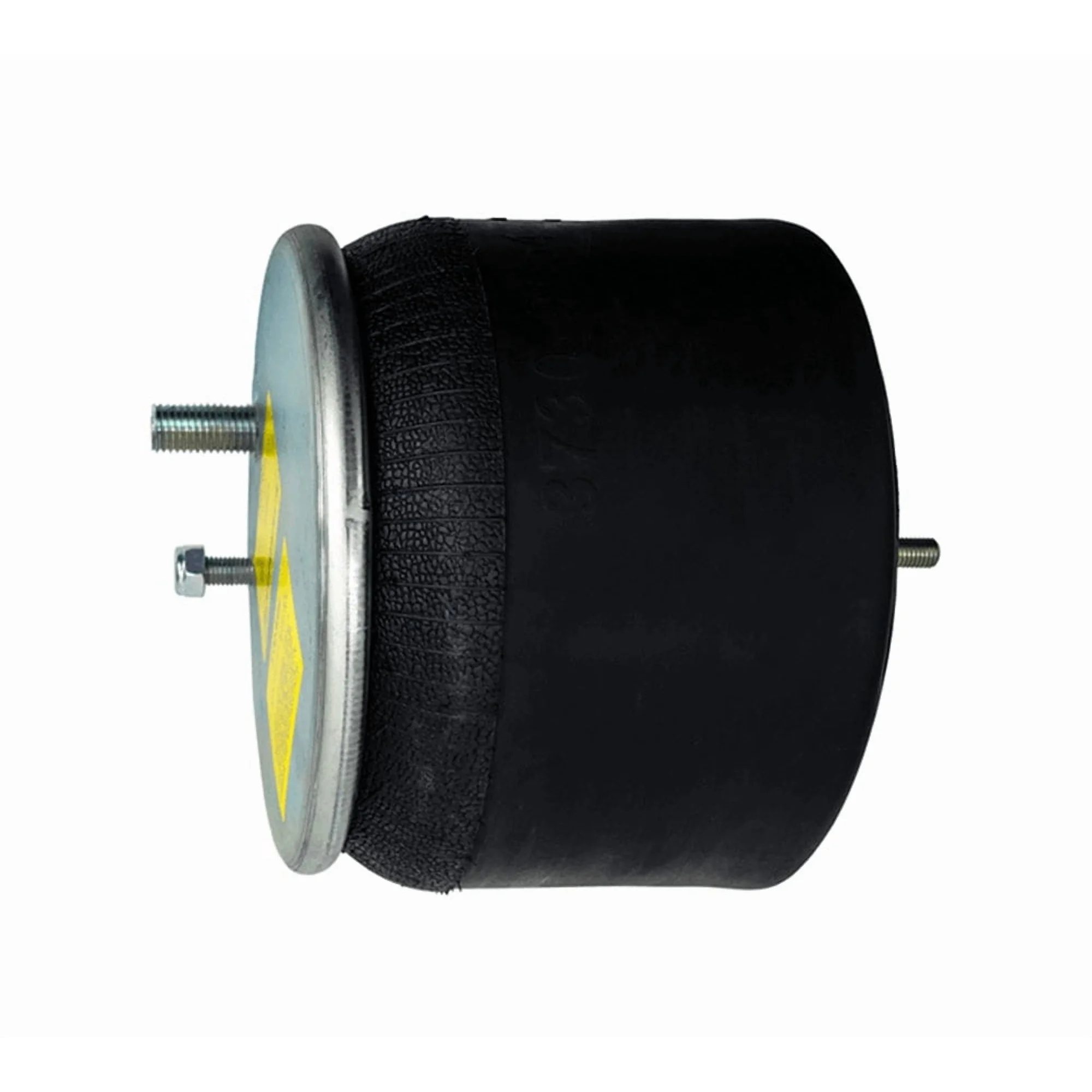

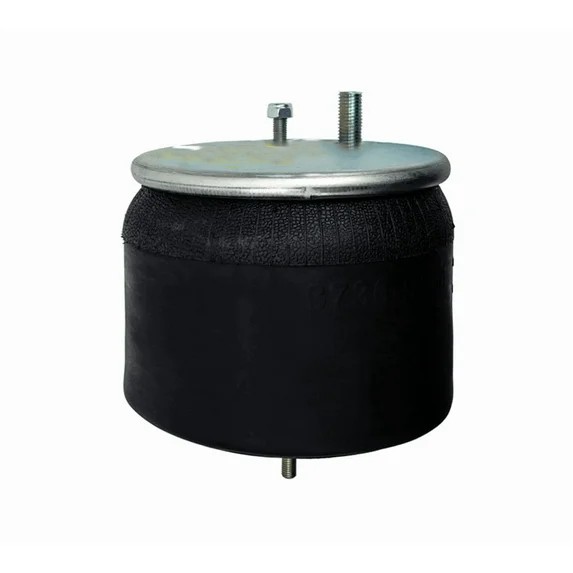

Air Spring Rolling Lobe 9" Top x 8.19" Bottom Dia Plastic - AB1DK20L-9554
Part#: AAA50120L9554
Features and Benefits
- Rolling lobe type with plastic bottom plate for smooth response and lightweight axle contact
- 5.1" compressed height for a compact, stable profile during full suspension compression
- 4900 lbs load at 80 PSI for reliable, load-rated suspension performance
- 9.5" design height with 9" top plate diameter for consistent operating height and frame alignment
- 82 CPM natural frequency with 2 top and 1 bottom stud for controlled suspension isolation
- 14.8" extended height and 8.19" bottom plate diameter for defined travel and load distribution
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Type | Rolling Lobe |
|---|---|
| Load (Lbs) @80 PSI | 4900 |
| Natural Frequency (CPM) | 82 |
| Design Height | 9.5 in. |
| Bottom Plate Type | Plastic |
| Top Plate Hole/Stud Quantity | 2 |
| Top Plate Diameter | 9 in. |
| Bottom Plate Hole/Stud Quantity | 1 |
| Bottom Plate Diameter | 8.19 in. |
| Compressed Height | 5.1 in. |
| Extended Height | 14.8 in. |
| Interchange |
|---|
| 20462941 |
| 3529554 |
| 57QL59M |
| 60716002 |
| 60716002L |
| 607162 |
| 68608 |
| 750302 |
| 9554 |
| 9678 |
| AB1DK20L9554 |
| C01M582212 |
| E14011 |
| FS9554 |
| S26124 |
| W013589554 |
| W014559678 |
The Air Spring rolling lobe design delivers 4,900 lbs load capacity at 80 psi, providing dependable suspension support for Heavy Duty commercial vehicle applications. Engineered for consistent load bearing and smooth ride quality across a wide range of trailer and chassis configurations.
