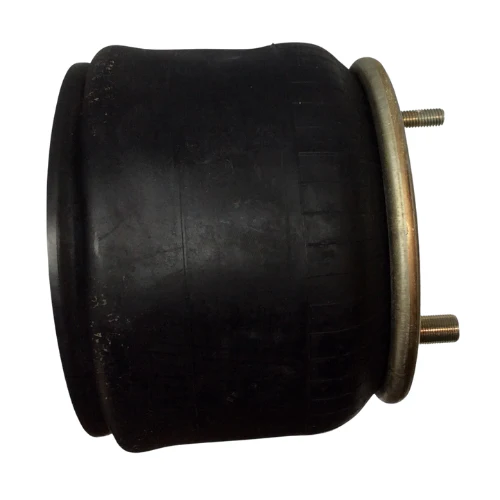

Air Spring Rolling Lobe 9" Top x 9.49" Bottom Dia Plastic - AB1DK23H-9105
Part#: AAA50123H9105
Features and Benefits
- Rolling lobe type with plastic bottom plate for smooth response and lightweight axle contact
- 6.1" compressed height for a compact, stable profile during full suspension compression
- 5700 lbs load at 80 PSI and 7200 lbs at 100 PSI for rated load support across pressures
- 9" design height with 9" top plate and 7.87" bottom center-to-center for precise alignment
- 82 CPM natural frequency with 2 top and 4 bottom studs for multi-point secure mounting
- 15.5" extended height and 12.6" maximum diameter for broad suspension travel and load coverage
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Type | Rolling Lobe |
|---|---|
| Load (Lbs) @80 PSI | 5700 |
| Load (Lbs) @100 PSI | 7200 |
| Natural Frequency (CPM) | 82 |
| Design Height | 9 in. |
| Bottom Plate Type | Plastic |
| Top Plate Hole/Stud Quantity | 2 |
| Top Plate Diameter | 9 in. |
| Bottom Plate Hole/Stud Quantity | 4 |
| Bottom Plate Diameter | 9.49 in. |
| Bottom Plate Center to Center Diameter | 7.87 in. |
| Compressed Height | 6.1 in. |
| Extended Height | 15.5 in. |
| Maximum Diameter | 12.6 in. |
| Interchange |
|---|
| 1003589105C |
| 1099105 |
| 1577501 |
| 161223 |
| 1R12132 |
| 1R12152 |
| 200154 |
| 27003377 |
| 3529105 |
| 365143 |
| 3918334 |
| 412418 |
| 4338 |
| 4529105 |
| 4529105L |
| 5065 |
| 554770C1 |
| 57009105 |
| 6336205 |
| 64445 |
| 64448 |
| 90557038 |
| 91012A319 |
| 91012A341 |
| 91012P319 |
| 91016P333 |
| 9105 |
| 9113 |
| 9302 |
| AB1DK23H9113 |
| AB1R12132 |
| AS0015 |
| AS4338 |
| AS8319 |
| AS91050 |
| B1245 |
| B365143 |
| EFS9105 |
| FIRW013589105 |
| FIW013589105 |
| FS9105 |
| K27137295 |
| M3516 |
| MD1003009 |
| RFS9105 |
| S1245 |
| S36228 |
| S365143 |
| SC2039 |
| TR9105 |
| W013589105 |
| W013589113 |
| W013589302 |
| WA019105C |
The Air Spring rolling lobe design delivers 5,700 lbs load capacity at 80 psi, providing dependable suspension support for Heavy Duty commercial vehicle applications. Engineered for consistent load bearing and smooth ride quality across a wide range of trailer and chassis configurations.
