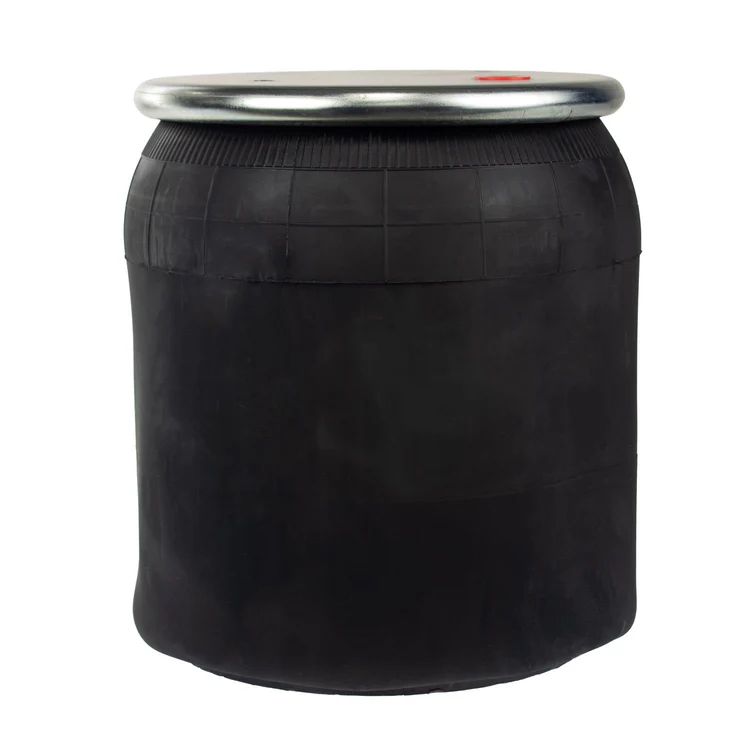

Air Spring Rolling Lobe 9" Top Dia Plastic - AB1DK23L-8864
Part#: AAA50123L8864
Features and Benefits
- Rolling lobe type with plastic bottom plate for smooth response and lightweight axle contact
- 7.8" compressed height for a compact, stable profile during full suspension compression
- 5600 lbs load at 80 PSI and 7100 lbs at 100 PSI for rated load support across pressures
- 16" design height with 9" top plate and 6.2" center-to-center for precise frame bracket alignment
- 65 CPM natural frequency with 3 top and 1 bottom stud for controlled suspension isolation
- 25.2" extended height and 12.6" maximum diameter for maximum suspension travel and load distribution
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Type | Rolling Lobe |
|---|---|
| Load (Lbs) @80 PSI | 5600 |
| Load (Lbs) @100 PSI | 7100 |
| Natural Frequency (CPM) | 65 |
| Design Height | 16 in. |
| Bottom Plate Type | Plastic |
| Top Plate Hole/Stud Quantity | 3 |
| Top Plate Diameter | 9 in. |
| Top Plate Center to Center Diameter | 6.2 in. |
| Bottom Plate Hole/Stud Quantity | 1 |
| Compressed Height | 7.8 in. |
| Extended Height | 25.2 in. |
| Maximum Diameter | 12.6 in. |
| Interchange |
|---|
| 1R121097 |
| 308716 |
| 4528864 |
| 66666 |
| 8864 |
| C811011 |
| C811013 |
| FXAB1DK23L8864 |
| MAF8864 |
| W013588864 |
| W016875470 |
| W017038863 |
| W017038864 |
| W017038865 |
The Air Spring rolling lobe design delivers 5,600 lbs load capacity at 80 psi, providing dependable suspension support for Heavy Duty commercial vehicle applications. Engineered for consistent load bearing and smooth ride quality across a wide range of trailer and chassis configurations.
