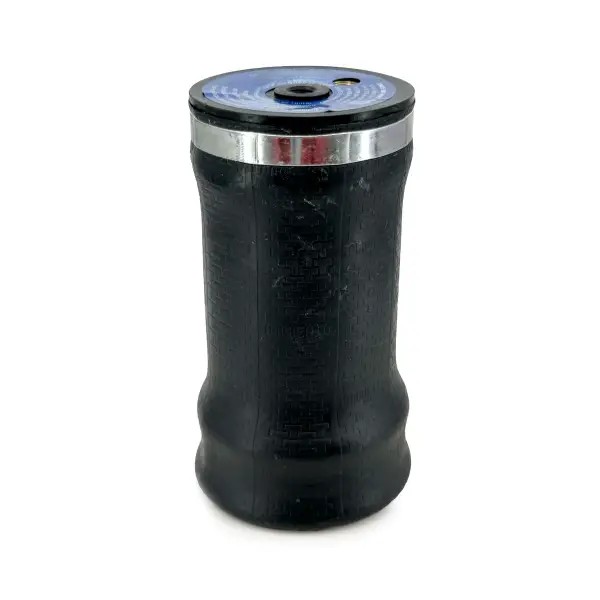

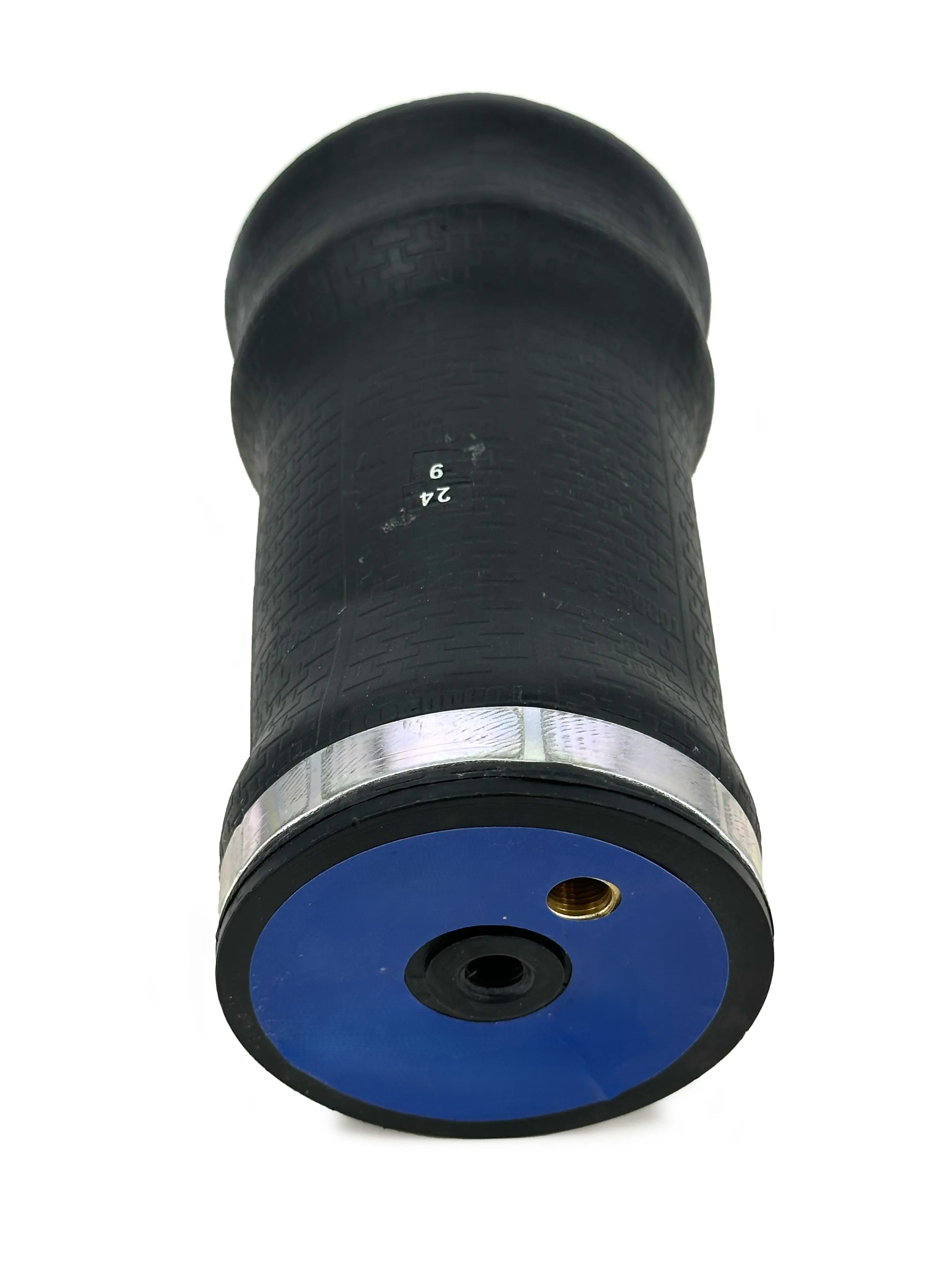

Air Spring Sleeve 2.99" Top x 2.9" Bottom Dia - ABSZ70-7108
Part#: AAA501707108
Features and Benefits
- Sleeve type for a compact, smooth-acting cabin suspension air spring design
- 2.4" compressed height for an ultra-compact profile during full cabin compression
- 874 lbs load at 80 PSI and 1094 lbs at 100 PSI for rated cabin load support across pressures
- 5.5" design height with 2.99" top plate and 0.75" center-to-center for precise alignment
- 110 CPM natural frequency with 2 top and 1 bottom stud for controlled cabin isolation
- 5.6" maximum diameter for a compact, space-efficient cabin suspension mounting profile
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Type | Sleeve |
|---|---|
| Load (Lbs) @80 PSI | 874 |
| Load (Lbs) @100 PSI | 1094 |
| Natural Frequency (CPM) | 110 |
| Design Height | 5.5 in. |
| Top Plate Hole/Stud Quantity | 2 |
| Top Plate Diameter | 2.99 in. |
| Top Plate Center to Center Diameter | 0.75 in. |
| Bottom Plate Hole/Stud Quantity | 1 |
| Bottom Plate Diameter | 2.9 in. |
| Compressed Height | 2.4 in. |
| Extended Height | 1 in. |
| Maximum Diameter | 5.6 in. |
| Interchange |
|---|
| 07067A |
| 11020075 |
| 1S5057 |
| 2500012C1 |
| 2507756C1 |
| 3537108 |
| 501.14600999999999 |
| 67852 |
| 7108 |
| ABSZ707103 |
| ATMABSZ707108 |
| CB7108 |
| FS7108 |
| SC29Y108 |
| SZ708077P02 |
| TR7108 |
| W023587108 |
| W026007108 |
| WA027108C |
The Air Spring sleeve type cabin design delivers 874 lbs load capacity at 80 psi, providing reliable cab suspension support for Heavy Duty commercial vehicle applications. Engineered for consistent load bearing and smooth ride quality across a wide range of cab and chassis configurations.
