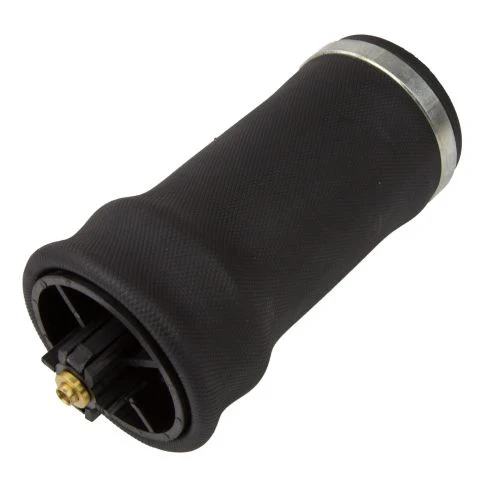

Air Spring Sleeve 2.99" Top x 2.89" Bottom Dia Aluminum - ABSZ70-7109

Air Spring Sleeve 2.99" Top x 2.89" Bottom Dia Aluminum - ABSZ70-7109

Part#: AAA501707109

Features and Benefits

Sleeve type with aluminum bottom plate for lightweight, corrosion-resistant cabin mounting
Parallel bottom plate alignment for accurate, orientation-specific cabin bracket installation
2.4" compressed height for an ultra-compact profile during full cabin compression
874 lbs load at 80 PSI and 1094 lbs at 100 PSI for rated cabin load support across pressures
4" design height with 2.99" top plate and 2.25" bottom center-to-center for precise alignment
6.5" extended height and 5.6" maximum diameter with 115 CPM natural frequency for cabin isolation

Warranty

Up to 3 years warranty

Please contact customer service to know more details

SPECIFICATIONS
INTERCHANGE
DESCRIPTION

Type	Sleeve
Load (Lbs) @80 PSI	874
Load (Lbs) @100 PSI	1094
Natural Frequency (CPM)	115
Design Height	4 in.
Bottom Plate Type	Aluminum
Top Plate Hole/Stud Quantity	1
Top Plate Diameter	2.99 in.
Bottom Plate Hole/Stud Quantity	1
Bottom Plate Diameter	2.89 in.
Bottom Plate Center to Center Diameter	2.25 in.
Bottom Plate Alignment	Parallel
Compressed Height	2.4 in.
Extended Height	6.5 in.
Maximum Diameter	5.6 in.

Interchange

11020077
1102K077
1104K002
14849HDV7109CB
3040W023587109
68037
69624
7109
730380
8235FS7109
90557109
ABSZ707109
EFS7109
FIW023587109
FS7109
FS7121
G2297109600
KW1104K002
S23983
SC29Y109
T811000
TDAFS7109
W023587109
W026007109
W026007121

The Air Spring sleeve type cabin design features an aluminum bottom plate, offering dependable cab suspension performance for Heavy Duty commercial vehicle applications. Engineered for consistent load bearing and smooth ride quality across a wide range of cab and chassis configurations.
