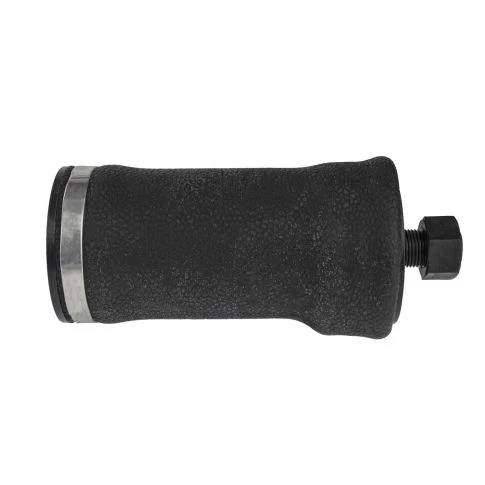

Air Spring Sleeve 2.99" Top x 2.91" Bottom Dia - ABSZ70-7132
Part#: AAA501707132
Features and Benefits
- Sleeve type for a compact, smooth-acting cabin suspension air spring design
- 2.2" compressed height for an ultra-compact profile during full cabin compression
- 688 lbs load at 80 PSI and 860 lbs at 100 PSI for rated cabin load support across pressures
- 5.2" design height with 2.99" top plate and 2.91" bottom plate for precise bracket alignment
- 1 top and 1 bottom stud for a secure, single-point frame and axle bracket attachment
- 8.5" extended height and 4.4" maximum diameter for defined cabin suspension travel range
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Type | Sleeve |
|---|---|
| Load (Lbs) @80 PSI | 688 |
| Load (Lbs) @100 PSI | 860 |
| Design Height | 5.2 in. |
| Top Plate Hole/Stud Quantity | 1 |
| Top Plate Diameter | 2.99 in. |
| Bottom Plate Hole/Stud Quantity | 1 |
| Bottom Plate Diameter | 2.91 in. |
| Compressed Height | 2.2 in. |
| Extended Height | 8.5 in. |
| Maximum Diameter | 4.4 in. |
| Interchange |
|---|
| 1S4234 |
| 6257CA |
| 6754 |
| 7132 |
| 7166 |
| ABSZ707166 |
| AM7132 |
| AMABSZ707132 |
| FIRW027037166 |
| FS6754 |
| FS7132 |
| FS7166 |
| R816003 |
| S34580 |
| W023587166 |
| W027036754 |
| W027037166 |
The Air Spring sleeve type cabin design delivers 688 lbs load capacity at 80 psi, providing reliable cab suspension support for Heavy Duty commercial vehicle applications. Engineered for consistent load bearing and smooth ride quality across a wide range of cab and chassis configurations.
