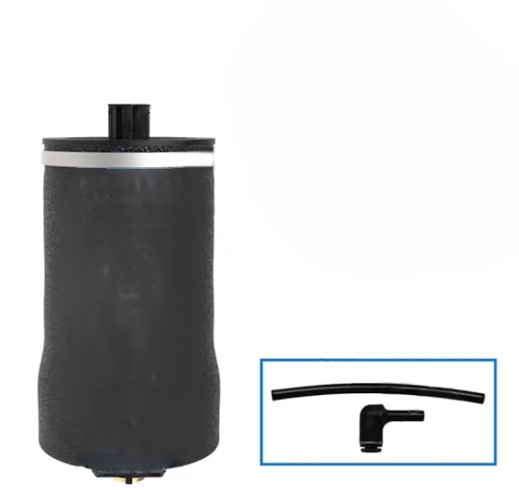

Air Spring Sleeve 2.98" Top x 2.9" Bottom Dia - ABSZ70-K001

Air Spring Sleeve 2.98" Top x 2.9" Bottom Dia - ABSZ70-K001

Part#: AAA50170K001

Features and Benefits

Sleeve type for a compact, smooth-acting cabin suspension air spring design
3.8" compressed height for an ultra-compact profile during full cabin compression
2.98" top plate diameter with 1 top stud for precise cabin bracket mounting alignment
2.9" bottom plate diameter with 1 bottom stud for stable, secure cabin seat contact
5.6" extended height for reliable cabin suspension travel under variable load conditions
Compact sleeve design for space-efficient cabin suspension mounting

Warranty

Up to 3 years warranty

Please contact customer service to know more details

SPECIFICATIONS
INTERCHANGE
DESCRIPTION

Type	Sleeve
Top Plate Hole/Stud Quantity	1
Top Plate Diameter	2.98 in.
Bottom Plate Hole/Stud Quantity	1
Bottom Plate Diameter	2.9 in.
Compressed Height	3.8 in.
Extended Height	5.6 in.

Interchange

1104K001
25333101

The Air Spring sleeve type cabin design provides dependable cab suspension support with an extended height of 5.6", offering a compact and reliable solution for Heavy Duty commercial vehicle applications. Engineered for consistent load bearing and performance across a wide range of configurations.
