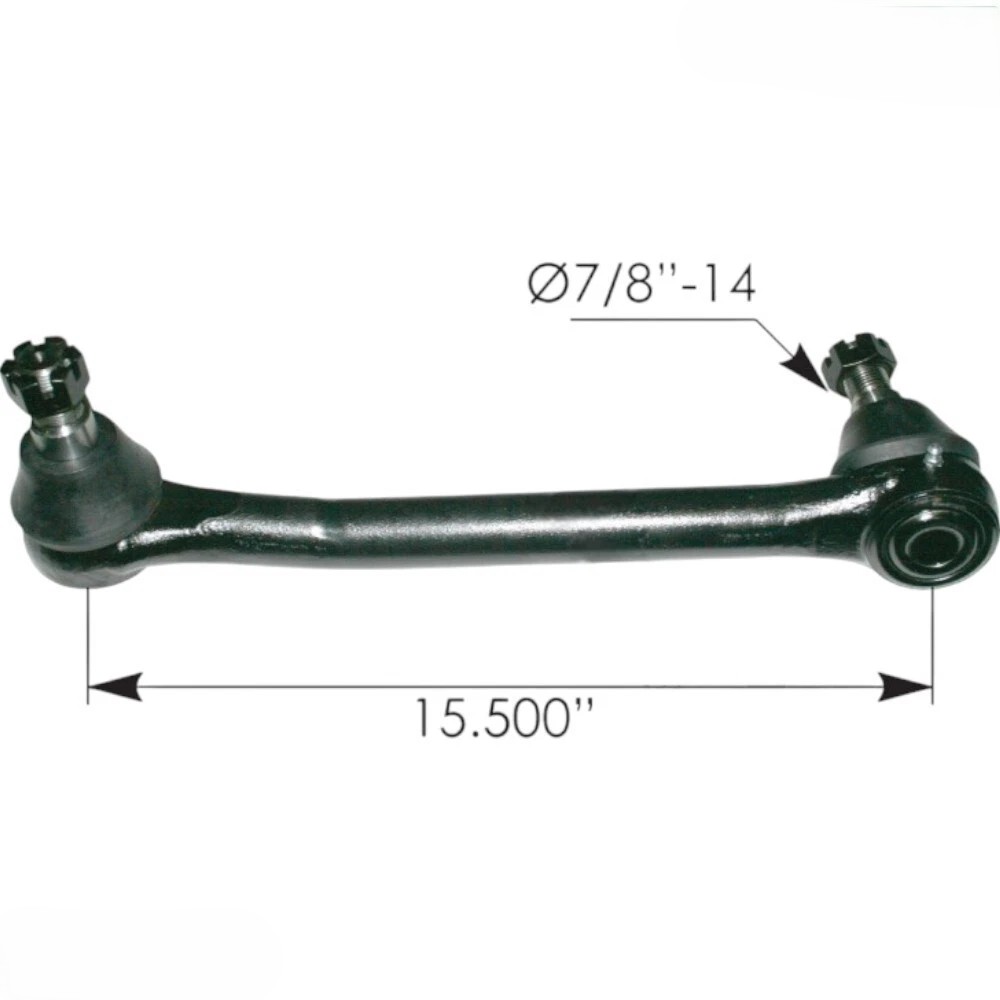

Drag Link 15.50" C to C N-S 1.38" Shaft Male 7/8"-14 Taper Pin - 463.DS1280
Part#: AAA364DS1280
Features and Benefits
- N-S design for steering compatibility
- Forged steel for high steering strength
- 15.50" center to center for replacement fit
- 1-1/8"-12 RH thread for sleeve fit
- 14.50" end to end for bolt-in replacement
- 1.38" shaft diameter for wobble-free fit
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Center to Center Length | 15.50 in. |
|---|---|
| Type | N-S |
| End to End Length | 14.50 in. |
| Shaft Diameter | 1.38 in. |
| Male/Female | Male |
| Shaft Side Thread (E) | 1-1/8"-12 (RH) |
| Taper Pin Minor Diameter | 1.08 in. |
| Taper Pin Major Diameter | 1.25 in. |
| Taper Pin Length | 1.36 in. |
| Taper Pin Thread | 7/8"-14 |
| Interchange |
|---|
| 346520 |
| 501736 |
| AUM463DS1280 |
| DLP1539B |
| DS1280 |
| L24VU8036A11 |
| L24VU8036A12 |
| L24VU8036B11 |
| L24VU8036B11L |
| L24VU8036C11 |
| SDS1280 |
The Drag Link delivers a 15.50" mounting span, forming a robust connector between the steering gear and knuckle on Heavy Duty commercial vehicles. Sized with a 1.38" shaft diameter, the rod maintains consistent front-end responsiveness under varying load conditions.
