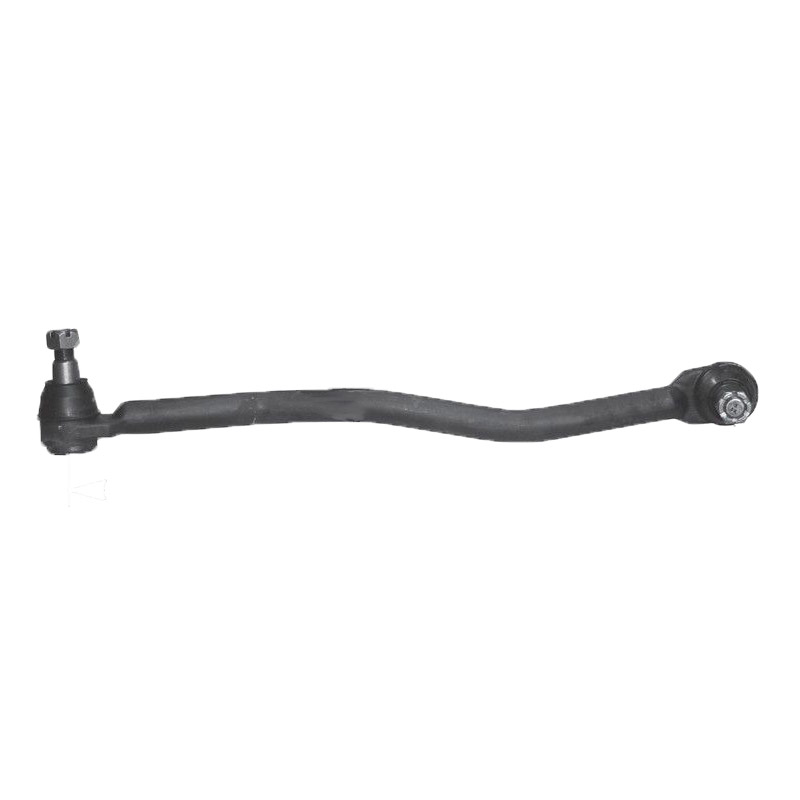

Drag Link 27.88" C to C 1.44" Shaft 1-1/8"-12 Right Hand 7/8"-14 Taper Pin - 463.DS7538

Drag Link 27.88" C to C 1.44" Shaft 1-1/8"-12 Right Hand 7/8"-14 Taper Pin - 463.DS7538

Part#: AAA364DS7538

Features and Benefits

Drag link for front linkage
Heavy duty steel for maximum strength
Set of 27.88andquot; Center to center span for linkage fit
Set of 1-1/8andquot;-12 rh thread for sleeve fit
Matching ends for directional install
Set of 17.50 lb weight for easy handling

Select Alternative Part #

463.DS7538

Warranty

Up to 3 years warranty

Please contact customer service to know more details

SPECIFICATIONS
INTERCHANGE
APPLICATION
DESCRIPTION

Center to Center Length	27.88 in.
End to End Length	14.50 in.
Shaft Diameter	1.44 in.
Shaft Side Thread (E)	1-1/8"-12 (RH)
Taper Pin Minor Diameter	1.08 in.
Taper Pin Major Diameter	1.25 in.
Taper Pin Length	1.36 in.
Taper Pin Thread	7/8"-14
Ends Type	Non-replaceable / identical
Construction Type	Forged heavy-duty steel
Weight	17.50 lbs

Interchange

346588
DS7538
L24VU8338A11
L24VU8338A12

Year	Make	Model	Engine

	FREIGHTLINER	CASCADIA
	INTERNATIONAL	LT
	KENWORTH	T680
	PETERBILT	579
	VOLVO	VNL

Drag link for front linkage Heavy duty steel for maximum strength 27.88" center to center span for linkage fit 1-1/8"-12 RH thread for sleeve fit Matching ends for directional install 17.50 lb weight for easy handling
