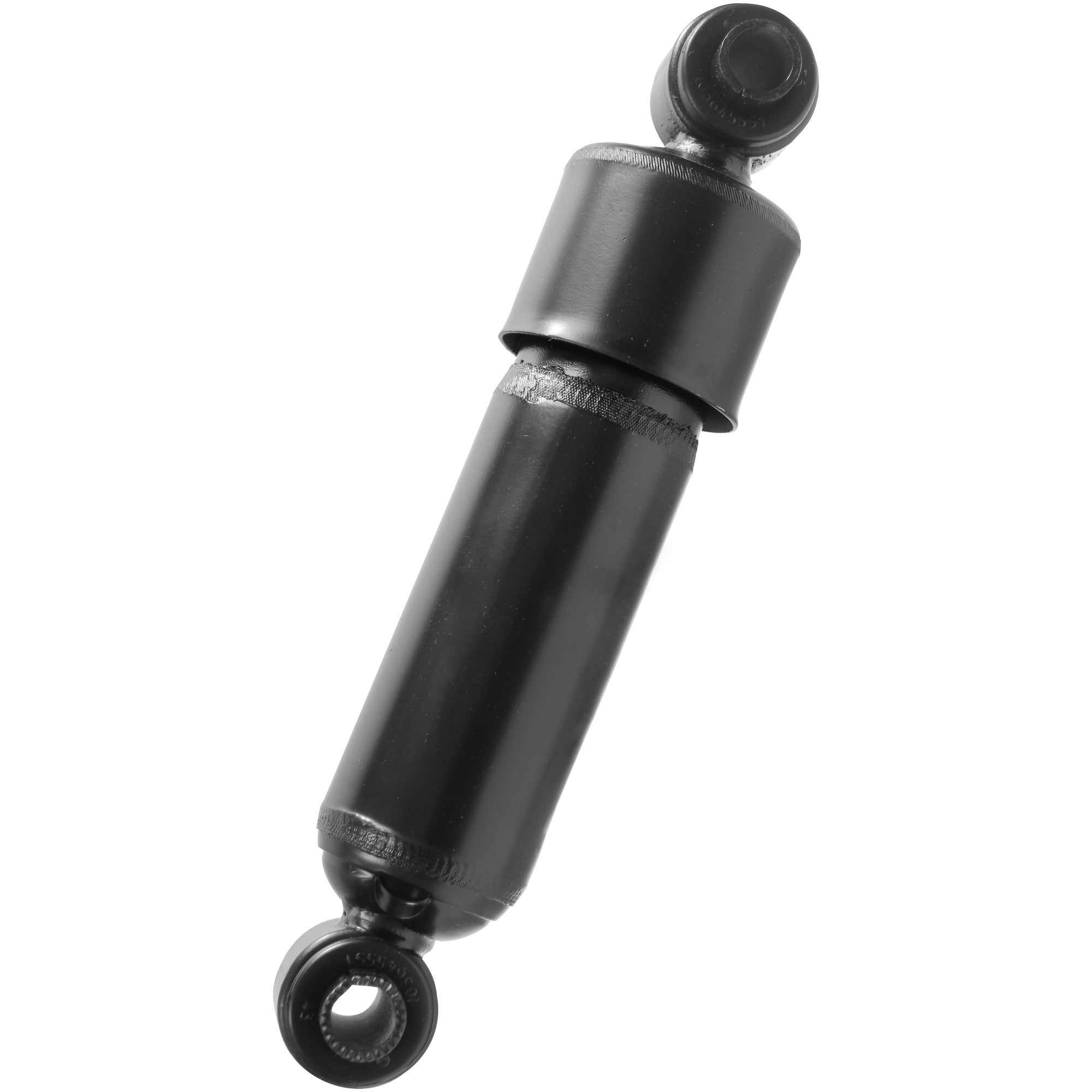

Cab Shock Absorber Black 9.38" Gas Charged - 66109
Part#: 11063-0024
Features and Benefits
- Designed to handle the demands of high mileage and severe use vehicles with cab suspensions
- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality arc welds up to 360° for durability
- 10 Stage valving tuned specifically to each vehicle adjusts to road extremes while larger 1-3/8 in. bore provides more efficient and consistent control most applications
- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life most applications
- All weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2 in. reserve tube holds more fluid to improve performance when required
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Color | Black |
|---|---|
| Mounting Hardware Included | No |
| Extended Length (IN) | 9.375 |
| Extended Length (MM) | 238.099999999999994 |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 2.7/16" Sleeve OAL |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 2.7/16" Sleeve OAL |
| Gas Charged | Yes |
| Compressed Length (IN) | 8 |
| Compressed Length (MM) | 203.19999999999999 |
| Travel Length (IN) | 1.375 |
| Travel Length (MM) | 34.9 |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Body Color | Black |
| Grade Type | Premium |
| Adjustable Rebound | No |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Includes Bump Stop | No |
| Upper Mount Code | LS77 |
| Lower Mount Code | LS77 |
| Hydraulic Lockout | No |
| Internal Rebound Bumper | No |
| Adjustable Compression | No |
| Adjustable Ride Height | No |
| Active or Passive Suspension | Passive |
| Cylinder Finish | Painted |
| Interchange |
|---|
| 20721254LP |
| 21368411 |
| 21368412 |
| 21391413 |
| 21398412 |
| 22662230 |
| 22662235 |
| 22662237 |
| 317531 |
| 3458407 |
| 3919939 |
| 44183048 |
| 66108 |
| 66109MM |
| 8078546 |
| 83028 |
| 83905 |
| 9160936 |
| 925011 |
| 925022 |
| A83028 |
| A83048 |
| AMS66107 |
| AMS66109 |
| F347214 |
| F347256 |
| F347343 |
| F66103 |
| GAR83028 |
| GAR83048 |
| GBL83048 |
| HD12140554 |
| M66103 |
| M83028 |
| M83048 |
| MAE66109 |
| MO66109 |
| S26544 |
| S26562 |
| SA66108 |
| SA66109 |
| SSA83048 |
| TR83048 |
Gas-charged cab shock designed for heavy-duty cab suspensions, isolating the cab from the frame to enhance ride comfort. Velocity-sensitive valving delivers improved stability and a higher level of driving comfort across most applications.
