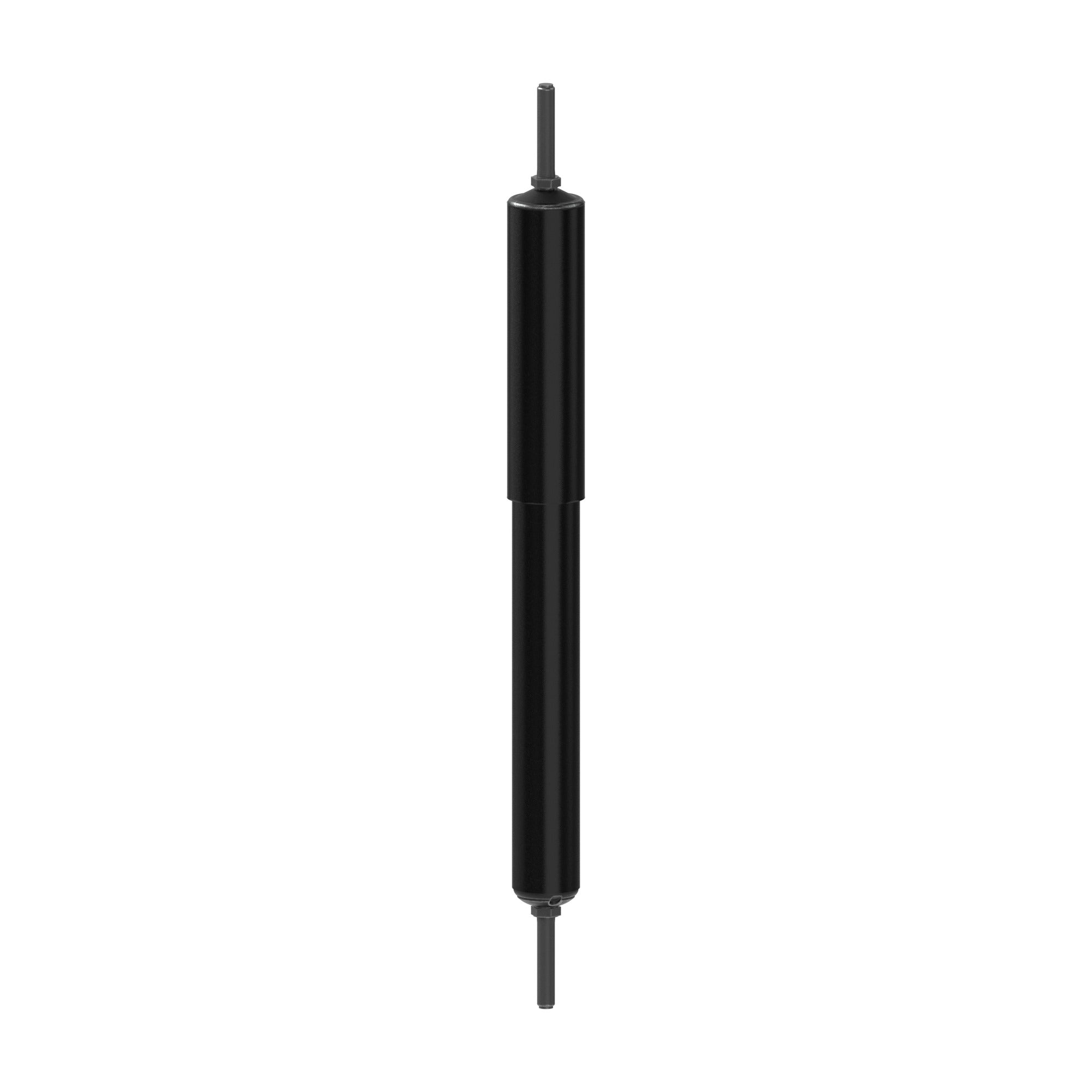

Rear Shock Absorber Black 26.31" Gas Charged - 65528

Rear Shock Absorber Black 26.31" Gas Charged - 65528

Part#: 13062-1324

Features and Benefits

Handle the demands of high mileage and severe use class 6-8 trucks and buses
Nitrogen gas charge maintains tire to road contact for improved ride and handling by
Robust hydraulic lock out prevents over extension of air bags top out of the piston and
Set of 10 stage valving tuned specifically to each vehicle adjusts to road extremes while
All weather fluid contains special additives to assist with extreme temperatures and help
Lower mount type of stem mount - 3.5/16" stem length X 5/8"-11 thread pitch for component

Select Alternative Part #

65528

Warranty

Up to 3 years warranty

Please contact customer service to know more details

SPECIFICATIONS
INTERCHANGE
APPLICATION
DESCRIPTION

Color	Black
Mounting Hardware Included	Yes
Extended Length (IN)	26.31
Extended Length (MM)	668.40
Lower Mount Type	Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch
Lower Mount Type_2	Stem
Upper Mount Type	Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch
Gas Charged	Yes
Compressed Length (IN)	15.94
Compressed Length (MM)	404.80
Travel Length (IN)	10.38
Travel Length (MM)	263.50
Shock Absorber Rod End Measuring Point	Base Of Stem
Shock Absorber Body End Measuring Point	Base Of Stem
Body Color	Black
Grade Type	Premium
Cylinder Color	Black
Adjustable Rebound	No
Dust Shield Included	Yes
Dust Shield Material	Metal
Includes Bump Stop	No
Upper Mount Code	S6
Lower Mount Code	S6
Hydraulic Lockout	Yes
Internal Rebound Bumper	No
Adjustable Compression	No
Adjustable Ride Height	No
Active or Passive Suspension	Passive
Cylinder Finish	Painted

Interchange

03087812
1085300
1445910
15642863
1613947000PLUS
1613947000PLUS2
170243
22064805
3087812
316306
316312
316824
3188626
3199953
341620
3915917
3919953
441850695468
441850695528
44185300
441853006861
4975429
5106090
5106204
5106480
5357955
5357959
5435555019
543565468
543565524
543565528
543566434
5527001
58097MB
65408
66432
66434M0R
680008
680117
680473
700121
728604
814.89455
8160120
8190076
8220648050
8220648060
8220648070
82789455
85936
8901029
89419
9180147
9180188
925124
925159
98031001
A85069
A85936
A89455
ABPN32G900038
ABPN32O900038
AMA89455
AMS650410
AMS650468
AMS700405
C711011PLUS2
C711011RTB
C711017PLUS
C716005PLUS
E85300
E89455
F343368
F344342
F344343
F344353
F344355
F346598
F346599
F346633
F347215
F347250
F347303
F347306
F555019
F65468
F65524
F65528
F66434
GAR85069
GAR85936
GAR89455
HD11160041
HD12150031
HD12150076
HD12150097
HS85069
M65528
M85069
M89455
MAE555019
MAE65468
MAE65524
MAE65528
MAE66434
PROSH85069
RK2025
RP15069HD
S26534
S26559
S29517
SSA85069
TDAM89455
UCE12951
UCE1295901
WA0185069G
ZC160453

Year	Make	Model

2025	PETERBILT	548
2024	KENWORTH	T680
2024	KENWORTH	T880
2024	KENWORTH	W900
2024	KENWORTH	W990
2024	PETERBILT	536
2024	PETERBILT	548
2024	PETERBILT	567
2024	PETERBILT	579
2023	KENWORTH	T270
2023	KENWORTH	T370
2023	KENWORTH	T680
2023	KENWORTH	T800
2023	KENWORTH	T880
2023	KENWORTH	W900
2023	KENWORTH	W990
2023	PETERBILT	337
2023	PETERBILT	365
2023	PETERBILT	367
2023	PETERBILT	389
2023	PETERBILT	520
2023	PETERBILT	536
2023	PETERBILT	537
2023	PETERBILT	548
2023	PETERBILT	567
2023	PETERBILT	579
2022	KENWORTH	T270
2022	KENWORTH	T370
2022	KENWORTH	T680
2022	KENWORTH	T800
2022	KENWORTH	T880
2022	KENWORTH	W900
2022	KENWORTH	W990
2022	PETERBILT	330
2022	PETERBILT	337
2022	PETERBILT	365
2022	PETERBILT	367
2022	PETERBILT	389
2022	PETERBILT	520
2022	PETERBILT	536
2022	PETERBILT	537
2022	PETERBILT	548
2022	PETERBILT	567
2022	PETERBILT	579
2021	KENWORTH	T270
2021	KENWORTH	T370
2021	KENWORTH	T680
2021	KENWORTH	T800
2021	KENWORTH	T880
2021	KENWORTH	W900
2021	KENWORTH	W990
2021	PETERBILT	330
2021	PETERBILT	337
2021	PETERBILT	365
2021	PETERBILT	367
2021	PETERBILT	389
2021	PETERBILT	520
2021	PETERBILT	567
2021	PETERBILT	579
2020	KENWORTH	T270
2020	KENWORTH	T370
2020	KENWORTH	T400
2020	KENWORTH	T680
2020	KENWORTH	T800
2020	KENWORTH	T880
2020	KENWORTH	W900
2020	KENWORTH	W990
2020	PETERBILT	330
2020	PETERBILT	337
2020	PETERBILT	365
2020	PETERBILT	367
2020	PETERBILT	389
2020	PETERBILT	520
2020	PETERBILT	567
2020	PETERBILT	579
2019	KENWORTH	T270
2019	KENWORTH	T370
2019	KENWORTH	T400
2019	KENWORTH	T660
2019	KENWORTH	T680
2019	KENWORTH	T800
2019	KENWORTH	T880
2019	KENWORTH	W900
2019	KENWORTH	W990
2019	PETERBILT	330
2019	PETERBILT	337
2019	PETERBILT	365
2019	PETERBILT	367
2019	PETERBILT	389
2019	PETERBILT	520
2019	PETERBILT	567
2019	PETERBILT	579
2018	KENWORTH	T270
2018	KENWORTH	T370
2018	KENWORTH	T400
2018	KENWORTH	T660
2018	KENWORTH	T680
2018	KENWORTH	T800
2018	KENWORTH	T880
2018	KENWORTH	W900
2018	PETERBILT	330
2018	PETERBILT	337
2018	PETERBILT	365
2018	PETERBILT	367
2018	PETERBILT	389
2018	PETERBILT	520
2018	PETERBILT	567
2018	PETERBILT	579
2018	PETERBILT	587
2017	KENWORTH	T270
2017	KENWORTH	T370
2017	KENWORTH	T400
2017	KENWORTH	T660
2017	KENWORTH	T680
2017	KENWORTH	T800
2017	KENWORTH	T880
2017	KENWORTH	W900
2017	PETERBILT	330
2017	PETERBILT	337
2017	PETERBILT	365
2017	PETERBILT	367
2017	PETERBILT	382
2017	PETERBILT	389
2017	PETERBILT	520
2017	PETERBILT	567
2017	PETERBILT	579
2017	PETERBILT	587
2016	KENWORTH	T270
2016	KENWORTH	T370
2016	KENWORTH	T400
2016	KENWORTH	T660
2016	KENWORTH	T680
2016	KENWORTH	T700
2016	KENWORTH	T800
2016	KENWORTH	T880
2016	KENWORTH	W900
2016	PETERBILT	330
2016	PETERBILT	337
2016	PETERBILT	365
2016	PETERBILT	367
2016	PETERBILT	382
2016	PETERBILT	384
2016	PETERBILT	386
2016	PETERBILT	389
2016	PETERBILT	567
2016	PETERBILT	579
2016	PETERBILT	587
2015	KENWORTH	T270
2015	KENWORTH	T370
2015	KENWORTH	T400
2015	KENWORTH	T660
2015	KENWORTH	T680
2015	KENWORTH	T700
2015	KENWORTH	T800
2015	KENWORTH	T880
2015	KENWORTH	W900
2015	PETERBILT	330
2015	PETERBILT	337
2015	PETERBILT	365
2015	PETERBILT	367
2015	PETERBILT	382
2015	PETERBILT	384
2015	PETERBILT	386
2015	PETERBILT	389
2015	PETERBILT	567
2015	PETERBILT	579
2015	PETERBILT	587
2014	KENWORTH	T270
2014	KENWORTH	T370
2014	KENWORTH	T400
2014	KENWORTH	T660
2014	KENWORTH	T680
2014	KENWORTH	T700
2014	KENWORTH	T800
2014	KENWORTH	T880
2014	KENWORTH	W900
2014	PETERBILT	330
2014	PETERBILT	337
2014	PETERBILT	365
2014	PETERBILT	367
2014	PETERBILT	382
2014	PETERBILT	384
2014	PETERBILT	386
2014	PETERBILT	389
2014	PETERBILT	567
2014	PETERBILT	579
2014	PETERBILT	587
2013	KENWORTH	T270
2013	KENWORTH	T370
2013	KENWORTH	T400
2013	KENWORTH	T660
2013	KENWORTH	T680
2013	KENWORTH	T700
2013	KENWORTH	T800
2013	KENWORTH	W900
2013	PETERBILT	330
2013	PETERBILT	337
2013	PETERBILT	365
2013	PETERBILT	367
2013	PETERBILT	382
2013	PETERBILT	384
2013	PETERBILT	386
2013	PETERBILT	389
2013	PETERBILT	579
2013	PETERBILT	587
2012	KENWORTH	T270
2012	KENWORTH	T370
2012	KENWORTH	T400
2012	KENWORTH	T660
2012	KENWORTH	T700
2012	KENWORTH	T800
2012	KENWORTH	W900
2012	PETERBILT	330
2012	PETERBILT	337
2012	PETERBILT	365
2012	PETERBILT	367
2012	PETERBILT	382
2012	PETERBILT	384
2012	PETERBILT	386
2012	PETERBILT	389
2012	PETERBILT	587
2011	KENWORTH	T270
2011	KENWORTH	T370
2011	KENWORTH	T400
2011	KENWORTH	T660
2011	KENWORTH	T700
2011	KENWORTH	T800
2011	KENWORTH	W900
2011	PETERBILT	330
2011	PETERBILT	337
2011	PETERBILT	365
2011	PETERBILT	367
2011	PETERBILT	382
2011	PETERBILT	384
2011	PETERBILT	386
2011	PETERBILT	387
2011	PETERBILT	389
2011	PETERBILT	587
2010	KENWORTH	T270
2010	KENWORTH	T370
2010	KENWORTH	T400
2010	KENWORTH	T660
2010	KENWORTH	T800
2010	KENWORTH	W900
2010	PETERBILT	330
2010	PETERBILT	335
2010	PETERBILT	337
2010	PETERBILT	365
2010	PETERBILT	367
2010	PETERBILT	384
2010	PETERBILT	386
2010	PETERBILT	387
2010	PETERBILT	389
2009	KENWORTH	T270
2009	KENWORTH	T370
2009	KENWORTH	T660
2009	KENWORTH	T800
2009	KENWORTH	W900
2009	PETERBILT	330
2009	PETERBILT	335
2009	PETERBILT	365
2009	PETERBILT	367
2009	PETERBILT	384
2009	PETERBILT	386
2009	PETERBILT	387
2009	PETERBILT	389
2008	KENWORTH	T270
2008	KENWORTH	T370
2008	KENWORTH	T660
2008	KENWORTH	T800
2008	KENWORTH	W900
2008	PETERBILT	330
2008	PETERBILT	335
2008	PETERBILT	357
2008	PETERBILT	365
2008	PETERBILT	367
2008	PETERBILT	384
2008	PETERBILT	386
2008	PETERBILT	387
2008	PETERBILT	389
2007	PETERBILT	330
2007	PETERBILT	335
2007	PETERBILT	357
2007	PETERBILT	379
2007	PETERBILT	385
2007	PETERBILT	386
2007	PETERBILT	387
2006	PETERBILT	335
2006	PETERBILT	357
2006	PETERBILT	379
2006	PETERBILT	385
2006	PETERBILT	386
2006	PETERBILT	387
2005	PETERBILT	330
2005	PETERBILT	335
2005	PETERBILT	357
2005	PETERBILT	379
2005	PETERBILT	385
2005	PETERBILT	387
2004	PETERBILT	330
2004	PETERBILT	357
2004	PETERBILT	379
2004	PETERBILT	385
2004	PETERBILT	387
2003	PETERBILT	330
2003	PETERBILT	357
2003	PETERBILT	379
2003	PETERBILT	387
2002	PETERBILT	357
1998	VOLVO	FE
1997	VOLVO	FE
1996	VOLVO	FE
1995	VOLVO	FE
1994	VOLVO	FE
1993	VOLVO	FE
1992	VOLVO	FE

Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses Nitrogen gas charge maintains tire to road contact for improved ride and handling by reducing aeration and shock fade Robust hydraulic lock out prevents over extension of air bags top out of the piston and averts damage to seal assembly most applications 10 Stage valving tuned specifically to each vehicle adjusts to road extremes while larger 1-3/4 in. bore provides more efficient damping control to provide consistency and a smooth ride most applications All weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8 in. reserve tube holds more fluid to improve performance most applications
