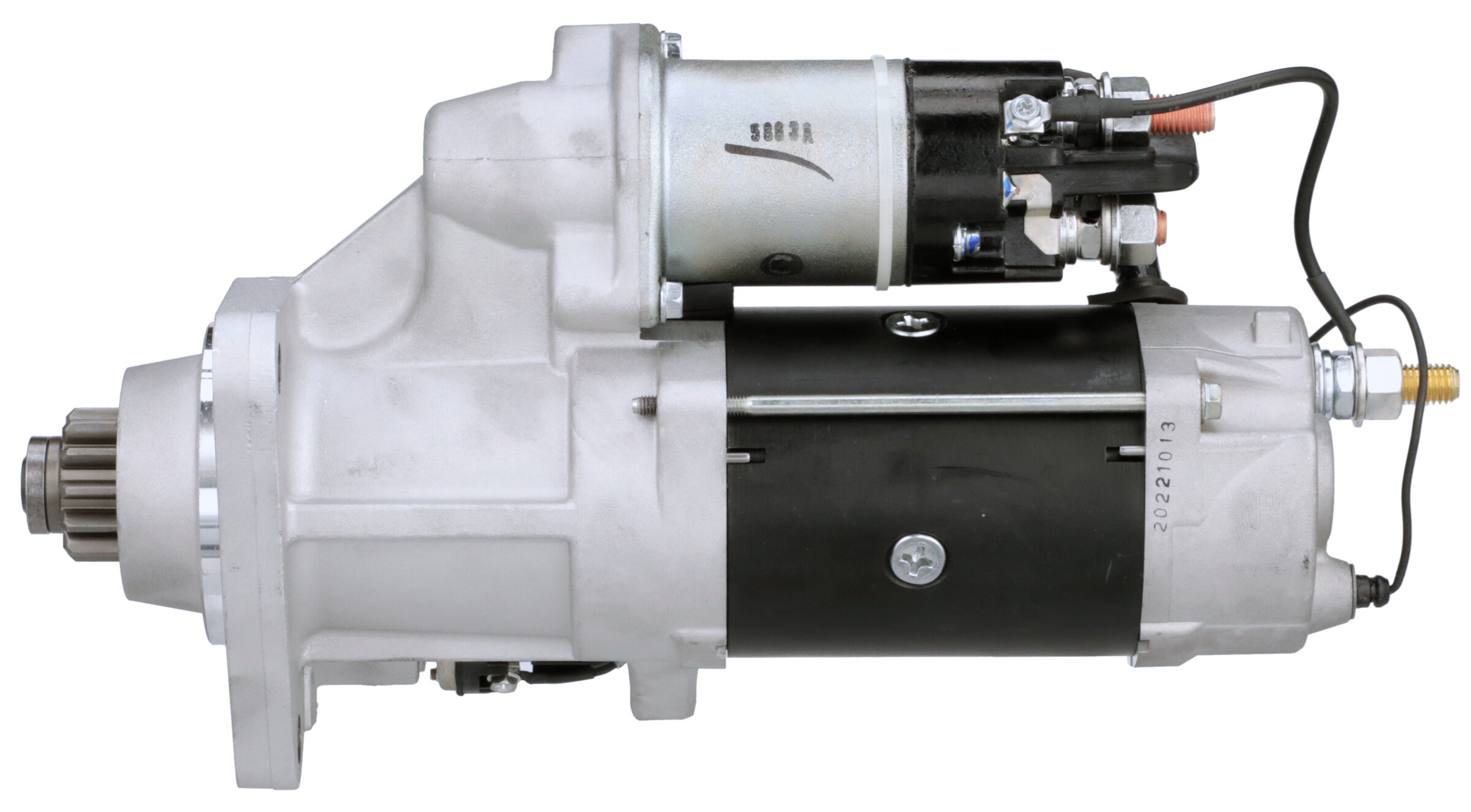

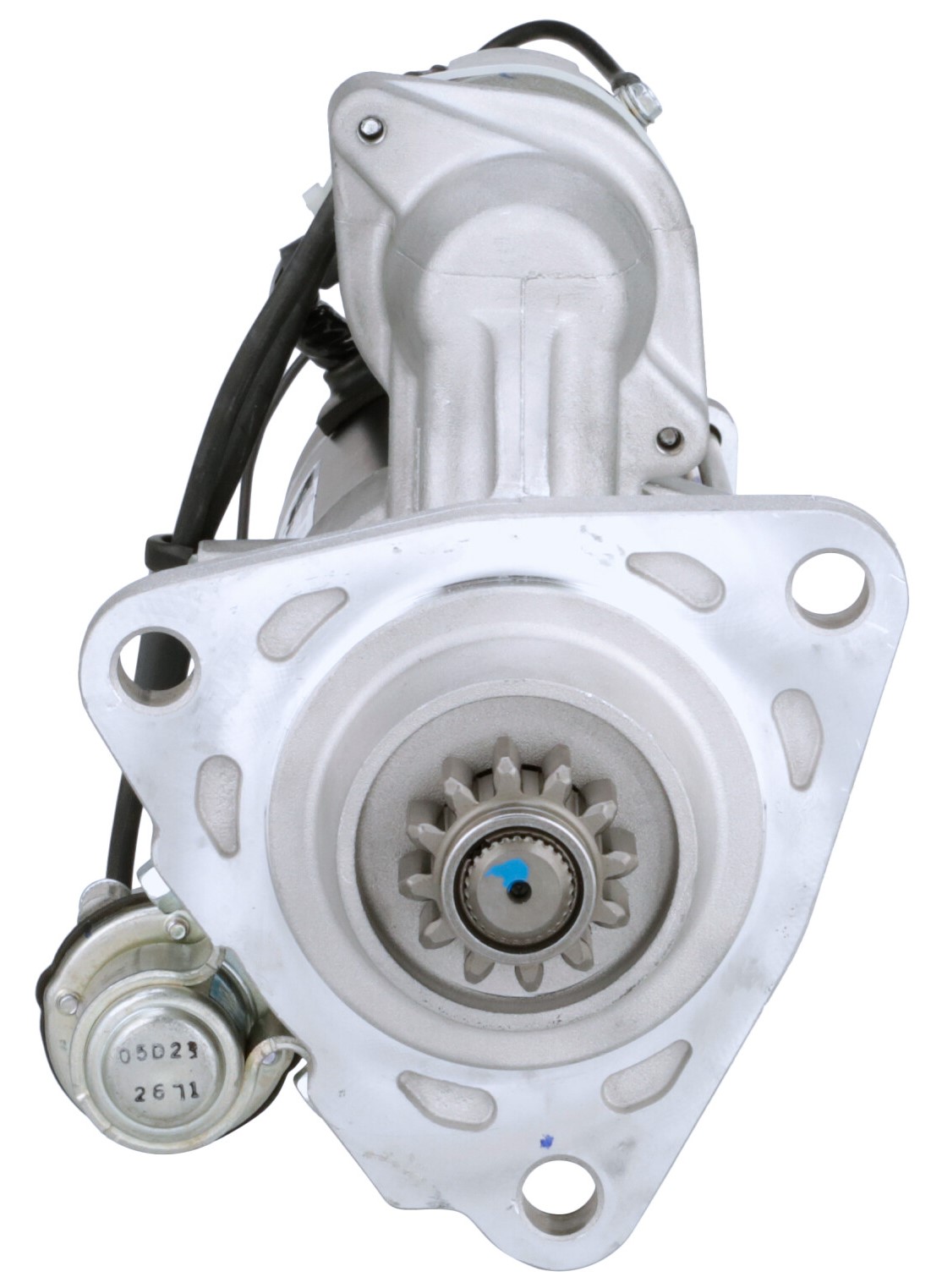

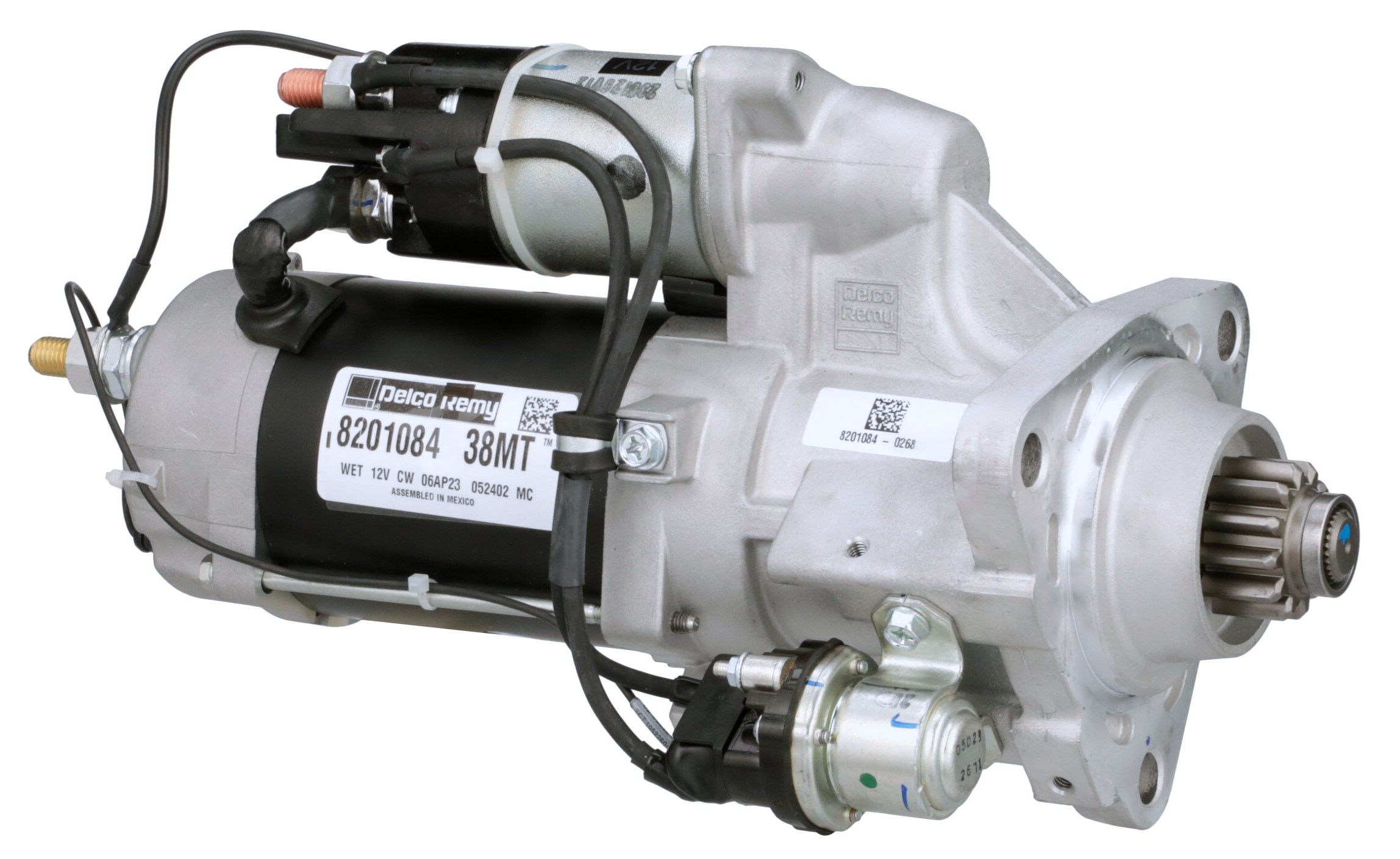

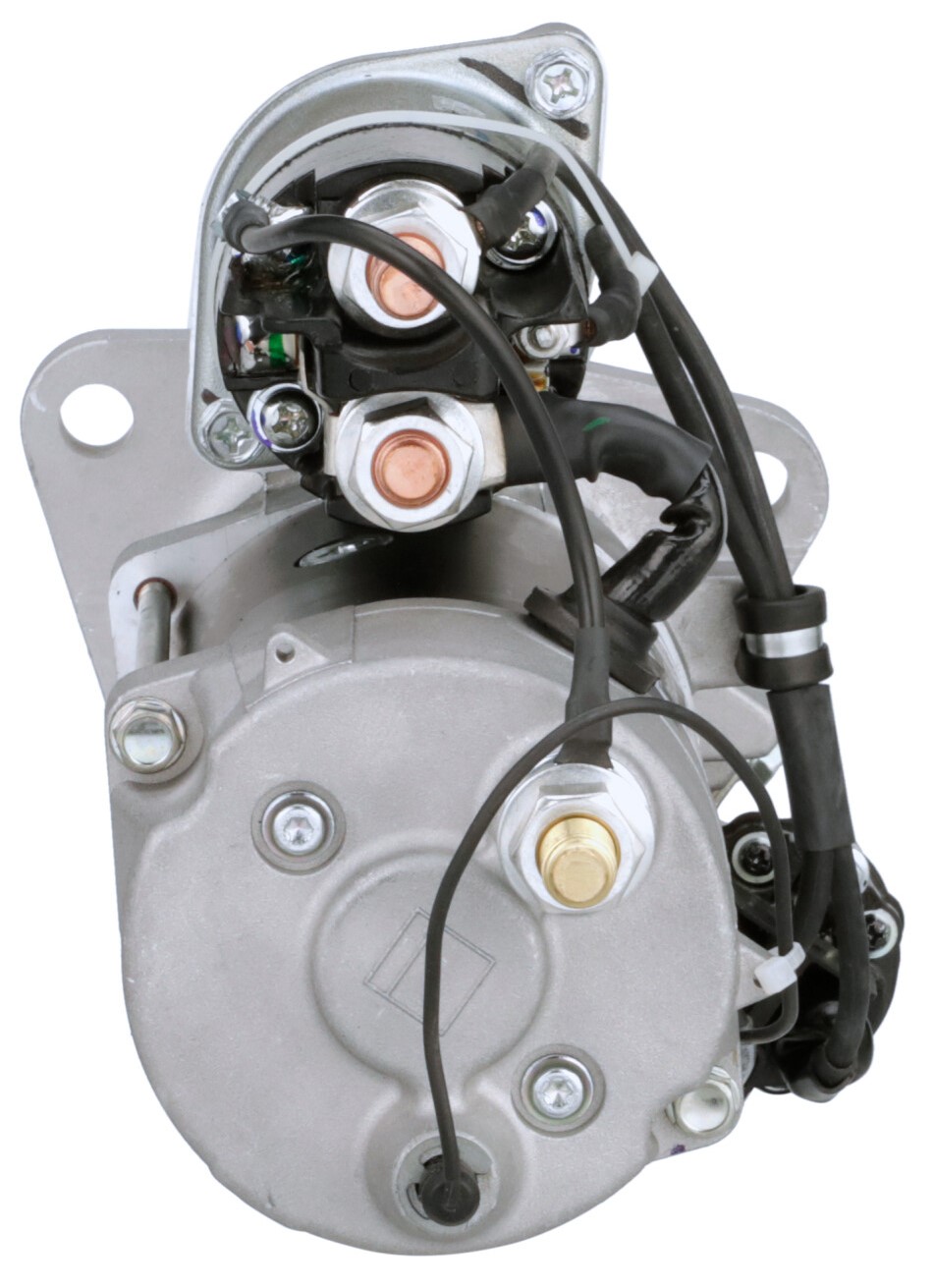

Starter 38MT+ 12V 12-Teeth SAE-3 068° CW Grounded - 8201084

Starter 38MT+ 12V 12-Teeth SAE-3 068° CW Grounded - 8201084

Part#: AAA7871084

Features and Benefits

Protects the starter from thermal damage automatically resetting at a safe operating temperature
Electrical soft start consistently and accurately engages the pinion with the ring gear providing increased reliability
38MT+ features an Integral Magnetic Switch IMS reduces voltage drop and ensures the solenoid receives the maximum available voltage in any starting condition
Available with Integrated Over Crank Protection IOCP a built in circuit breaker protects the starter from thermal damage automatically resetting at a safe operating temperature eliminating the need for a wiring harness
High-performance power pack delivers optimized energy output, enabling faster starts while reducing battery strain

Warranty

Up to 3 years warranty

Please contact customer service to know more details

SPECIFICATIONS
INTERCHANGE
DESCRIPTION

Model	38MT+
Type	New Starter
System Voltage	12
Mounting Type	SAE 3
Pinion Teeth	12
Pinion Pitch	Mod 3.0
Solenoid Position	068
Rotation	CW
Polarity	Grounded
Over Crank Protection	Yes

Interchange

1847916
1874717
1924505
1974717
20138106
2294908
34201N
611003001
8200977
8201115
91014805
D611003
D611003001
D61100301
D611003011
D611006
D611006001
D611012
D6160020012
D616002011
D616002012
M009T72578
M009T72578ZX
M009TA0079
M009TA0079ZX
M110608
M110R2608SE
M9T72578
PC0079
PC2578
PC25781

38MT 12V 12-tooth starter motor with overcrank protection (OCP) designed for reliable engine starting in heavy-duty applications. Provides strong starting power from cold engine conditions. Engages the engine flywheel using battery power to initiate engine operation. Built with durable components to support consistent performance and extended service life.
