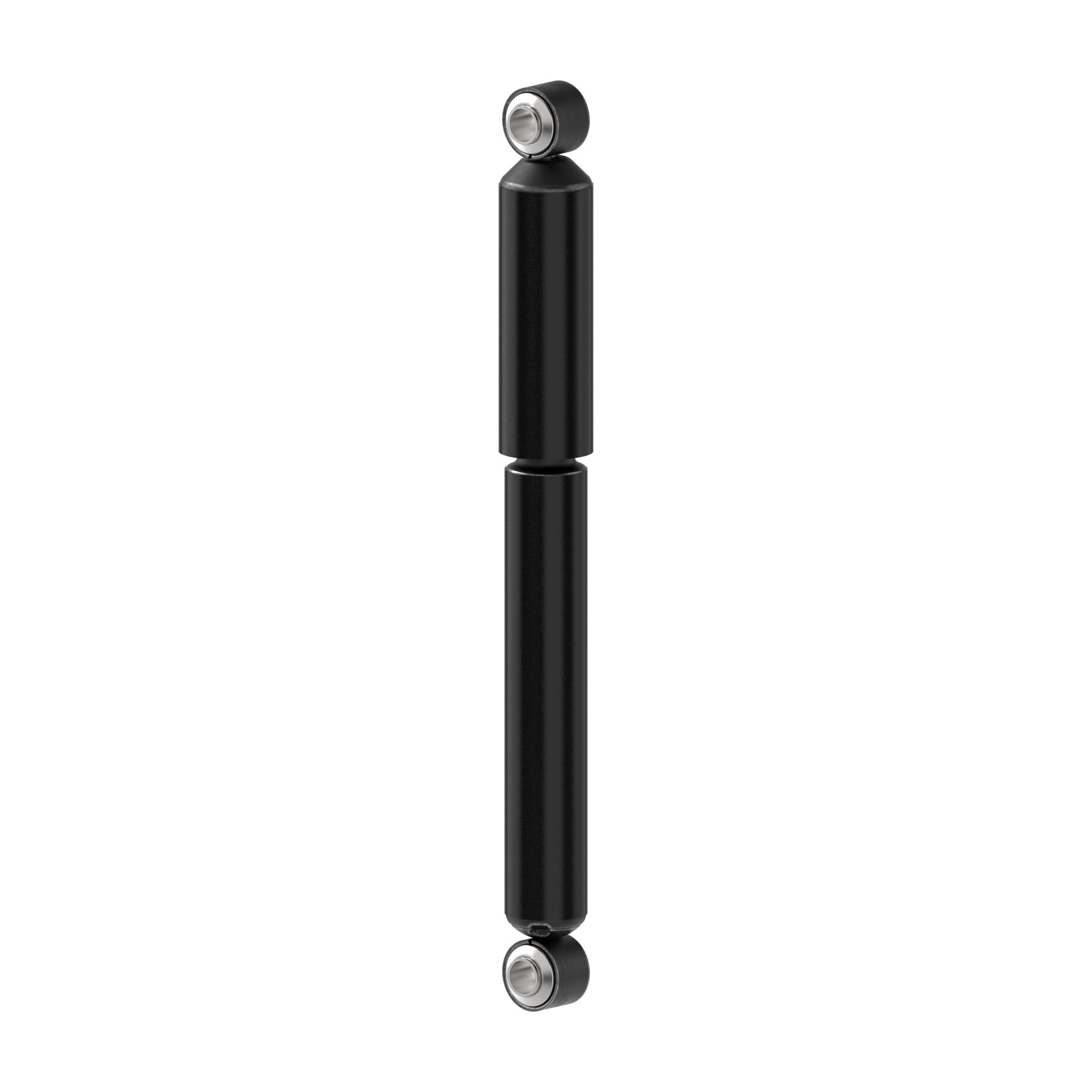

Front Shock Absorber Black 20.74" Gas Charged for Freightliner Cascadia 2018-2024 - 66458
Part#: 16061-1800
Features and Benefits
- Handle the demands of high mileage and severe use class 3-6 trucks and buses
- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for
- Robust hydraulic lock out prevents over extension of air bags top out of the piston and
- All weather fluid contains special additives to assist with extreme temperatures and help
- Set of 10 stage valving tuned specifically to each vehicle adjusts to road extremes while
- Lower mount type of loop bushing and sleeve mount - 0.79" sleeve ID X 1.3/4" sleeve oal
Select Alternative Part #
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Color | Black |
|---|---|
| Mounting Hardware Included | No |
| Extended Length (IN) | 20.74 |
| Extended Length (MM) | 526.80 |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 20MM Sleeve ID X 1.3/4" Sleeve OAL |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 20MM Sleeve ID X 44.45MM Sleeve OAL |
| Gas Charged | Yes |
| Body Diameter (MM) | 50.50 |
| Body Diameter (IN) | 1.99 |
| Compressed Length (IN) | 13.89 |
| Compressed Length (MM) | 352.80 |
| Travel Length (IN) | 6.85 |
| Travel Length (MM) | 174.00 |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Body Color | Black |
| Grade Type | Premium |
| Cylinder Color | Black |
| Adjustable Rebound | No |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Upper Mount Code | LS75 |
| Lower Mount Code | LS75 |
| Hydraulic Lockout | No |
| Internal Rebound Bumper | No |
| Adjustable Compression | No |
| Adjustable Ride Height | No |
| Active or Passive Suspension | Passive |
| Cylinder Finish | Painted |
| Interchange |
|---|
| 1012396000 |
| 1012703000 |
| 1012704000 |
| 1013021000 |
| 1013023000 |
| 1013063000 |
| 1013205000 |
| 1013211000 |
| 1013634000 |
| 1013684000 |
| 1014317000 |
| 1014339000 |
| 1618455000 |
| 311229 |
| 315390 |
| 315406 |
| 315600 |
| 315617 |
| 315623 |
| 341618 |
| 410026 |
| 441859185140 |
| 441859185148 |
| 45117 |
| 471700000449 |
| 471700000470 |
| 471700002726 |
| 471700131155 |
| 471700131355 |
| 471700131646 |
| 5103815 |
| 5107857 |
| 543565139 |
| 543565140 |
| 543565148 |
| 543566418 |
| 543566433 |
| 61300224 |
| 61300240 |
| 65139 |
| 65139M0R |
| 65140 |
| 65140M0R |
| 65148 |
| 65148M0R |
| 66418M0R |
| 66433 |
| 66433M0R |
| 671908 |
| 8160114 |
| 83176238 |
| 85106580 |
| 85918 |
| 85918HSK |
| 8901033 |
| 89396 |
| 89449 |
| 9170007 |
| 9180143 |
| 925181 |
| 98031020 |
| A83396 |
| A85918 |
| ABPN32G900003 |
| ABPN32G900091 |
| ABPN32O900003 |
| ABPN32O900091 |
| AMS650139 |
| AMS65148 |
| F347261 |
| F65139 |
| F65140 |
| F65148 |
| F66418 |
| F66433 |
| GAB85918 |
| GAR85918 |
| GBL |
| GBL/85918 |
| GBL85918 |
| HD12140845 |
| HD12150024 |
| HD12150025 |
| HS85918 |
| M65140 |
| M66418 |
| M85918 |
| MAE65139 |
| MAE65140 |
| MAE65148 |
| MAE66418 |
| MAE66433 |
| MAE66458 |
| MON65148 |
| RCSA5918 |
| RF05918HD |
| RT85918 |
| S26538 |
| SA5918 |
| SA66418 |
| SH66418 |
| TDA85918 |
| WA0185918G |
| ZC160445 |
| Year | Make | Model | Engine |
|---|---|---|---|
| 2024 | FREIGHTLINER | CASCADIA | |
| 2023 | FREIGHTLINER | CASCADIA | |
| 2022 | FREIGHTLINER | CASCADIA | |
| 2021 | FREIGHTLINER | CASCADIA | |
| 2020 | FREIGHTLINER | CASCADIA | |
| 2019 | FREIGHTLINER | CASCADIA | |
| 2018 | FREIGHTLINER | CASCADIA |
Designed to handle the demands of high mileage and severe use class 3-6 trucks and buses Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality arc welds up to 360° for durability Robust hydraulic lock out prevents over extension of air bags top out of the piston and averts damage to seal assembly on most applications All weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while 2 in. or 2-1/4 in. reserve tube holds more fluid to improve performance when required 10 Stage valving tuned specifically to each vehicle adjusts to road extremes while larger 1-3/8 in. bore provides more efficient damping control to provide consistency and a smooth ride most applications
