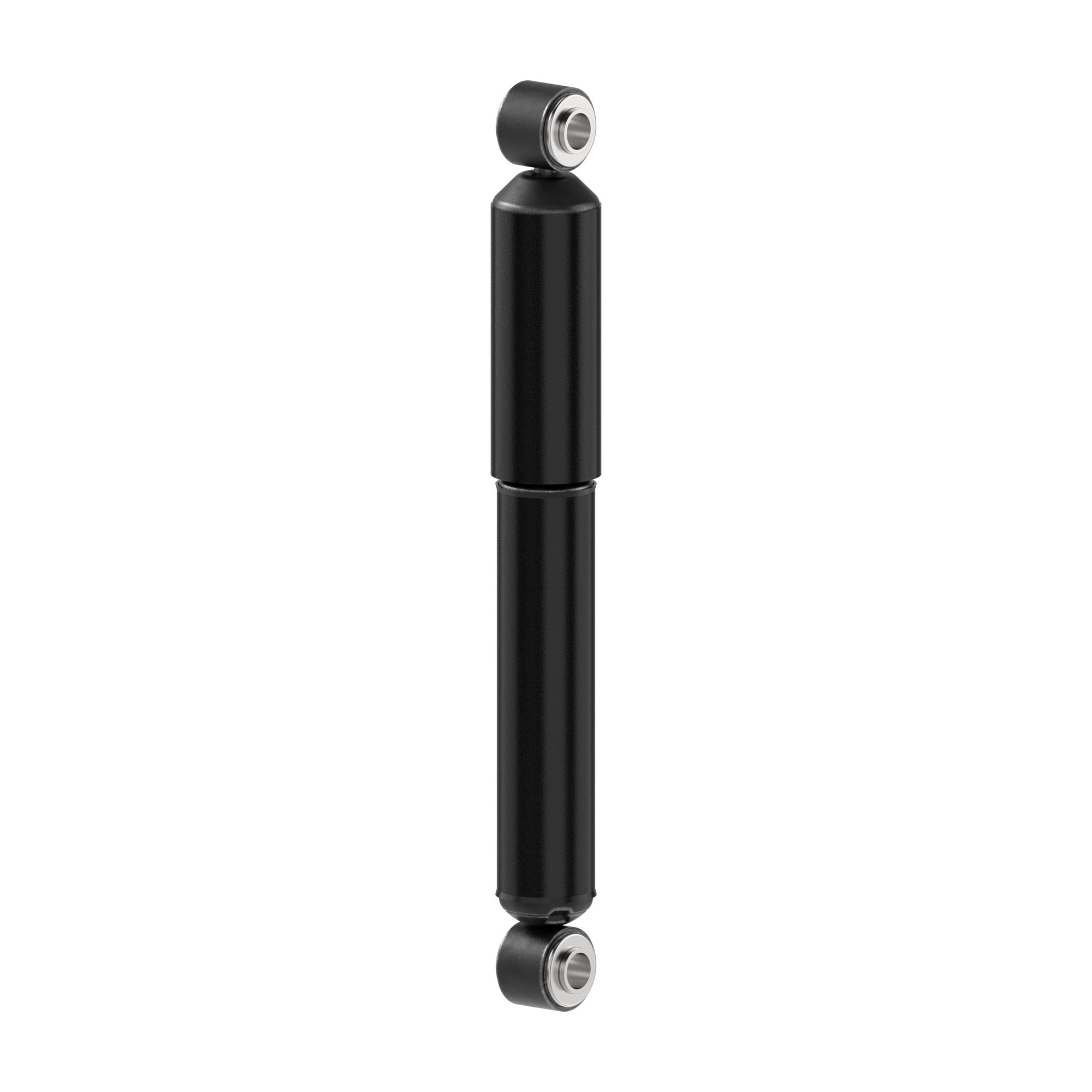

Rear Shock Absorber Black 17.45" Gas Charged - 66893
Part#: 16062-8121
Features and Benefits
- Designed to handle the demands of high mileage and severe use class 3-6 trucks and buses
- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality arc welds up to 360° for durability
- Robust hydraulic lock out prevents over extension of air bags top out of the piston and averts damage to seal assembly on most applications
- All weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while 2 in. or 2-1/4 in. reserve tube holds more fluid to improve performance when required
- 10 Stage valving tuned specifically to each vehicle adjusts to road extremes while larger 1-3/8 in. bore provides more efficient damping control to provide consistency and a smooth ride most applications
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Color | Black |
|---|---|
| Mounting Hardware Included | No |
| Extended Length (IN) | 17.4531 |
| Extended Length (MM) | 443.30000000000001 |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL |
| Gas Charged | Yes |
| Compressed Length (IN) | 11.9375 |
| Compressed Length (MM) | 303.19999999999999 |
| Travel Length (IN) | 5.515 |
| Travel Length (MM) | 140.099999999999994 |
| Finish | Painted |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Shaft Diameter (MM) | 16 |
| Body Color | Black |
| Internal Construction Type | Twin Tube |
| Grade Type | Premium |
| Cylinder Color | Black |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Includes Bump Stop | No |
| Upper Mount Code | LS54 |
| Lower Mount Code | LS54 |
| Hydraulic Lockout | Yes |
| Shock Absorber Bore Size (MM) | 35 |
| Foam Cell Design | No |
| Internal Rebound Bumper | No |
| Adjustable Compression | No |
| Adjustable Ride Height | No |
| Active or Passive Suspension | Passive |
| Cylinder Finish | Painted |
| Interchange |
|---|
| 044162S |
| 10147 |
| 1080099 |
| 1083203 |
| 1083204 |
| 1085000 |
| 1089000 |
| 1089001 |
| 1250563B000 |
| 1253069B000 |
| 1266009B000 |
| 1270563B000 |
| 1288503 |
| 1360386MTM |
| 14QK2108 |
| 14QK2108P1 |
| 1583470 |
| 1614759000 |
| 16327 |
| 16653 |
| 16778 |
| 17122754224 |
| 17129800478 |
| 17186 |
| 1718601 |
| 1880001 |
| 20273541 |
| 202735414 |
| 20273544 |
| 20520S |
| 23481 |
| 25621810 |
| 315552 |
| 3199959 |
| 341625 |
| 341626 |
| 345607 |
| 345617 |
| 3566 |
| 3919056 |
| 3919913 |
| 3919959 |
| 410056 |
| 42019189 |
| 434237 |
| 434277 |
| 436028 |
| 436118 |
| 438013 |
| 441832036634 |
| 441832036893 |
| 44185323 |
| 4940627 |
| 50826 |
| 5089 |
| 510017 |
| 524125 |
| 5348631 |
| 543565501 |
| 5559363 |
| 57306893 |
| 57365416 |
| 57366893 |
| 59019 |
| 59030 |
| 600104MT |
| 601104 |
| 6046 |
| 61310232 |
| 650416 |
| 650416MT |
| 651056 |
| 65351101 |
| 65416 |
| 654907 |
| 654951 |
| 65501 |
| 65501M0R |
| 65911 |
| 660104MT |
| 661104 |
| 665133 |
| 665197 |
| 665531 |
| 665536 |
| 665724 |
| 665746 |
| 665756 |
| 665761 |
| 665766 |
| 665788 |
| 665950 |
| 66608 |
| 66634 |
| 66634M0R |
| 66893M |
| 66893M0R |
| 66893MM |
| 671707 |
| 671948 |
| 680268 |
| 680341 |
| 680467 |
| 680509 |
| 680547 |
| 680565 |
| 680568 |
| 680591 |
| 680702 |
| 680756 |
| 6893 |
| 6896 |
| 70654 |
| 727603 |
| 728600 |
| 728630 |
| 8150242 |
| 8160119 |
| 8180262 |
| 83128 |
| 83130 |
| 83176207 |
| 83176234 |
| 83203 |
| 83389 |
| 85000GA |
| 85005 |
| 85007 |
| 85030 |
| 85043 |
| 85051 |
| 85300 |
| 85300GBL |
| 85323 |
| 85323HSK |
| 85738 |
| 85911 |
| 85932 |
| 881644 |
| 8901030 |
| 890414 |
| 89419 |
| 89430 |
| 89436 |
| 89440 |
| 90044008 |
| 90044071 |
| 90044081 |
| 90044086 |
| 90044095 |
| 90044162 |
| 90044162S |
| 90044977 |
| 90044981 |
| 90045001 |
| 90045003 |
| 90045299 |
| 90045669 |
| 902396SP1 |
| 9160539 |
| 9180142 |
| 925261 |
| 925291 |
| 942300 |
| 98583019 |
| A10023 |
| A11931 |
| A14583 |
| A16135 |
| A1667 |
| A1668 |
| A20002 |
| A20126 |
| A20889 |
| A21553 |
| A83203 |
| A85323 |
| ABPN32G900002 |
| ABPN32G900011 |
| ABPN32G900028 |
| ABPN32G900082 |
| ABPN32O900002 |
| ABPN32O900011 |
| ABPN32O900028 |
| ABPN32O900082 |
| AMS600104 |
| AMS650416 |
| AMS65416 |
| AMS660104 |
| AMS66634 |
| AMS66893 |
| AR1434 |
| AR2451 |
| AR718C |
| AR718CHD |
| AR781 |
| AS563B |
| B21832 |
| B22715 |
| B23013 |
| B23566 |
| B24023 |
| B24088 |
| B24125 |
| B24577 |
| B29432 |
| B83203 |
| CAX893 |
| D250826 |
| DN1085000 |
| DPM66893 |
| E2722 |
| E3129 |
| E83203 |
| E85000 |
| ECEMN66893 |
| EIE3129 |
| EIE83203 |
| EIE85000 |
| EIEMN66893 |
| EMN66608 |
| EMN66893 |
| EMN6893 |
| EU66893 |
| EUE83203 |
| EUE85000 |
| EUEMN66608 |
| EUEMN66893 |
| EUEMN6893 |
| EUSA66893 |
| F347194 |
| F347216 |
| F347264 |
| F347274 |
| F65501 |
| F66893 |
| FF66893 |
| FLF66893 |
| FLL8320307I |
| FLS83203 |
| FLSD66893 |
| GAR85323 |
| HD12140508 |
| HD12150106 |
| HENS20126 |
| HNS20002 |
| HS85323 |
| HTA200002 |
| L57639 |
| L59019 |
| LT66893 |
| LTL57639 |
| LTL59019 |
| M65416 |
| M66893 |
| M83203 |
| M85323 |
| M89436 |
| MAE66893 |
| MBSA66893 |
| MI66893 |
| MISA66893 |
| MISA6893 |
| MN6608 |
| MN66608 |
| MN66893 |
| MN6893 |
| MNEMN66893 |
| MNSA66893 |
| MO66893 |
| MO6893 |
| MON65416 |
| MON66893 |
| MR66893 |
| MS66608 |
| MS66893 |
| MS6893 |
| MSF66893 |
| N66608 |
| N66893 |
| NE6893 |
| NW6893 |
| OTR66893 |
| RCSA3203 |
| RWAS563B |
| S14583 |
| S1667 |
| S1668 |
| S20001 |
| S20002 |
| S20126 |
| S20889 |
| S21832 |
| S22715 |
| S23013 |
| S23566 |
| S24023 |
| S24088 |
| S24125 |
| S24577 |
| S27101 |
| S29432 |
| S6009B |
| SA3203 |
| SA5323 |
| SA65416M1D |
| SA66893 |
| SA6893 |
| SA83203 |
| SD66893 |
| SH66893 |
| SMR560407 |
| TR83203 |
| UCD006216001 |
| UCD6216001 |
| UCD62161 |
| V6F66893 |
| WSA0083203 |
| WSA0085000 |
Gas-charged shock absorber designed for class 3-6 vehicles, providing quicker response and enhanced ride stability. Engineered to handle high mileage and severe use, helping reduce excessive vibration and improve overall ride comfort.
