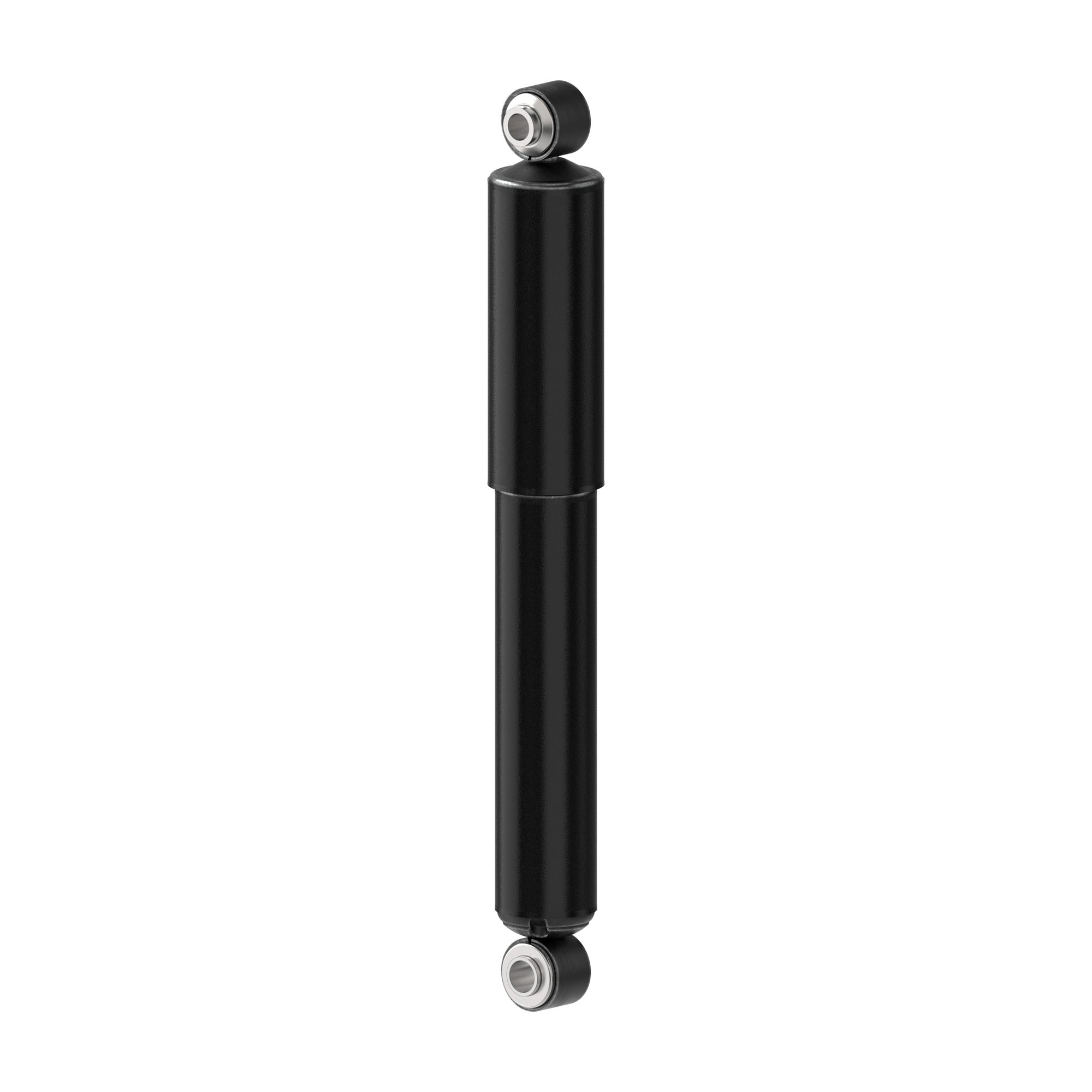

Front Shock Absorber Black 20.25" Gas Charged - 65147
Part#: 14061-0018
Features and Benefits
- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
- Nitrogen gas charge maintains tire to road contact for improved ride and handling by reducing aeration and shock fade
- Robust hydraulic lock out prevents over extension of air bags top out of the piston and averts damage to seal assembly most applications
- 10 Stage valving tuned specifically to each vehicle adjusts to road extremes while larger 1-3/4 in. bore provides more efficient damping control to provide consistency and a smooth ride most applications
- All weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8 in. reserve tube holds more fluid to improve performance most applications
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Color | Black |
|---|---|
| Mounting Hardware Included | No |
| Extended Length (IN) | 20.25 |
| Extended Length (MM) | 514.39999999999998 |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 5/8" Sleeve ID X 2" Sleeve OAL |
| Gas Charged | Yes |
| Compressed Length (IN) | 13 |
| Compressed Length (MM) | 330.19999999999999 |
| Travel Length (IN) | 7.25 |
| Travel Length (MM) | 184.099999999999994 |
| Finish | Painted |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Shaft Diameter (MM) | 18 |
| Body Color | Black |
| Internal Construction Type | Twin Tube |
| Grade Type | Premium |
| Cylinder Color | Black |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Includes Bump Stop | No |
| Upper Mount Code | LS53 |
| Lower Mount Code | LS54 |
| Hydraulic Lockout | No |
| Shock Absorber Bore Size (MM) | 44.5 |
| Shock Absorber Bore Size (IN) | 1.75 |
| Foam Cell Design | No |
| Internal Rebound Bumper | No |
| Adjustable Compression | No |
| Adjustable Ride Height | No |
| Active or Passive Suspension | Passive |
| Cylinder Finish | Painted |
| Interchange |
|---|
| 090052CD |
| 12323 |
| 14086055 |
| 15654263 |
| 2025677C91 |
| 2125890 |
| 2268564 |
| 23011420 |
| 2372661 |
| 315547 |
| 3165787 |
| 3224097 |
| 337185 |
| 341623 |
| 3581106C1 |
| 3581106C2 |
| 3581106C3 |
| 3581106C4 |
| 3581107C1 |
| 3581107C2 |
| 3581107C3 |
| 3581107C93 |
| 3581109C1 |
| 3581109C3 |
| 3581109C4 |
| 3584535C1 |
| 3584535C2 |
| 3584535C3 |
| 3584535C4 |
| 3771273 |
| 3866776 |
| 390919 |
| 3918393 |
| 3921988 |
| 3923420 |
| 4095544 |
| 4164152C1 |
| 4164156C1 |
| 4271941 |
| 4293859 |
| 44185924 |
| 445078 |
| 4763739 |
| 5741081 |
| 58123MB |
| 6034376 |
| 6035417 |
| 6127705C1 |
| 65147M |
| 65147M0R |
| 65147MM |
| 65202 |
| 66426 |
| 69012 |
| 69760 |
| 8121449 |
| 83501865 |
| 85924 |
| 89457 |
| 8HA6730 |
| 90052 |
| 900521 |
| 9180137 |
| 92001 |
| 925213 |
| 944740 |
| A85924 |
| ABPN32G900035 |
| ABPN32O900035 |
| AMS65147 |
| D1AZ6730B |
| D6TZ6730A |
| D6TZ6730B |
| D8TZ6730A |
| DPM65147 |
| E8HZA449A |
| E9TZ6730B |
| F347221 |
| F65147 |
| FLF65147 |
| FLS85924 |
| GSX89457 |
| HD12150027 |
| HS85924 |
| J3206696 |
| J8121449 |
| M65147 |
| M85924 |
| M89457 |
| MAE65147 |
| MO6035417 |
| PROSH85924 |
| SA65147 |
| SMR560418 |
| SSA85924 |
| XW6730A |
Gas-charged, large-bore shock absorber designed for class 6-8 vehicles, compatible with air spring and taper leaf suspensions. Nitrogen gas charge delivers fast response required for modern heavy-duty truck suspension systems, enhancing stability, control, and overall ride performance.
