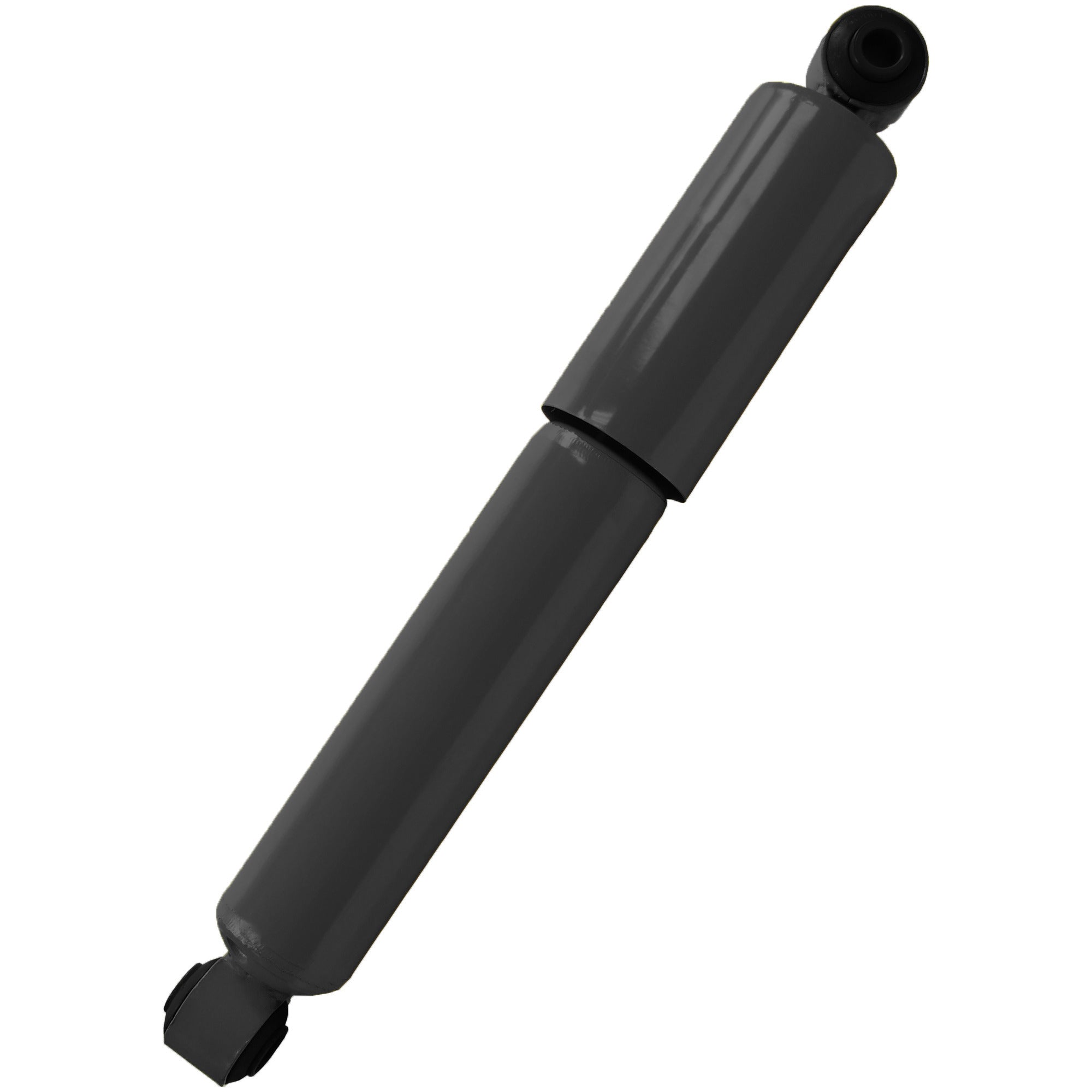

Front Shock Absorber Black 20.73" Gas Charged - 65157
Part#: 14061-0815
Features and Benefits
- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
- Nitrogen gas charge maintains tire to road contact for improved ride and handling by reducing aeration and shock fade
- Robust hydraulic lock out prevents over extension of air bags top out of the piston and averts damage to seal assembly most applications
- 10 Stage valving tuned specifically to each vehicle adjusts to road extremes while larger 1-3/4 in. bore provides more efficient damping control to provide consistency and a smooth ride most applications
- All weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8 in. reserve tube holds more fluid to improve performance most applications
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Color | Black |
|---|---|
| Mounting Hardware Included | No |
| Extended Length (IN) | 20.73 |
| Extended Length (MM) | 526.5 |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 5/8" Sleeve ID X 2" Sleeve OAL |
| Gas Charged | Yes |
| Compressed Length (IN) | 13.19 |
| Compressed Length (MM) | 335 |
| Travel Length (IN) | 7.54 |
| Travel Length (MM) | 191.5 |
| Finish | Painted |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Shaft Diameter (MM) | 18 |
| Body Color | Black |
| Internal Construction Type | Twin Tube |
| Grade Type | Premium |
| Cylinder Color | Black |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Includes Bump Stop | No |
| Upper Mount Code | LS53 |
| Lower Mount Code | LS54 |
| Hydraulic Lockout | No |
| Shock Absorber Bore Size (MM) | 44.5 |
| Shock Absorber Bore Size (IN) | 1.75 |
| Foam Cell Design | No |
| Internal Rebound Bumper | No |
| Adjustable Compression | No |
| Adjustable Ride Height | No |
| Active or Passive Suspension | Passive |
| Cylinder Finish | Painted |
| Interchange |
|---|
| 065157X |
| 274520 |
| 316817 |
| 3581109C4 |
| 3606857C1 |
| 3606857C2 |
| 3606859C1 |
| 3606859C2 |
| 3668566C1 |
| 3670156C1 |
| 3674348C1 |
| 3737571C1 |
| 3737574C1 |
| 3737575C1 |
| 3812837C1 |
| 44185954 |
| 58092MB |
| 65157MM |
| 65158 |
| 65158M0R |
| 65163 |
| 65535 |
| 8180173 |
| 85954 |
| 9180138 |
| 925218 |
| A85954 |
| ABPN32G900044 |
| ABPN32O900044 |
| AMS65157 |
| AMS65158 |
| AV065157 |
| EBN065157X |
| F347220 |
| FLS85954 |
| HD12150080 |
| HD12150119 |
| HS85954 |
| M65157 |
| M65158 |
| M85954 |
| MAE65157 |
| MON65158 |
| PROSH85954 |
| R955065157X |
| R955800516N |
| RKN20615 |
| S16988 |
| S25642 |
| SA55084 |
| SA65157 |
| SSA85954 |
Gas-charged, large-bore shock absorber designed for class 6-8 vehicles, compatible with air spring and taper leaf suspensions. Nitrogen gas charge delivers fast response required for modern heavy-duty truck suspension systems, enhancing stability, control, and overall ride performance.
