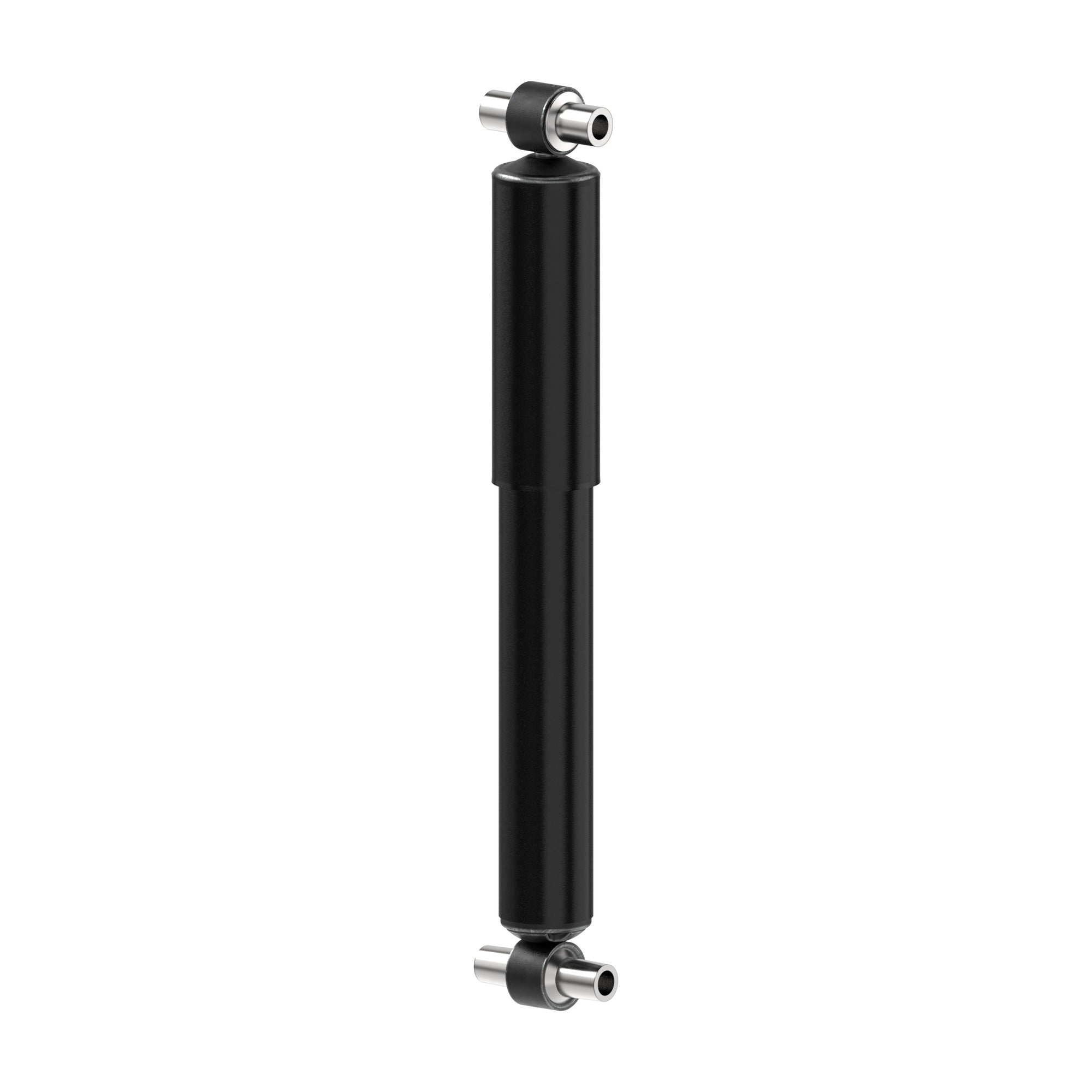

Rear Shock Absorber Black 22.50" Gas Charged - 65492
Part#: 14062-0024
Features and Benefits
- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
- Nitrogen gas charge maintains tire to road contact for improved ride and handling by reducing aeration and shock fade
- Robust hydraulic lock out prevents over extension of air bags top out of the piston and averts damage to seal assembly most applications
- 10 Stage valving tuned specifically to each vehicle adjusts to road extremes while larger 1-3/4 in. bore provides more efficient damping control to provide consistency and a smooth ride most applications
- All weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8 in. reserve tube holds more fluid to improve performance most applications
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Color | Black |
|---|---|
| Mounting Hardware Included | No |
| Extended Length (IN) | 22.5 |
| Extended Length (MM) | 571.5 |
| Lower Mount Type | Loop Bushing And Sleeve Mount - 5/8"-16MM Sleeve ID X 4" Sleeve OAL |
| Lower Mount Type_2 | Loop (Eyelet) Bushing And Sleeve |
| Upper Mount Type | Loop Bushing And Sleeve Mount - 5/8"-16mm Sleeve ID X 3 9/16" Sleeve OAL |
| Gas Charged | Yes |
| Compressed Length (IN) | 14.5 |
| Compressed Length (MM) | 368.30000000000001 |
| Travel Length (IN) | 8 |
| Travel Length (MM) | 203.19999999999999 |
| Shock Absorber Rod End Measuring Point | Center Of Loop |
| Shock Absorber Body End Measuring Point | Center Of Loop |
| Body Color | Black |
| Grade Type | Premium |
| Cylinder Color | Black |
| Adjustable Rebound | No |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Includes Bump Stop | No |
| Upper Mount Code | LS87 |
| Lower Mount Code | LS61 |
| Hydraulic Lockout | Yes |
| Internal Rebound Bumper | No |
| Adjustable Compression | No |
| Adjustable Ride Height | No |
| Active or Passive Suspension | Passive |
| Cylinder Finish | Painted |
| Interchange |
|---|
| 12322 |
| 315413 |
| 315417 |
| 341615 |
| 3549099C1 |
| 3549099C2 |
| 3549099C3 |
| 3573265C1 |
| 3586883C1 |
| 3620395C1 |
| 3680395C1 |
| 3688614C1 |
| 3688614C2 |
| 3688615C1 |
| 3688616C1 |
| 3688616C2 |
| 3688617C1 |
| 3688729C1 |
| 3688731C1 |
| 3688732C1 |
| 3688733C1 |
| 3737576C1 |
| 3821759C1 |
| 3821760C1 |
| 3892445C3 |
| 4050340C1 |
| 4050340C2 |
| 4164149C1 |
| 4212932C1 |
| 44185931 |
| 58117MB |
| 6127690C1 |
| 65492M |
| 65492M0R |
| 65492MM |
| 66419 |
| 69762 |
| 8160113 |
| 85923 |
| 85931 |
| 85932 |
| 85933 |
| 89453 |
| 89458 |
| 9180153 |
| 925214 |
| A85931 |
| ABPN32G900013 |
| ABPN32O900013 |
| AMS65492 |
| AMS65492MM |
| F347213 |
| F347276 |
| FLS85931 |
| GSX89458 |
| HD12150041 |
| HS85931 |
| M65492 |
| M85923 |
| M85931 |
| M89458 |
| MAE65492 |
| OTR65492 |
| SA5931 |
| SA65492 |
| SMR560410 |
| SSA85923 |
| SSA85931 |
| TR85931 |
| WA0185931 |
Gas-charged, large-bore shock absorber designed for class 6-8 vehicles, compatible with air spring and taper leaf suspensions. Nitrogen gas charge delivers fast response required for modern heavy-duty truck suspension systems, enhancing stability, control, and overall ride performance.
