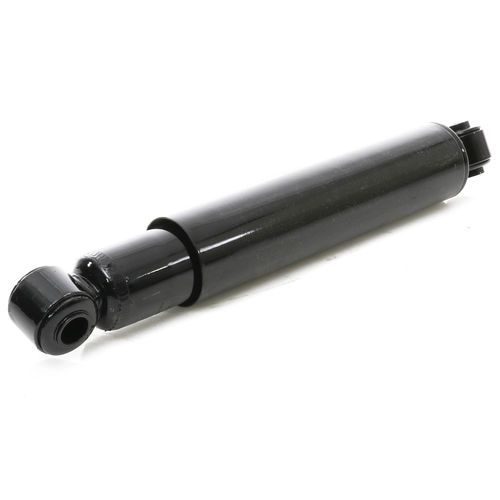

Shock Absorber 15.20" Commercial Steel - A83160
Part#: 6557011
Features and Benefits
- Telescopic product type for accurate identification during service
- Extended length of 24.33" for the shock absorber travel specification
- Collapsed length of 15.20" for the shock absorber compressed dimension
- Body diameter of 2.36" for the shock absorber housing dimension
- End mount type of 360 deg eye ring most applications for the shock absorber mounting configuration
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Part Type | Shock Absorber |
|---|---|
| Grade Type | Commercial |
| Active Or Passive Suspension | Passive |
| Adjustable | No |
| Adjustable Compression | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Bladder Heavy Duty Crimping Rings Included | No |
| Bladder Sleeves Included | No |
| Bladders Included | No |
| Body Color | Black |
| Body Diameter | 2.36 in. |
| Body Material | Steel |
| Boot Included | No |
| Coil Spring Insulators Included | No |
| Compressed Length | 15.20 in. |
| Dust Shield Included | Yes |
| Dust Shield Material | Steel |
| Manufacturing Type | New Aftermarket |
| Series | Fleetline 83 Series |
| Valving | 10-Stage All-Coil Spring |
| Piston Seal | Multi-Lip Piston Rod Seal |
| Extension Stop | Hydraulic |
| End Mount Type | 360° Eye Ring (Most Applications) |
| Bladder Sleeve(S) Included | No |
| Bladder(S) Included | No |
| Coil Spring Insulator(S) Included | No |
| Extended Length | 24.33 in. |
| Gas Charged | Yes |
| Hydraulic Lockout | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Internal Rebound Spring | No |
| Lower Mount Type | Loop (Eyelet) Bushing And Sleeve |
| Mounting Hardware Included | No |
| Remote Reservoir | No |
| Reserve Tube Size | 1.57 in. |
| Shaft Material | Steel |
| Shock Absorber Body End Measuring Point | Center Of Loop |
| Shock Absorber Rod End Measuring Point | Center Of Loop |
| Shock Stroke | 9.13 in. |
| Strut Mount Insulator(S) Included | No |
| Travel Length | 8.62 in. |
| Type | Telescopic |
| Upper Mount Type | Loop (Eyelet) Bushing And Sleeve |
| Interchange |
|---|
| 016003016 |
| 1417.001.31810 |
| 141700000377 |
| 141700000378 |
| 141700131810 |
| 141700131975 |
| 16-16093-000 |
| 16-16737-000 |
| 16-16874-000 |
| 16-18076-000 |
| 1616093000 |
| 1616737000 |
| 1616874000 |
| 1618075000 |
| 1618076000 |
| 315618 |
| 315619 |
| 557011 |
| 83160 |
| A83160 |
| B46-2146M100 |
| B46-2445M100 |
| B462146M100 |
| B462445M100 |
| HD1215-0118 |
| HD12150118 |
| M557011 |
| Year | Make | Model | Engine |
|---|---|---|---|
| 2007 | FREIGHTLINER | XC STRAIGHT RAIL CHASSIS | |
| 2006 | FREIGHTLINER | XC STRAIGHT RAIL CHASSIS | |
| 2005 | FREIGHTLINER | XC STRAIGHT RAIL CHASSIS | |
| 2004 | FREIGHTLINER | XC STRAIGHT RAIL CHASSIS | |
| 2003 | FREIGHTLINER | XC STRAIGHT RAIL CHASSIS |
The Shock Absorber is engineered for reliable suspension damping on Heavy Duty commercial vehicle applications. Designed as a direct replacement, the part delivers consistent performance and dependable results across a wide range of fleet configurations. The component meets OEM specification.
