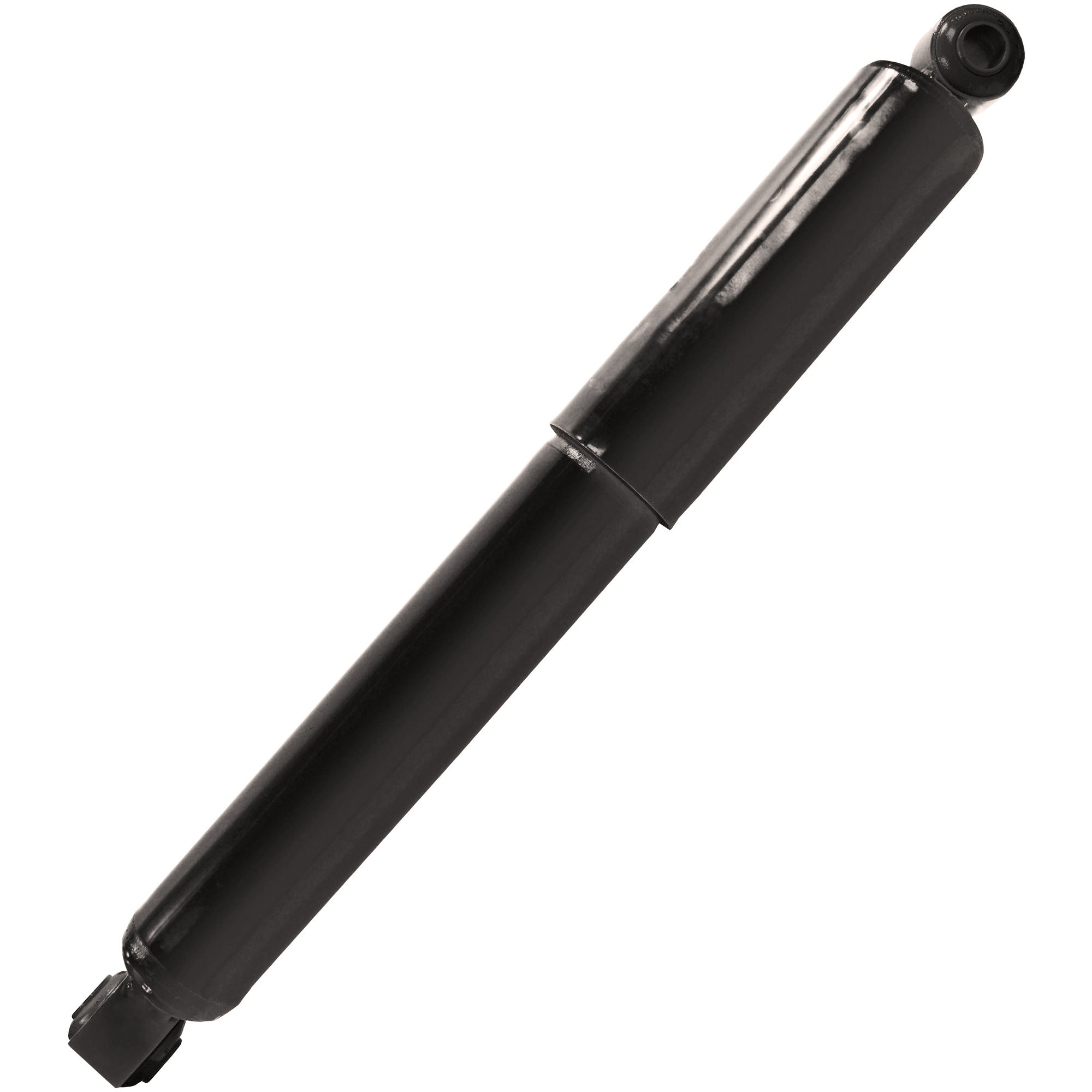

Front Shock Absorber Black 22.12" Gas Charged - 65503
Part#: 2M061-8923
Features and Benefits
- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
- Nitrogen gas charge maintains tire to road contact for improved ride and handling by reducing aeration and shock fade
- Robust hydraulic lock out prevents over extension of air bags top out of the piston and averts damage to seal assembly most applications
- 10 Stage valving tuned specifically to each vehicle adjusts to road extremes while larger 1-3/4 in. bore provides more efficient damping control to provide consistency and a smooth ride most applications
- All weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8 in. reserve tube holds more fluid to improve performance most applications
Warranty
Up to 3 years warranty
Please contact customer service to know more details
| Color | Black |
|---|---|
| Mounting Hardware Included | No |
| Extended Length (IN) | 22.125 |
| Extended Length (MM) | 562 |
| Lower Mount Type | Loop Bushing And Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL |
| Lower Mount Type_2 | Loop (Eyelet) Bushing And Sleeve |
| Upper Mount Type | Loop Bushing And Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL |
| Gas Charged | Yes |
| Compressed Length (IN) | 14.2969 |
| Compressed Length (MM) | 363.10000000000002 |
| Travel Length (IN) | 7.82813 |
| Travel Length (MM) | 198.80000000000001 |
| Shock Absorber Rod End Measuring Point | Center Of Loop |
| Shock Absorber Body End Measuring Point | Center Of Loop |
| Body Color | Black |
| Grade Type | Premium |
| Cylinder Color | Black |
| Adjustable Rebound | No |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Includes Bump Stop | No |
| Upper Mount Code | LS54 |
| Lower Mount Code | LS54 |
| Hydraulic Lockout | Yes |
| Internal Rebound Bumper | No |
| Adjustable Compression | No |
| Adjustable Ride Height | No |
| Active or Passive Suspension | Passive |
| Cylinder Finish | Painted |
| Interchange |
|---|
| 1011728 |
| 1083207 |
| 1085919 |
| 1139059MTM |
| 1340976MTM |
| 13424ADV |
| 140102 |
| 1410046MTM |
| 1429317MTM |
| 15222 |
| 1617759000 |
| 1620632000 |
| 16775 |
| 177145 |
| 202447 |
| 2024477 |
| 203447 |
| 227856 |
| 25631275 |
| 2M9347 |
| 311631 |
| 315403 |
| 316488 |
| 341632 |
| 3588824C3 |
| 3HR916MTM |
| 40015 |
| 410048 |
| 44185919 |
| 471700000000 |
| 471700000447 |
| 471700000450 |
| 472000000000 |
| 4790211 |
| 481700000000 |
| 481700131438 |
| 481700131440 |
| 482000000000 |
| 50092 |
| 503610C1 |
| 5170591614 |
| 53066 |
| 543565503 |
| 59483000 |
| 600327 |
| 60665005 |
| 60665005L |
| 60665020 |
| 60665020L |
| 60670002 |
| 60670002L |
| 60998002 |
| 60998002L |
| 650503MG |
| 654890 |
| 65503MM |
| 671009 |
| 671603 |
| 671907 |
| 671933 |
| 680234 |
| 680280 |
| 680672 |
| 69515 |
| 69711 |
| 710020941 |
| 74429 |
| 7805M1001 |
| 7805X1012 |
| 7HS534MTM |
| 801175634 |
| 80174 |
| 8180172 |
| 825446 |
| 830176 |
| 83207 |
| 85919 |
| 86683294 |
| 881642 |
| 89407 |
| 90045002 |
| 90045099 |
| 925182 |
| 98005228 |
| 9HE302 |
| A3280M9711 |
| A68217 |
| A7805L1000 |
| A85919 |
| ABPN32G900075 |
| ABPN32O900075 |
| AMS65503 |
| E1313 |
| F347224 |
| F347232 |
| F65503 |
| GAB85919 |
| HD12150079 |
| HS85919 |
| JT46485 |
| KG6006 |
| L958 |
| M15103 |
| M1880 |
| M65503 |
| M85919 |
| MAE65503 |
| MBW227856 |
| MER202447 |
| MG202447 |
| MTR85919 |
| OTR65503 |
| PROSH85919 |
| R301313 |
| SA1710 |
| SA65503 |
| SR1JA102 |
| SSA85919 |
Gas-charged, large-bore shock absorber designed for class 6-8 vehicles, compatible with air spring and taper leaf suspensions. Nitrogen gas charge delivers fast response required for modern heavy-duty truck suspension systems, enhancing stability, control, and overall ride performance.
